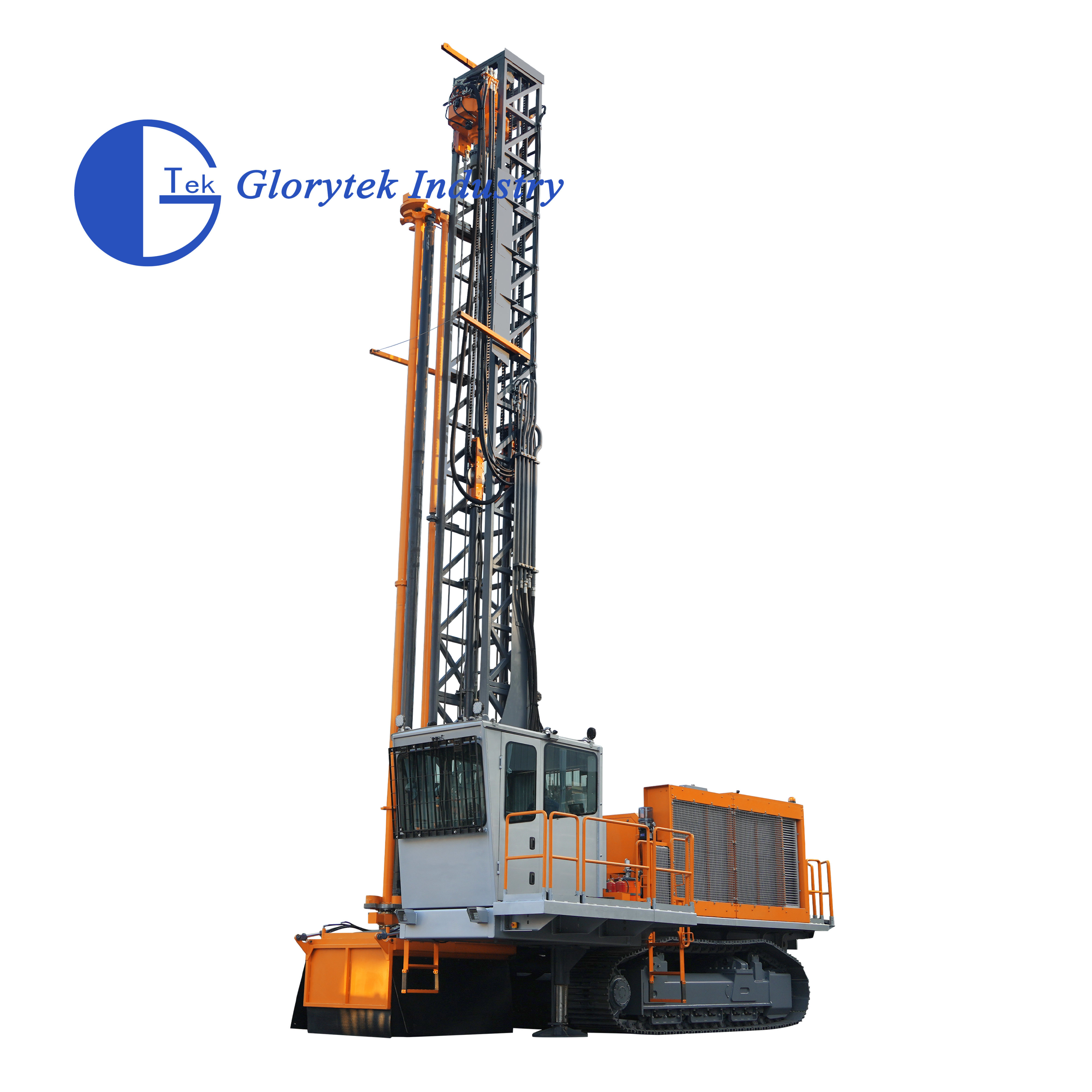

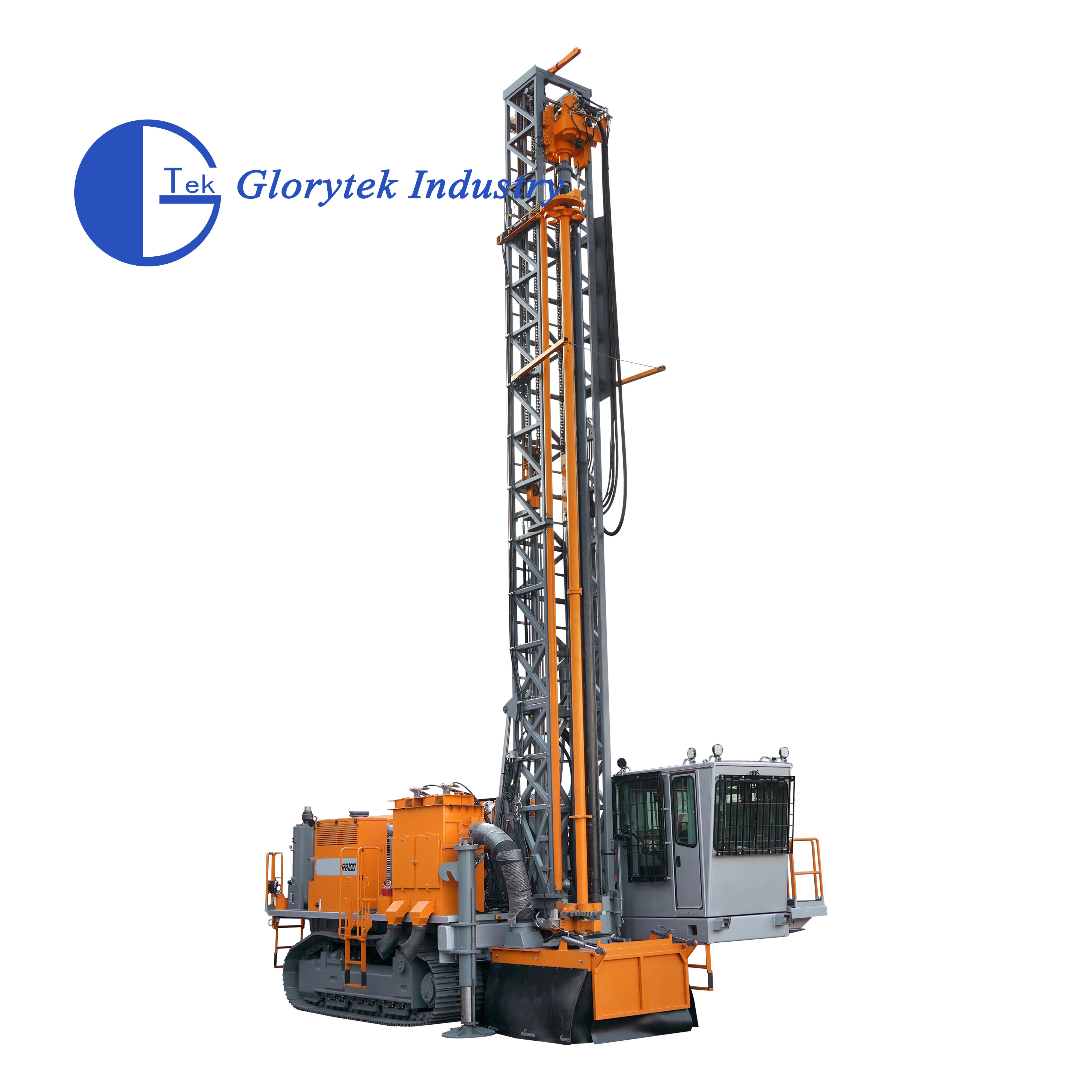

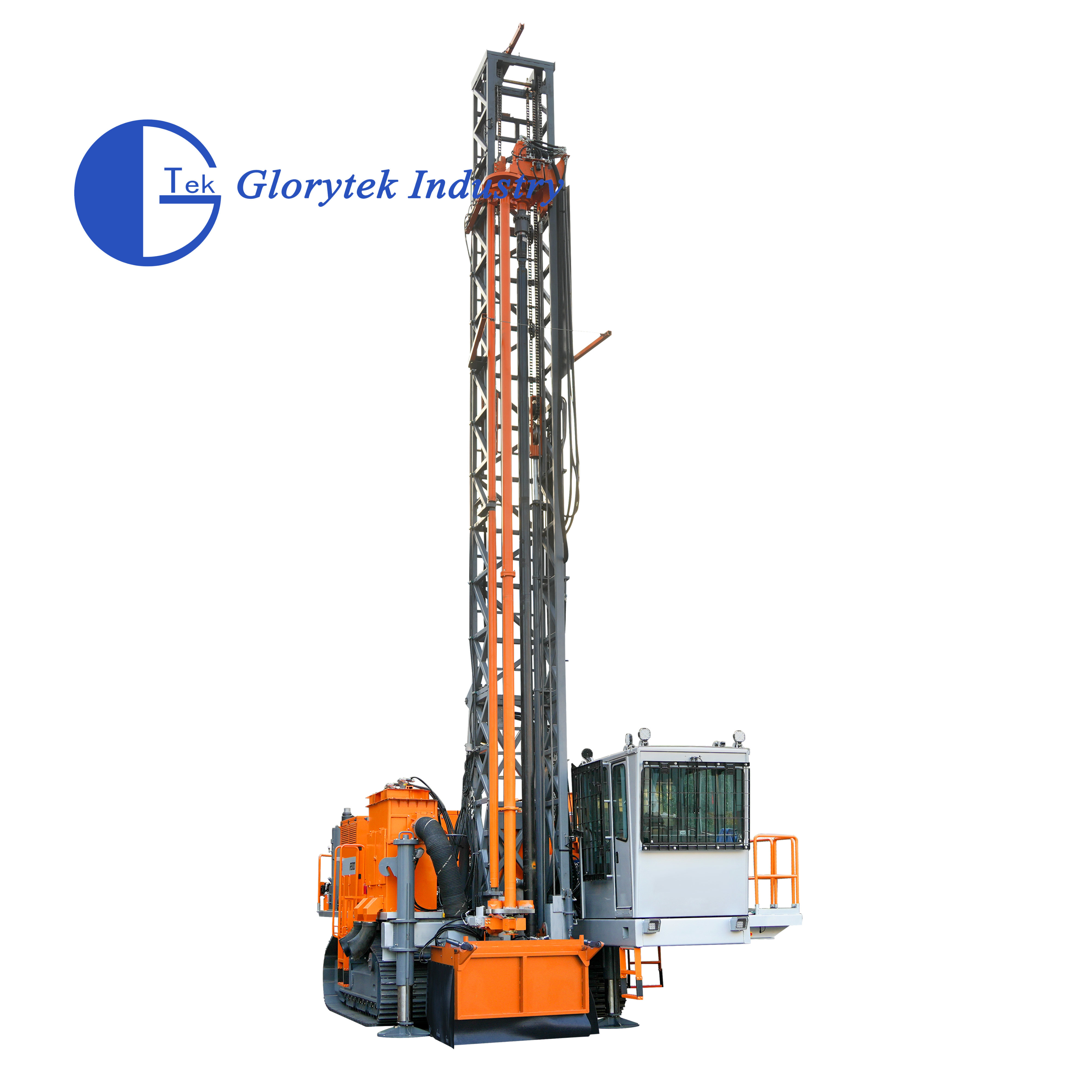

R8100 Surface Integrated Rotary Drill Rig MAX Depth 62.5M

Safe & reliable
Cab: A spacious and comfortable safe cab which is ROps and FOPS approved, meets ergonomic requirements and delivers a scientific and comfortable driving experience, The seat with adiustable position is equipped with air-cushion shock absorption; Low noise and good visibility for drilling and collaring activities.

Guardrait: The drill rig top is equipped with guardrail and anti-slip stickers ensuring the safety of maintenance and service personnel; Meanwhile, the drill boom is also equipped with guardrails against drill rod fall-prevention.

Remote control: The product can be optionally equipped with a short-range remote control function, allowing operators to flexibly control drilling operations within a range of 100 meters, reducing risks during highwall mining or while getting on/off transportation vehicles.

High Productivity and flexible
Single engine:A single power unit simultaneously drives the operations of hydraulic system and screw ar end, improving the space utilization of the equipment while reducing energy consumption and maintenance costs

Long drill rod: drill rod configurations vary from3m, 4m, 5m, 6m, 7m, 9m and 10.7m, maximumly reducing the time of rod changing and enhancing the productivity.

Multi hole size: The heavy-duty reinforcement design within the functional range enables the equipment to simultaneously meet the rock driling applications under diferent working conditions and with different hole size.

Energy-saving and environment friendly

Dust collection capability: Based on diferent environmental conditions and customer needs, we provide such diferent solutions as dry dust collection, wet dust collection,and dry and wet mixed dust collection to meet the highest environmental reguirements.

Eficient air end: Excelent desien and manuiacturing technology of screw air end ensures drill rigs to obtain more energy-efficient high-pressure air power.

Controlsystem: The self-sensitive adiustment system meets the power requirements of drill rigs in various operating states at all times, while consuming the lowest energy during auxiliary operations of drill rigs.

Personalization

Remote control: Operators and equipment managers can easily access operational data of the equipment, making production scheduling and maintenance easier

Customization: We can provide customized designs for customers based on different working, conditions, environments, regulations and other special requirements.

Adaptability: Offer correspondingsolutions such as extreme cold climate kit, tropical desert kit, hieh altitude kit or hieh humidity kit for extreme working environments tomeet the needs of different regions around the world.


Technical Parameters:



Hole range:	φ 149 -270 mm
Drill pipe handling capacity:	5+1
Drill pipe diameter:	178/159/140 mm
Drill pipe length:	10,700 mm
Maximum hole depth:	62.5 m
DTH hammer:	10"
Rotation torque:	11,800 N.m
Rotation rpm:	0 - 160 rpm
Fuel tank capacity:	2,700L
Diesel engine:	QSK19-C800/CATC 18
Rated power:	597 kW (800 hp ) ,1,800 rpm/571kW(770hp)2,100rpm
Emission standard:	China III
Capacity:	2,700 L
Maximum working pressure:	24 bar /8 bar
Capacity FAD:	43 m3 / min / 54m³ / min
Transport dimensions(w/o options), approx.
Weight:	60,000 kg
Length:	15,600 mm
Width:	5,443 mm
Height:	5,962 mm

Applications:
