Xy-3 600m Depth Exploration Diamond Core Drill/Drilling Rig

Xy-3 600m Depth Exploration Diamond Core Drill/Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: XY-3
Payment & Shipping Terms
Payment Terms: T/T
Product Description

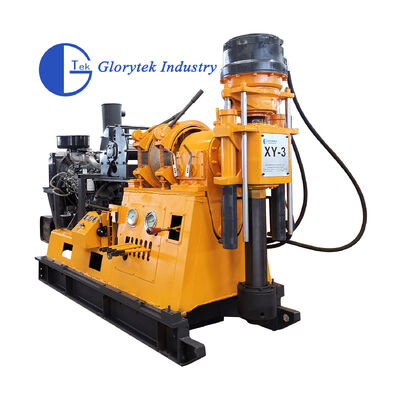

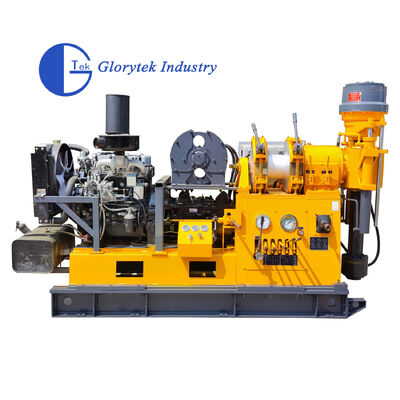

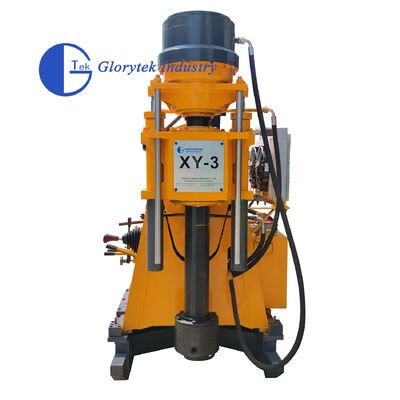

XY-3 600m Depth Exploration Diamond Core Drill/Drilling Rig
XY-3 Core Drilling Rig is a shallow/medium depth hole spindle type core drilling rig designed for diamond drilling operations. This versatile machine can accommodate various drilling technology requirements and is available with electric motor or diesel engine power units. The rig features a simple structure and user-friendly operation.
Key Features
  • Equipped with MW525 heavy truck transmission featuring 10 forward gears and 2 reverse gears for optimal speed range and drilling technology compatibility
  • 96mm spindle inner diameter with mechanical drive system capable of high torque output
  • Winch capacity: 3000kg maximum single line lifting capacity
  • Ergonomically designed control handles for convenient operation
  • Independent operation of spindle and winch
  • Large spindle borehole accommodates big hexagonal drilling rods
Applications
  • Geological investigation and exploration
  • Road and building foundation exploration
  • Concrete structure investigation holes
  • River levee and subgrade grouting hole drilling
  • Direct grouting operations
  • Civil wells and earth central air conditioning wells
  • Shallow and medium depth core drilling
Technical Specifications
Drilling Depth 100, 250, 300, 600m
Corresponding End Hole Diameter 300, 200, 150, 75mm
Maximum Open Hole Diameter 300mm
End Hole Diameter 75mm
Drilling Rod Diameter 60mm
Drilling Angle 90°~65°
Machine Dimensions 2500 x 900 x 1800mm
Drill Weight (with power) 1800kg
Spindle Specifications
Spindle Speed Forward Low: 30, 53, 88, 145, 222r/min
Forward High: 143, 250, 414, 684, 1050r/min
Reverse: 29, 137r/min
Spindle Stroke 600mm
Spindle Inner Diameter 96mm
Lifting Capacity 6000kg
Winch Specifications
Maximum Single Line Lifting Capacity 3000kg
Maximum Single Line Lifting Speed 0.5-1.9m/s
Wire Rope Caliber 12.5mm
Roller Capacity 50m
Reel Diameter 300mm
Hug Foldgate Belt Width 90mm
Gear Oil Pump Specifications
Duplex Gear Oil Pump CBF-F63/25
Front Displacement, Pressure 63 L/min, 20Mpa
Behind Displacement, Pressure 25 L/min, 20Mpa
Power Unit Specifications
Diesel Engine YN27
Power Output 42kW
Rated Speed 2400r/min
XY-3 Diamond Core Drilling Rig - Professional industrial drilling equipment
