GL300 Portable Core Drilling Rig For Geological Exploration

1
MOQ
Negotiable
Price
GL300 Portable Core Drilling Rig For Geological Exploration
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL300 Portable Core Drilling Rig For Geological Exploration
Keyword: Portable Diamond Core Drill Rig
Depth: 300m
Hole Diameter: BTW,NTW, HTW
Diesel Engine: 33kw
Highlight:

GL300 portable core drilling rig

,

geological exploration drilling rig

,

portable drilling rig for exploration

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGE, TUV
Model Number: GL300E
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 50 sets/month
Product Description

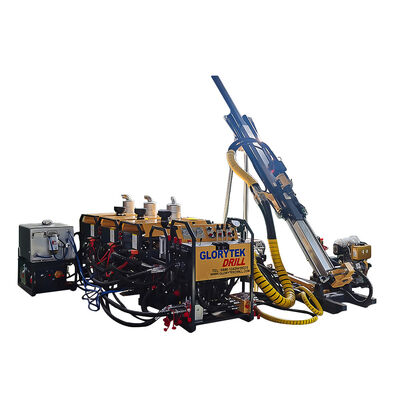

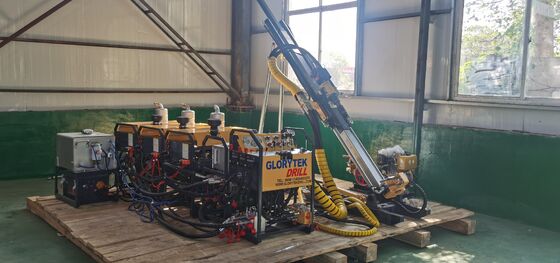

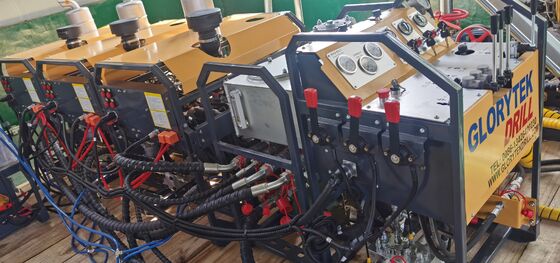

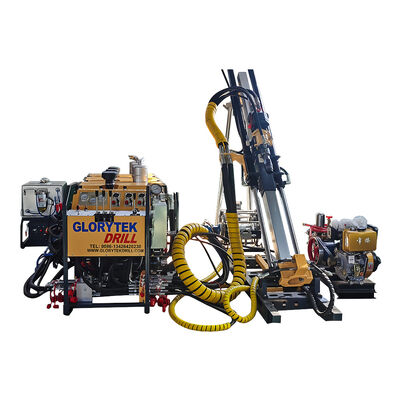

GL300 Portable Core Drilling Rig For Geological Exploration


Description:

GL300 Portable Core Drilling Rig For Geological Exploration

GL300 series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.


The main structure of the lightweight core drilling rig is made of high-strength aluminum alloy material, which greatly reduces the weight of the machine while ensuring the strength and toughness. The maximum module weight is only 180Kg, which is convenient for manual handling on site.

Tehnical Parameter:


Model GL300
Drilling Depth
BTW 300m
NTW 200m
HTW 100m
Note: The drilling depth is based on the theoretical value, and the specific drilling depth capability is determined by the actual working conditions and process methods
Dynamic System Engine Model Kubota V1505 - T / Chinese
Engine
Electric Motor Model Stepless Speed Regulating Servo
Motor
Rated Power 33Kw x1 / 30kw x 1
Rated Speed 3000 Rpm / 2000 Rpm
Hydraulic System Control Form Multi-pump combined flow and constant flow distribution system
System Pressure 210 Bar
Max Flow Rate  65 L/Min
Cooling  Water Cooling
Hydraulic Tank Capacity  60L
Features:

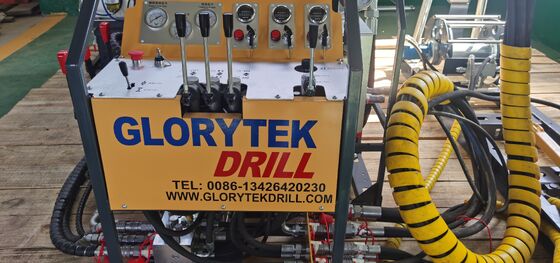

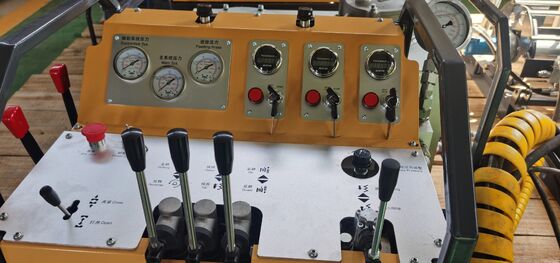

1. The portable drilling rig adopts the power system integrated control technology, and realizes the control of all engines on the console;

2. The clamp has a pressure loss protection function, which is safe, reliable, and responds quickly to prevent accidental detachment.

3. The unique adjustable sliding gap function of the power head keeps the close contact between the mast rail surface and the carriage, eliminates drilling vibration, and ensures drilling coaxiality.


Related Products


GL300 Portable Core Drilling Rig For Geological Exploration



Customer Visting

GL300 Portable Core Drilling Rig For Geological Exploration

Company Profile

GL300 Portable Core Drilling Rig For Geological Exploration

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.



FAQ
Q: How can we choose a suitable core drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
