Name: C2500T 2500m Deep Full Hydraulic Wireline Core Drilling Rig
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Core Drilling Rig

MOQ: 1set

Brand: Glorytek

Rated Pressure: 31.5 MPa, Air Cooling

Hyd Pumps/Hydraulic Motor: Danfoss, Rexroth

Power Head: Through- Hole Power Head

Mud Pump /Max Pressure: 10MPa

Mud Pump/Max Flow: 320L/min

Highlight:

2500m deep wireline core drilling rig

full hydraulic wireline drilling rig

C2500T exploration drilling rig

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 25-35days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 100 piece per month

Gallery

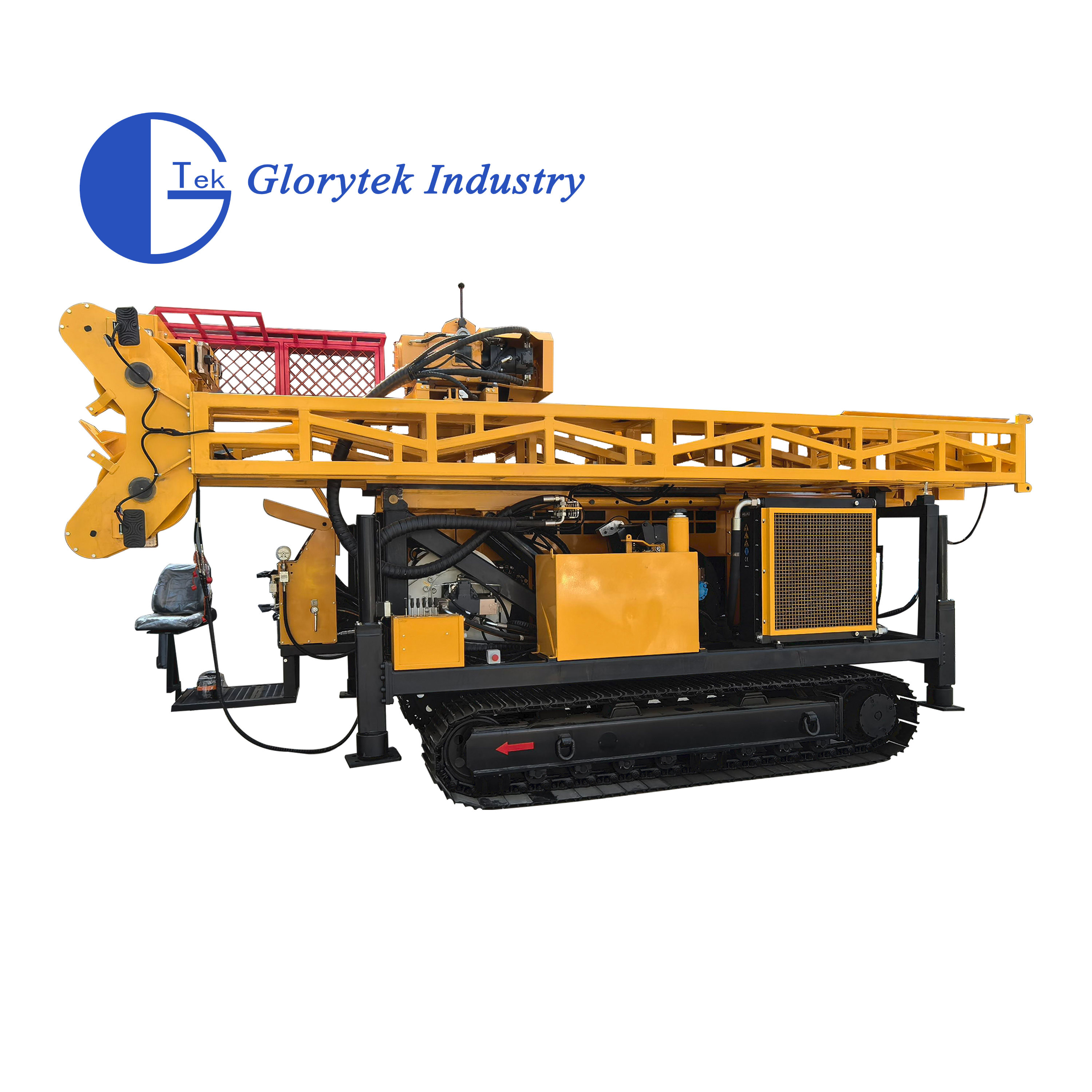

C2500T 2500m Deep Full Hydraulic Wireline Core Drilling Rig

Product Description

Full hydraulic core drilling rig

Product Description

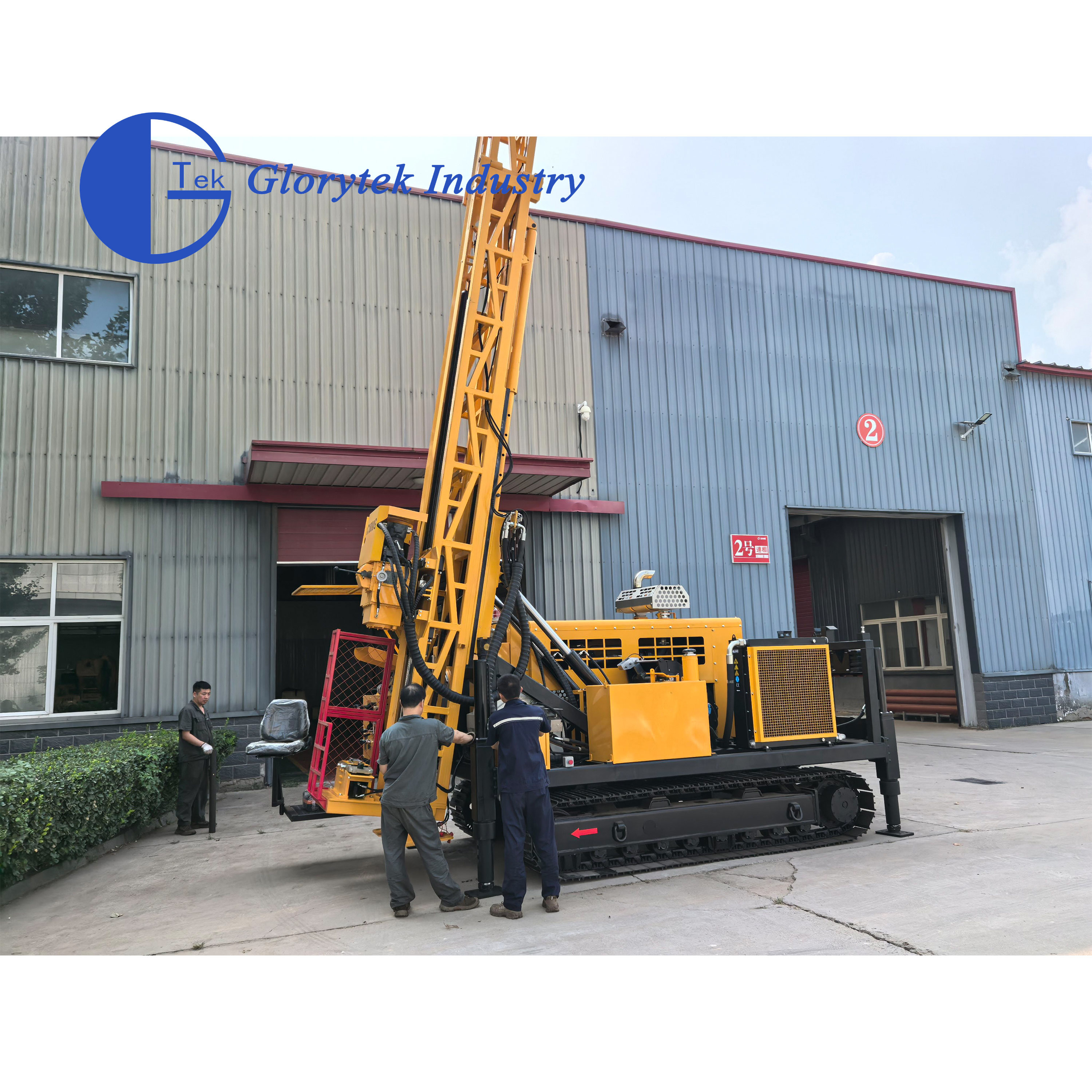

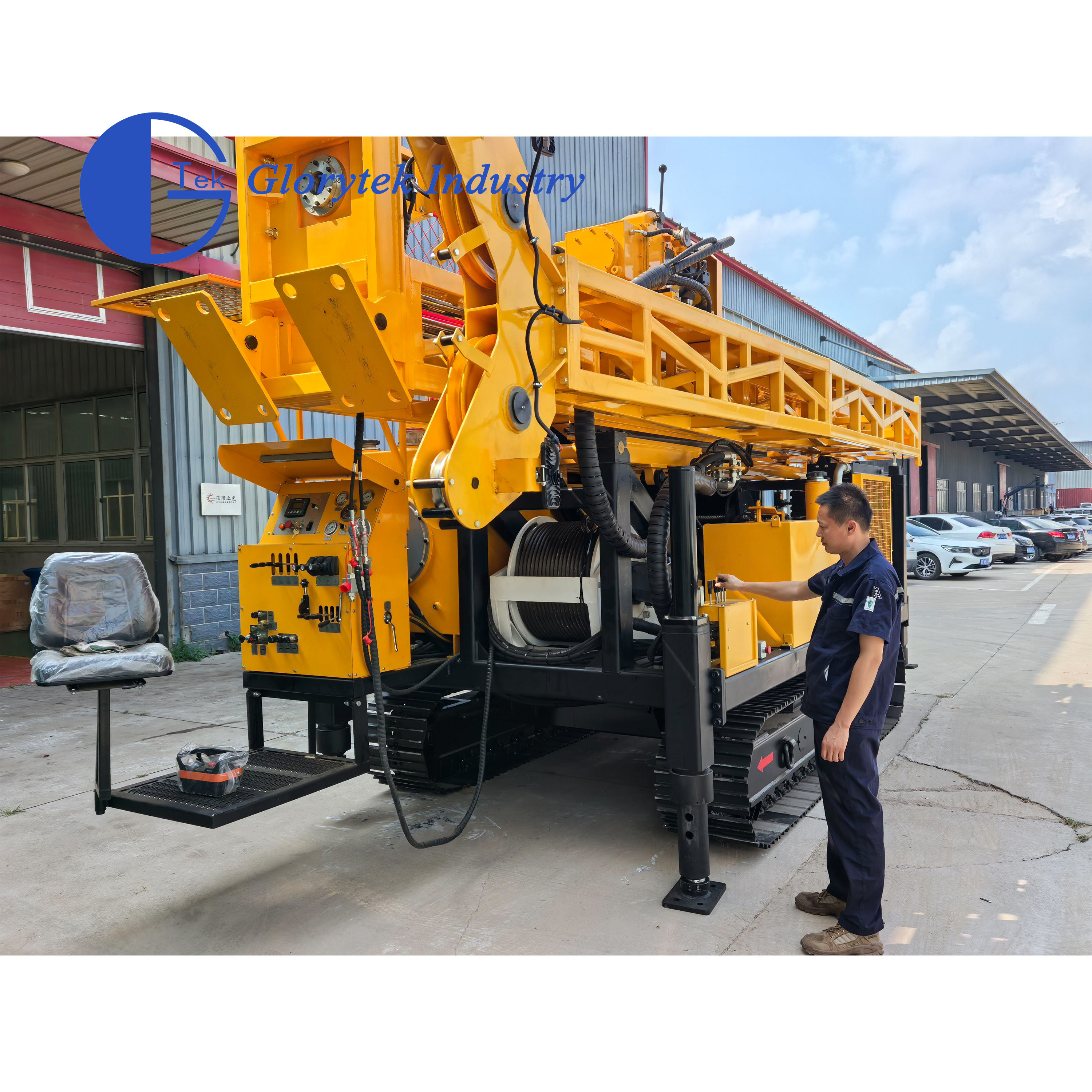

The C2500T is a high-performance full hydraulic core drilling rig designed for deep-hole drilling and demanding geological exploration applications. Equipped with a through-hole power head, the rig provides excellent drilling flexibility and is suitable for wireline coring operations with BQ, NQ, HQ, PQ and other drill rods.

The C2500T features both a main winch and wireline winch, providing efficient drill rod handling and reliable lifting performance during deep drilling operations. Its hydraulic system uses high-quality components from renowned brands such as Danfoss and Rexroth, together with reliable hydraulic control valves for stable and precise operation.

Powered by a Cummins engine, the C2500T delivers strong and dependable power for demanding drilling conditions. With its robust crawler chassis, high torque power head and professional hydraulic system, the C2500T is an ideal choice for deep mineral exploration, geological investigation and other challenging core drilling projects.

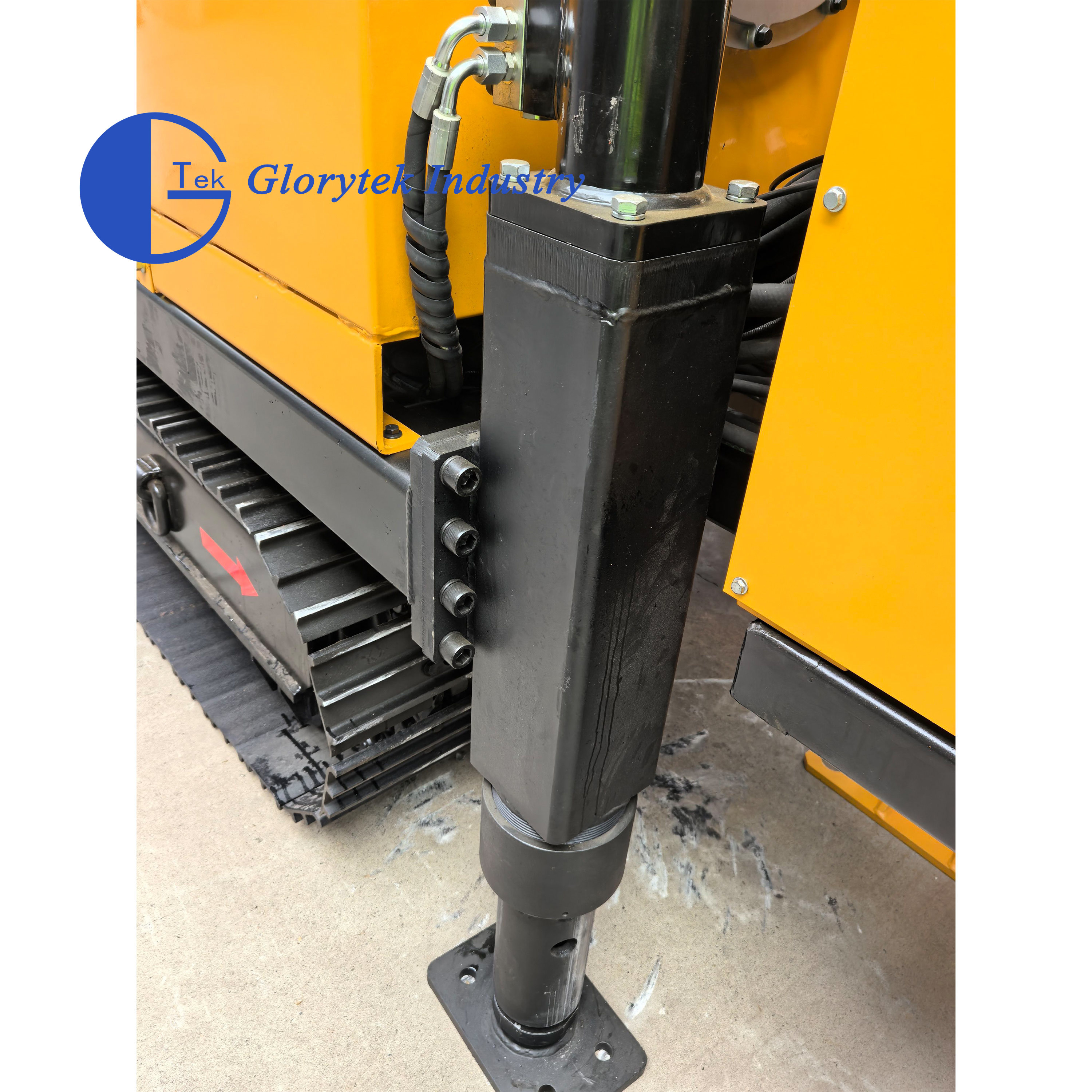

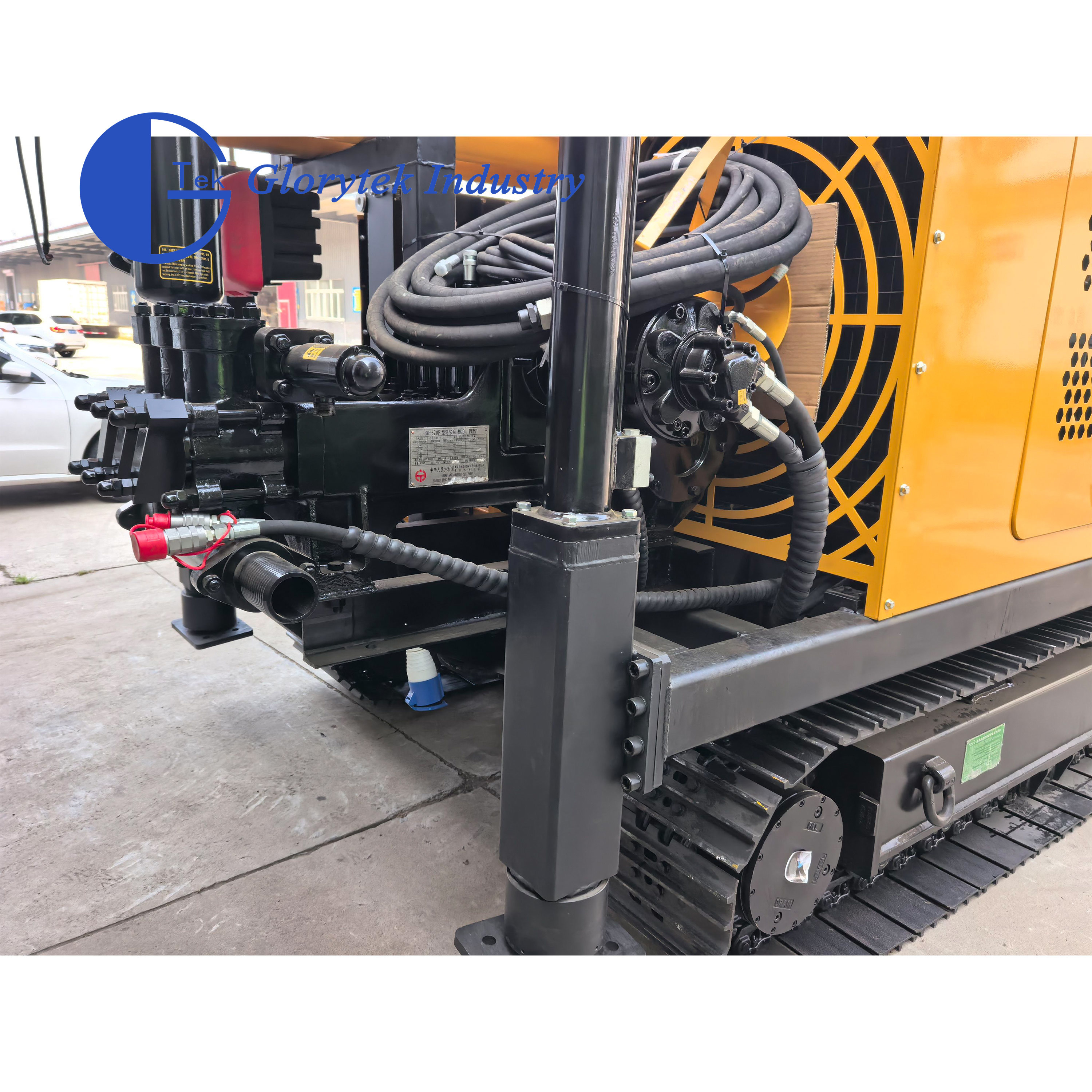

Pictures

Technical Parameters

C2500T SPECIFICATION
Drilling Depth(Reference)		Wireline Winch
Rod	Depth (m)	Max Pull	25kN(/bare drum)
NQ(71mm)	2,500	Pulling Speed	280m/min
HQ(89mm)	1,800	Rope Diameter	7mm
PQ(114mm)	1,000	Rope Length	2,500m
Engine Power		Mast
Model:Cummins QSL8.9-C325		Length	13m
Power 239kW		Drilling Angle	45-90°
Engine Rpm 2,200		Dump Length	1.7m
Air Cooling,Turbo Charged		Rods Pulling	9m (max)
Motor Power(S)	160kW

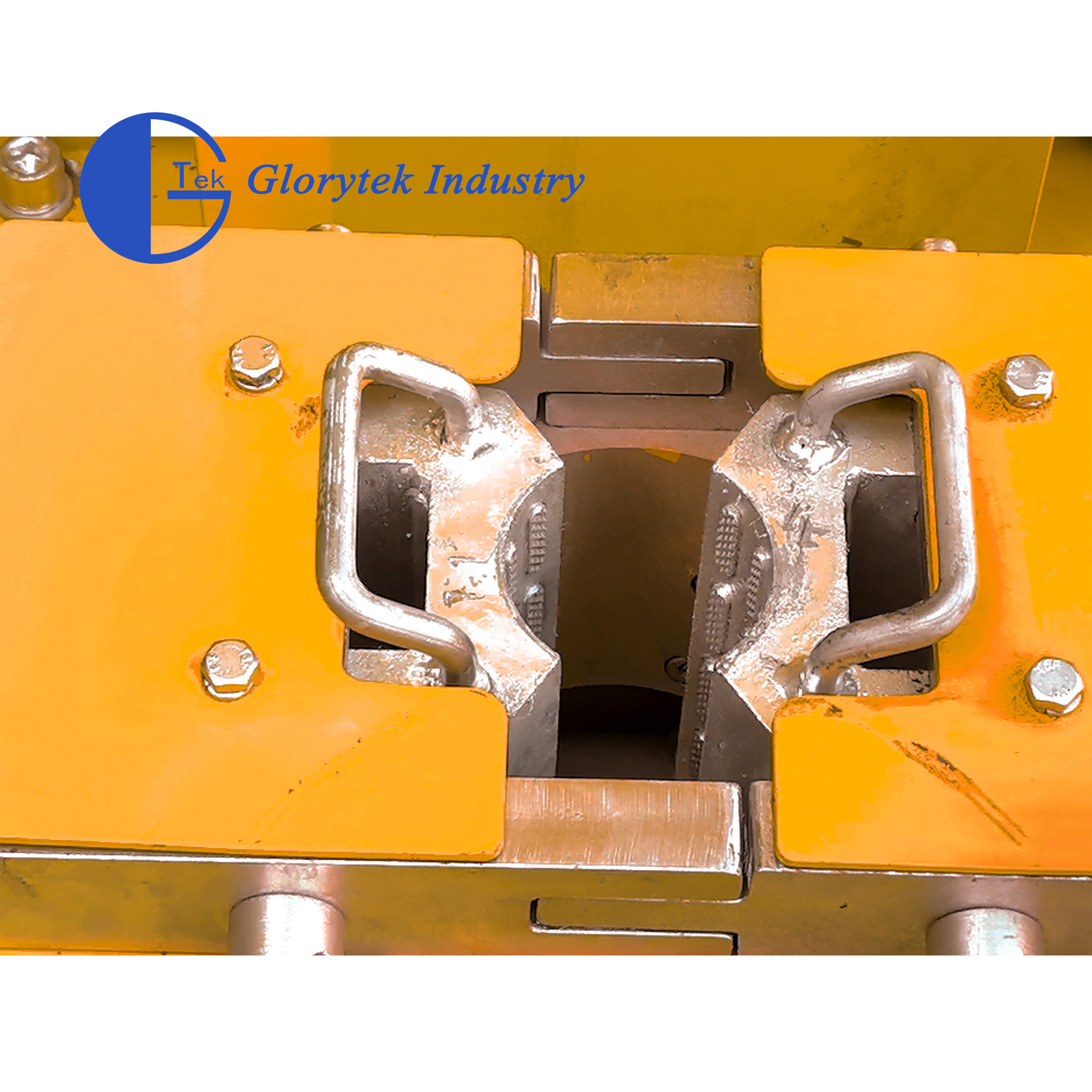

Hydraulic System		Foot Clamp
Rated Pressure: 31.5 MPa, air cooling		Rods Applied	BQ, NQ, HQ, PQ Etc

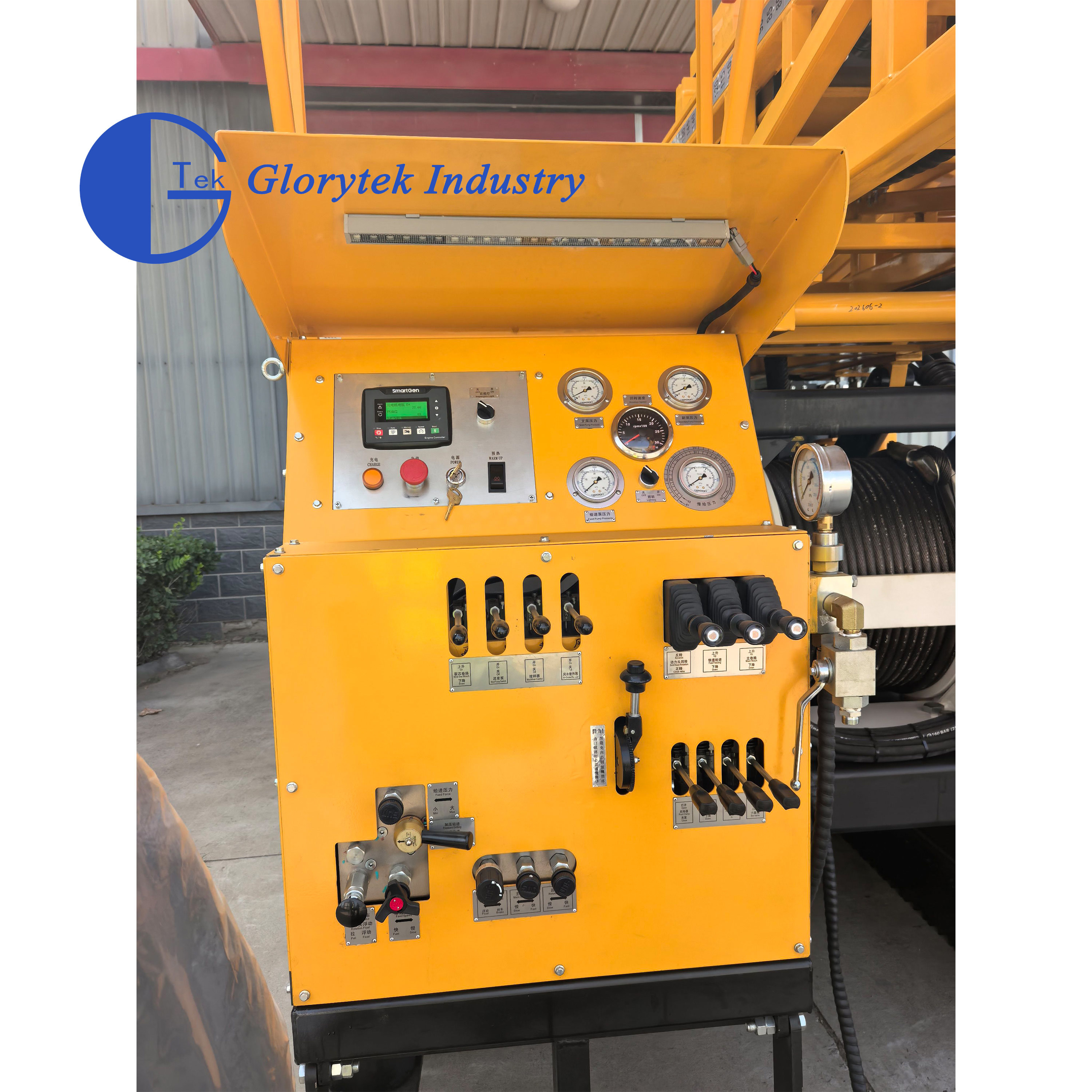

Main valve: HAWE, others SUN, Hydraforce		Mud Pump
Hyd Pumps/Hydraulic Motor: Danfoss, Rexroth		Model: BW320
Power Head		Max Pressure: 10MPa
Through-Hole Power Head		Max Flow: 320L/min
Max Torque	9,700Nm	Crawler Move

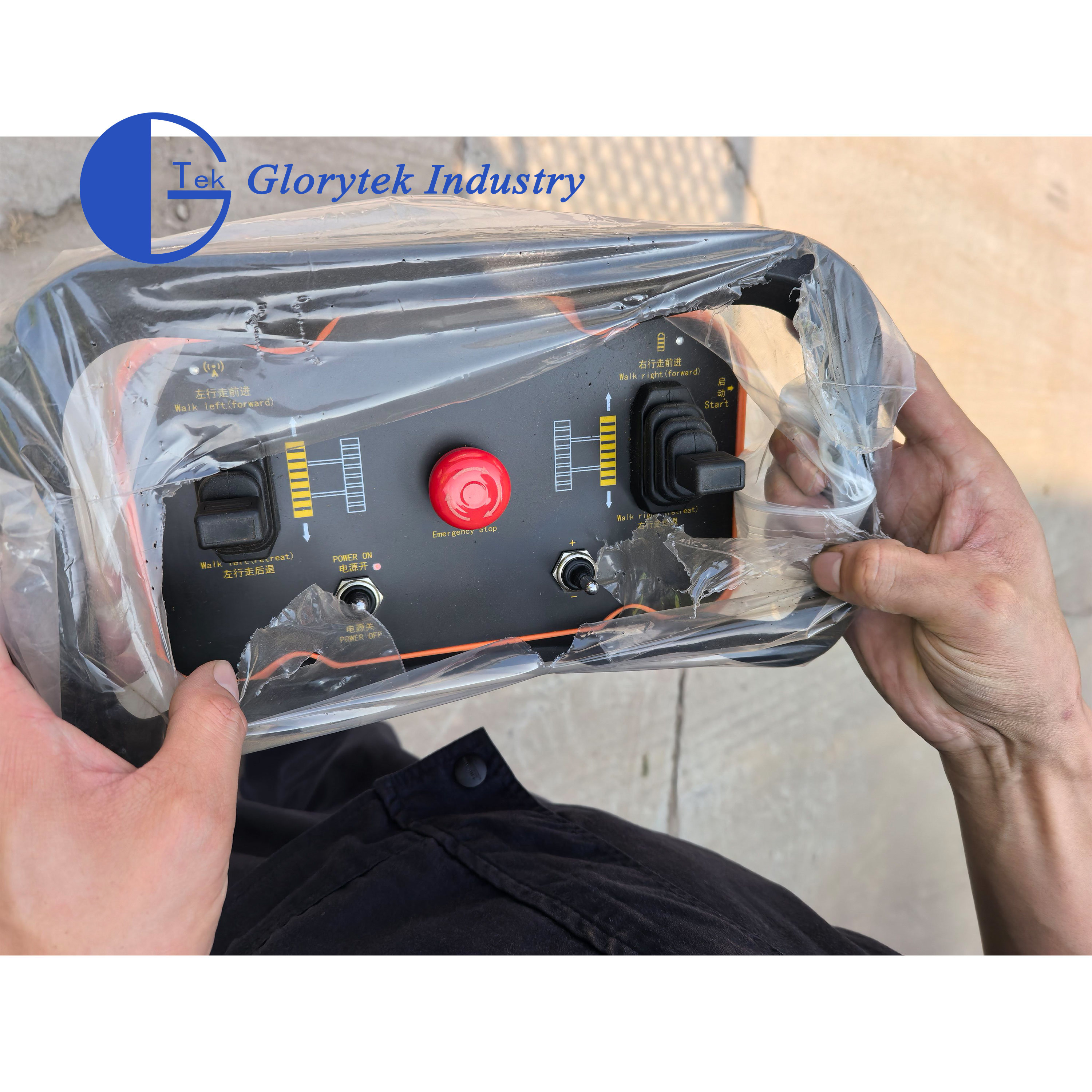

Max Rotation ,RPM	1,200rpm	Control Mode: wireless remote control and hyd lever control as spare
Feed Stroke	3,300mm
Max Pull	310kN
Max Push	125kN
Drilling Angle	45-90°	Max Angle: 30°
Rotation Motor	Rexroth	Max Speed: 3km/h
Main Winch		Dimensions&Weight
Max Pull	210kN(bare drum)	Dimensions in transportation:7,700x2,300x3,240mm
Pulling Speed	83m/min
Rope Diameter	22mm	Gross Weight: 17.5t
Rope Length	42m

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
