Name: E5 Full Hydraulic Core Drill Rig, Remote Controlled Track Mounted Drill/Drilling Rig
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: Glorytek

MOQ: 1set

Drilling Depths: 1530M

Drilling Diameter: BQ,NQ,HQ,PQ

Feed Stroke: 3.5 M

Pull Force: 138 KN

Drilling Angle: Vertical Down To 45 ° Below Horizontal

Engine Model: Cummins China Stage III, Displacement 6.7 L

Power: 153 KW

Max Torque: 5220 N·m

Highlight:

Full hydraulic core drill rig

Remote controlled drilling rig

Track mounted exploration drill

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 25-35days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 100 piece per month

Gallery

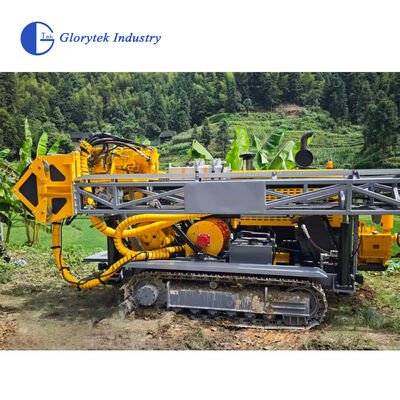

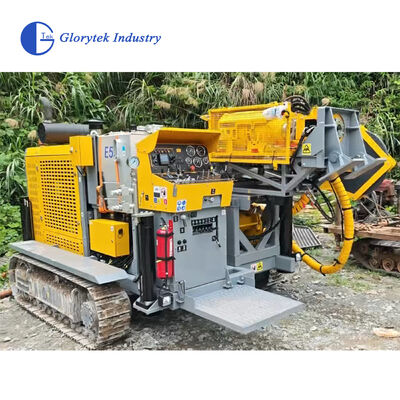

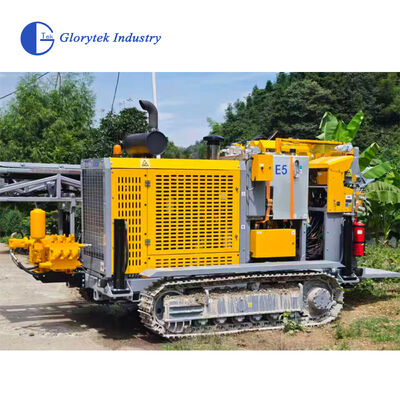

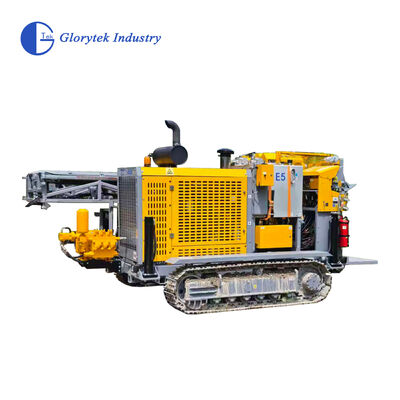

E5 Full Hydraulic Core Drill Rig, Remote Controlled Track Mounted Drill/Drilling Rig

Product Description

Full Hydraulic Core Drilling Rig

Product Description

E5 Core Drill Rig: High-Performance & Remote-Controlled

The Glorytek E5 is a full-hydraulic, track-mounted core drill rig engineered for high-efficiency open-pit exploration. Designed for superior mobility and control, it features a wireless remote-controlled crawler system capable of navigating challenging terrain with a 30° climbing angle.

Powered by a reliable 153 kW Cummins engine, the E5 delivers exceptional performance with a maximum torque of 5220 N·m. It is built for deep-hole applications, achieving nominal drilling depths of up to 1530m (BQ), 1200m (NQ), 800m (HQ), and 400m (PQ).

Key features include a 3.5m feed stroke, a lateral sliding power head for enhanced rod handling, and a robust hydraulic system. Its compact transport dimensions and integrated control console make the E5 a versatile and powerful solution for modern mineral exploration and geological surveying.

Pictures

Technical Parameters

E5 Core Drill Rig — Technical Specifications
Glorytek Industry (Beijing) Co., Ltd.
Specification	Value
2.1 Nominal Core Drilling Depths
BQ	1530 m
NQ	1200 m
HQ	800 m
PQ	400 m
2.2 Main Winch
Hoisting pull	80 kN
Hoisting speed	44 m/min
Wire rope capacity	27 m x 16 mm
2.3 Wireline Winch
Hoisting pull (single line, empty drum)	9.7 kN
Hoisting pull (single line, full drum)	2.4 kN
Hoisting speed (empty drum)	138 m/min
Hoisting speed (full drum)	533 m/min
Wire rope capacity	1500 m x 6 mm
2.4 Mast and Feed System
Feed stroke	3.5 m
Feed speed	Fast and slow, with 4-speed variable control
Feed force	59.6 kN
Pull force	138 kN
Drilling angle	Vertical down to 45° below horizontal
Drill rod pull-up length	6.09 m
2.5 Power Unit
Engine model	Cummins China Stage III, displacement 6.7 L
Power	153 kW
Speed	1800 rpm
Engine type	Turbocharged aftercooled electronically controlled diesel engine
Cooling	Water-cooled
Electrical system	24 V
2.6 Hydraulic System
Main pump	31 MPa - 242 L/min
Secondary pump	20 MPa - 122 L/min
Auxiliary pump	21.5 MPa - 47 L/min
Hydraulic oil cooler	Air-cooled
2.7 Power Head
Drive	Gear transmission with variable speed / reversible hydraulic motor
Spindle through-hole diameter	126 mm
Max torque	5220 N·m
Max speed	1300 rpm
2.8 Chuck Assembly
Type	Hydraulically opened, nitrogen spring closed
Max inner diameter	126 mm
Clamping capacity	178 kN
2.9 Drill Rod Clamp
Type	Hydraulically opened, pneumatic spring closed, normally closed
Max opening	152 mm
Max drill rod clamping diameter	114 mm
Clamping capacity	300 kN
2.10 Rig Undercarriage
Outriggers	Four hydraulic outriggers for quick leveling
Pad diameter	220 mm
Cylinder stroke	550 mm
2.11 Self-propelled Crawler System (RRC)
Control	Wireless remote control
Max travel speed	3.3 km/h
Track shoe width	300 mm
Max climbing angle	30°
Weight	9000 kg
Transport dimensions	5420 mm x 2600 mm x 2300 mm

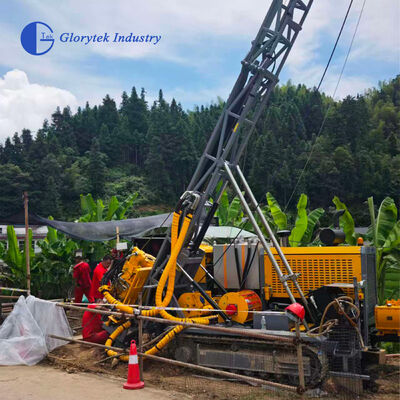

Working Condition

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
