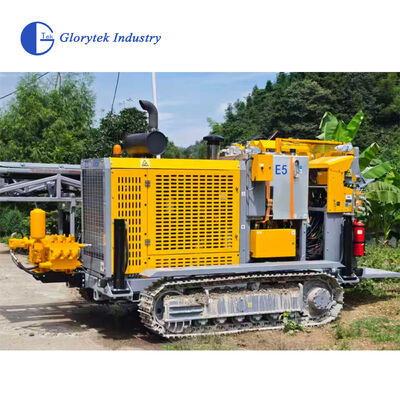

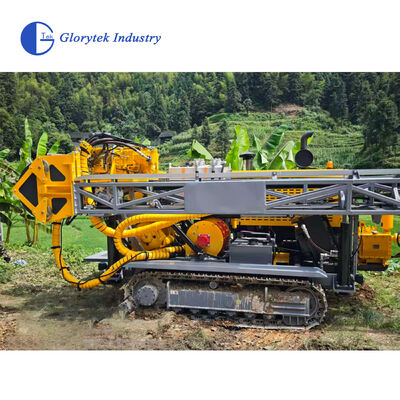

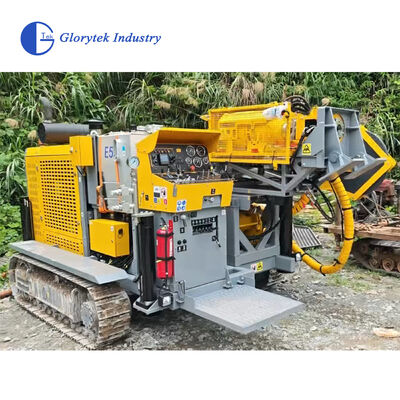

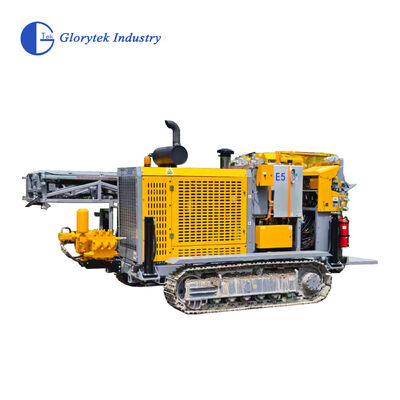

E5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW Engine

1 set
MOQ
Negotiable
Price
E5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: Glorytek
MOQ: 1set
Drilling Depths: 1530M
Drilling Diameter: BQ,NQ,HQ,PQ
Feed Stroke: 3.5 M
Pull Force: 138 KN
Drilling Angle: Vertical Down To 45 ° Below Horizontal
Engine Model: Cummins China Stage III, Displacement 6.7 L
Power: 153 KW
Max Torque: 5220 N·m
Highlight:

E5 hydraulic core drilling rig

,

remote controlled exploration drill rig

,

Cummins engine core drill rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE and others
Model Number: option
Payment & Shipping Terms
Packaging Details: Seaworthy package
Delivery Time: 25-35days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 100 piece per month
Product Description
Full Hydraulic Core Drilling Rig
Product Description

E5 Core Drill Rig: High-Performance & Remote-Controlled

The Glorytek E5 is a full-hydraulic, track-mounted core drill rig engineered for high-efficiency open-pit exploration. Designed for superior mobility and control, it features a wireless remote-controlled crawler system capable of navigating challenging terrain with a 30° climbing angle.

Powered by a reliable 153 kW Cummins engine, the E5 delivers exceptional performance with a maximum torque of 5220 N·m. It is built for deep-hole applications, achieving nominal drilling depths of up to 1530m (BQ), 1200m (NQ), 800m (HQ), and 400m (PQ).

Key features include a 3.5m feed stroke, a lateral sliding power head for enhanced rod handling, and a robust hydraulic system. Its compact transport dimensions and integrated control console make the E5 a versatile and powerful solution for modern mineral exploration and geological surveying.

Pictures
 E5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW Engine
Technical Parameters
E5 Core Drill Rig — Technical Specifications
Glorytek Industry (Beijing) Co., Ltd.
Specification Value
2.1 Nominal Core Drilling Depths
BQ 1530 m
NQ 1200 m
HQ 800 m
PQ 400 m
2.2 Main Winch
Hoisting pull 80 kN
Hoisting speed 44 m/min
Wire rope capacity 27 m x 16 mm
2.3 Wireline Winch
Hoisting pull (single line, empty drum) 9.7 kN
Hoisting pull (single line, full drum) 2.4 kN
Hoisting speed (empty drum) 138 m/min
Hoisting speed (full drum) 533 m/min
Wire rope capacity 1500 m x 6 mm
2.4 Mast and Feed System
Feed stroke 3.5 m
Feed speed Fast and slow, with 4-speed variable control
Feed force 59.6 kN
Pull force 138 kN
Drilling angle Vertical down to 45° below horizontal
Drill rod pull-up length 6.09 m
2.5 Power Unit
Engine model Cummins China Stage III, displacement 6.7 L
Power 153 kW
Speed 1800 rpm
Engine type Turbocharged aftercooled electronically controlled diesel engine
Cooling Water-cooled
Electrical system 24 V
2.6 Hydraulic System
Main pump 31 MPa - 242 L/min
Secondary pump 20 MPa - 122 L/min
Auxiliary pump 21.5 MPa - 47 L/min
Hydraulic oil cooler Air-cooled
2.7 Power Head
Drive Gear transmission with variable speed / reversible hydraulic motor
Spindle through-hole diameter 126 mm
Max torque 5220 N·m
Max speed 1300 rpm
2.8 Chuck Assembly
Type Hydraulically opened, nitrogen spring closed
Max inner diameter 126 mm
Clamping capacity 178 kN
2.9 Drill Rod Clamp
Type Hydraulically opened, pneumatic spring closed, normally closed
Max opening 152 mm
Max drill rod clamping diameter 114 mm
Clamping capacity 300 kN
2.10 Rig Undercarriage
Outriggers Four hydraulic outriggers for quick leveling
Pad diameter 220 mm
Cylinder stroke 550 mm
2.11 Self-propelled Crawler System (RRC)
Control Wireless remote control
Max travel speed 3.3 km/h
Track shoe width 300 mm
Max climbing angle 30°
Weight 9000 kg
Transport dimensions 5420 mm x 2600 mm x 2300 mm

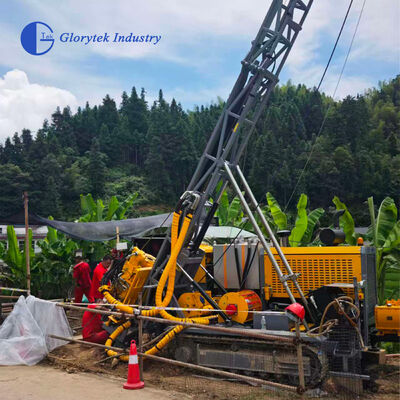

Working Condition
E5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW EngineE5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW EngineE5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW Engine
Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

E5 Remote Controlled Open Pit Fully Hydraulic Core Drill/Drilling Rig, 1530m BQ Depth, Cummins 153kW Engine
FAQ

Q: Are you original manufacturer or trading company?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?

A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: How is your delivery time?

A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?

A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
