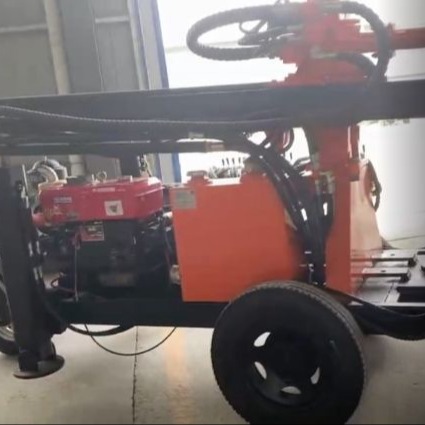

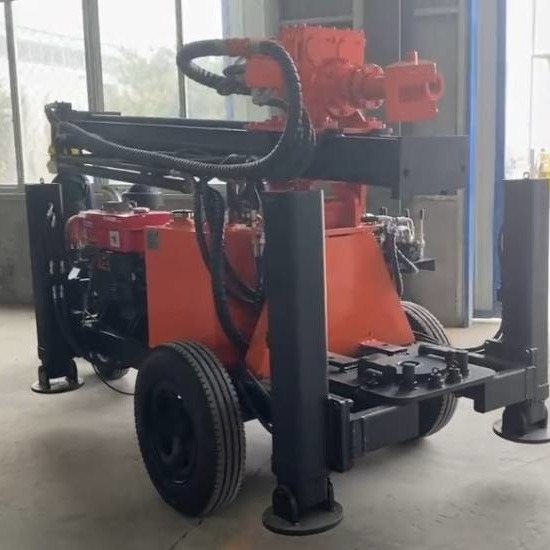

Trailer Mounted Drill Rig Machines Portable For Water Well Drilling

1
MOQ
Negotiable
Price
Trailer Mounted Drill Rig Machines Portable For Water Well Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Portable Water Well Drilling Trailer Mounted Drill Rig Machines GL130T
Keyword: Trailer Mounted Drill Rig Machines
Depth: 130m
Hole Dia.: 100-219mm
Drill Pipe Dia: 76mm,89mm
Drill Pipe Length: 1.5m, 2m
Total Weight: 3T
Transportation Dimension: 3850x1560x2050mm
Highlight:

Trailer Mounted Drill Rig Machines

,

Drill Rig Machines Portable

,

Water Well drill rig trailer

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL130T
Payment & Shipping Terms
Packaging Details: 20GP container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

Portable Water Well Drilling Trailer Mounted Drill Rig Machines GL130T​



Description:

GL130T widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.

Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient.
The drilling rig is three-wheeled trailer type, which is easy to transport and moving.

High efficiency drilling with hydraulic feeding structure.

This drill rig is equipped with Changchai 32HP diesel engine.

Small dimension and light weight.

It is easy to operate.



Tehnical Parameter:

The hole diameter (mm) 100-219
Drilling depth (m) 130
Drill pipe diameter (mm) 76mm, 89mm
Drill pipe length(m) 1.5m, 2.0m
Power(HP) 32
Rotating torque(N.m) 4000-5300
The weight (T) 3
Dimension  3580*1560*2050
