GL260S DTH 260m Drill Rig Machines For Water Well Borehole Drilling​

1
MOQ
Negotiable
Price
GL260S DTH 260m Drill Rig Machines For Water Well Borehole Drilling​
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL260S DTH Water Well Borehole 260m Drill Rig Machines For Water Well Drilling
Keyword: Borehole 260m Drill Rig Machines
Depth: 260m
Hole Dia.: 105-273mm
Drill Pipe Dia: 76mm,89mm
Drill Pipe Length: 3m
Total Weight: 5T
Transportation Dimension: 2000*1250*1950mm
Diesel Engine: 76kw
Highlight:

260m Drill Rig Machines

,

GL260S Borehole Drill Rig Machines

,

DTH water well drilling rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL260S
Payment & Shipping Terms
Packaging Details: 20GP container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL260S DTH Water Well Borehole 260m Drill Rig Machines For Water Well Drilling​



Description:



GL260S track water well dril rig machines is widely used for water wells, agriculture irrigation wells and other wells,

It is specially suitable for geothermal drilling, farm irrigation , house yard, gardens and water well drilling.

GL260S drill rig machines is compact design with small dimention. It can easily go into the garden, street etc.small space to work.

This model is equipped with 76kw diesel engine.

Max drilling depth 260m.

It is fast speed working with air compressor, dth hammer and hammer bits.





Tehnical Parameter:



Main Parameter
Max drilling depth M 260
Drilling diameter MM 105-273
Air pressure Mpa 1.2-3.5
Rod length m 3
Rod diameter mm 76-89
Main shaft pressure T 5
Lifting force T 18
Total swing stroke M 3.6
Max rotary torque Nm 8000
Max rotary speed r/min 100
Secondary winch lifting force T 2
Jacks stroke m 1.4
Moving speed km/h 2.5
Uphill angle ° 21°
Weight of the rig T 5
The engine KW 76
Overall dimensions mm 2000*1250*1950
Working condition Loose bed and bedrock

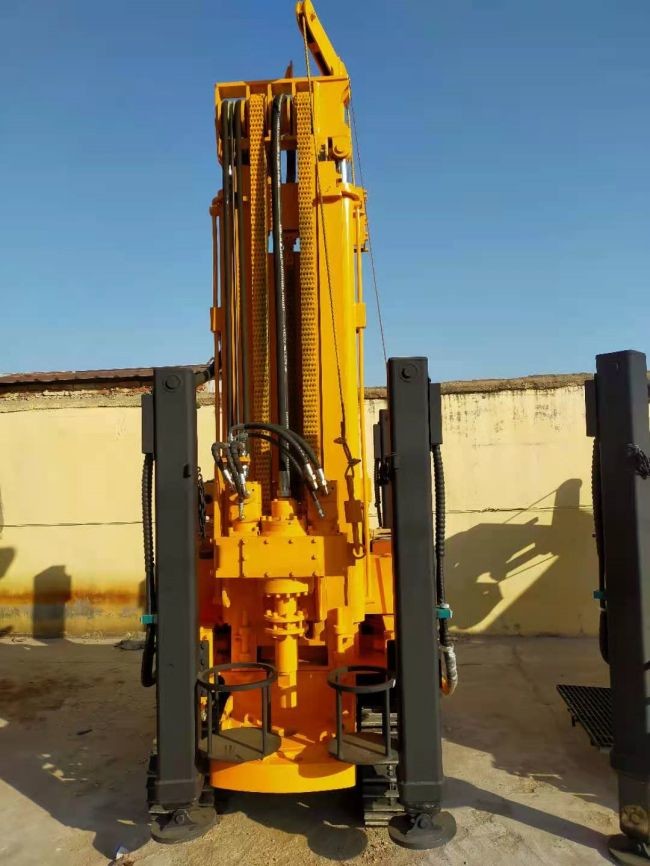

GL260S DTH 260m Drill Rig Machines For Water Well Borehole Drilling​ 0

Packing:

The drill rig will be packed into 20GP container.

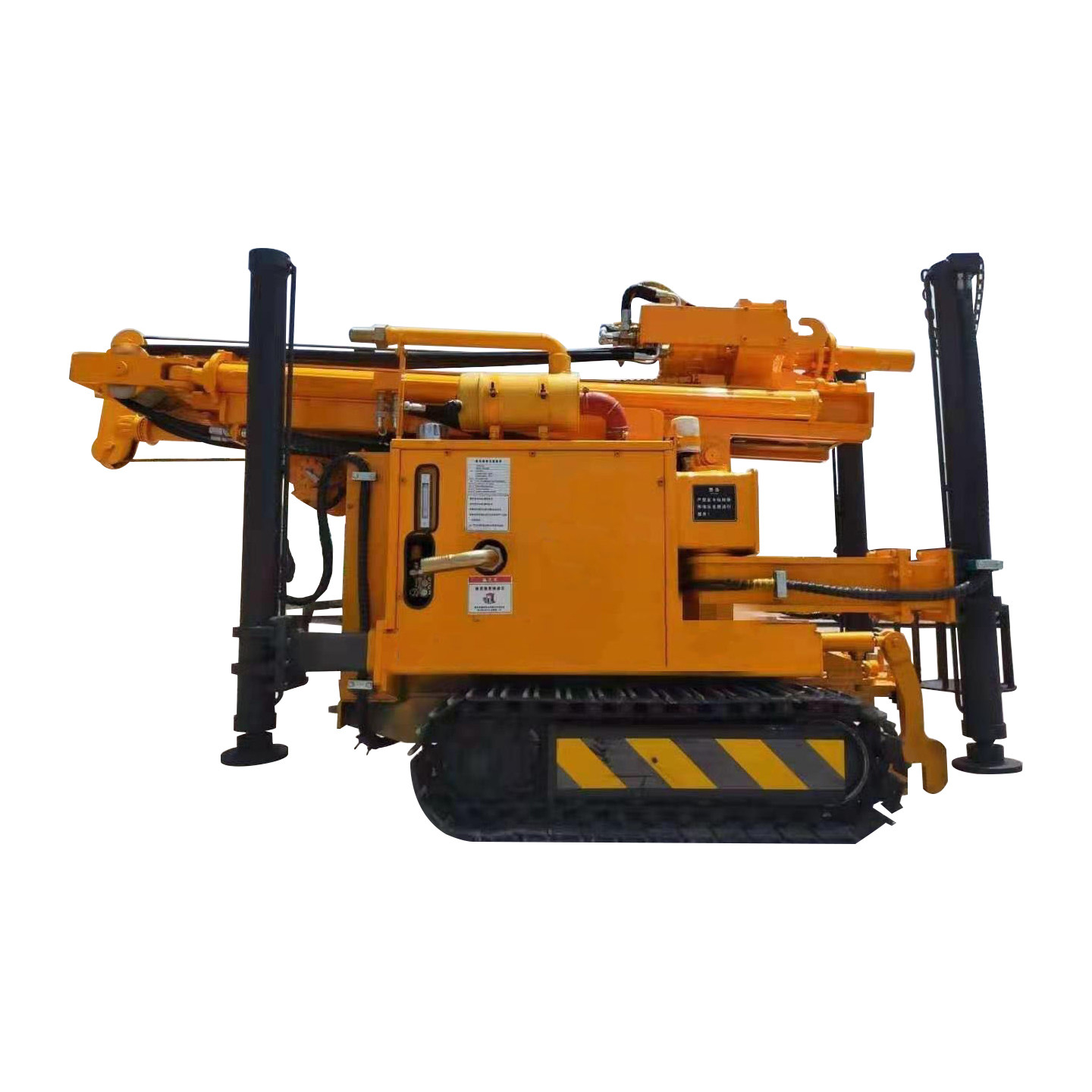

GL260S DTH 260m Drill Rig Machines For Water Well Borehole Drilling​ 1





Company Profile

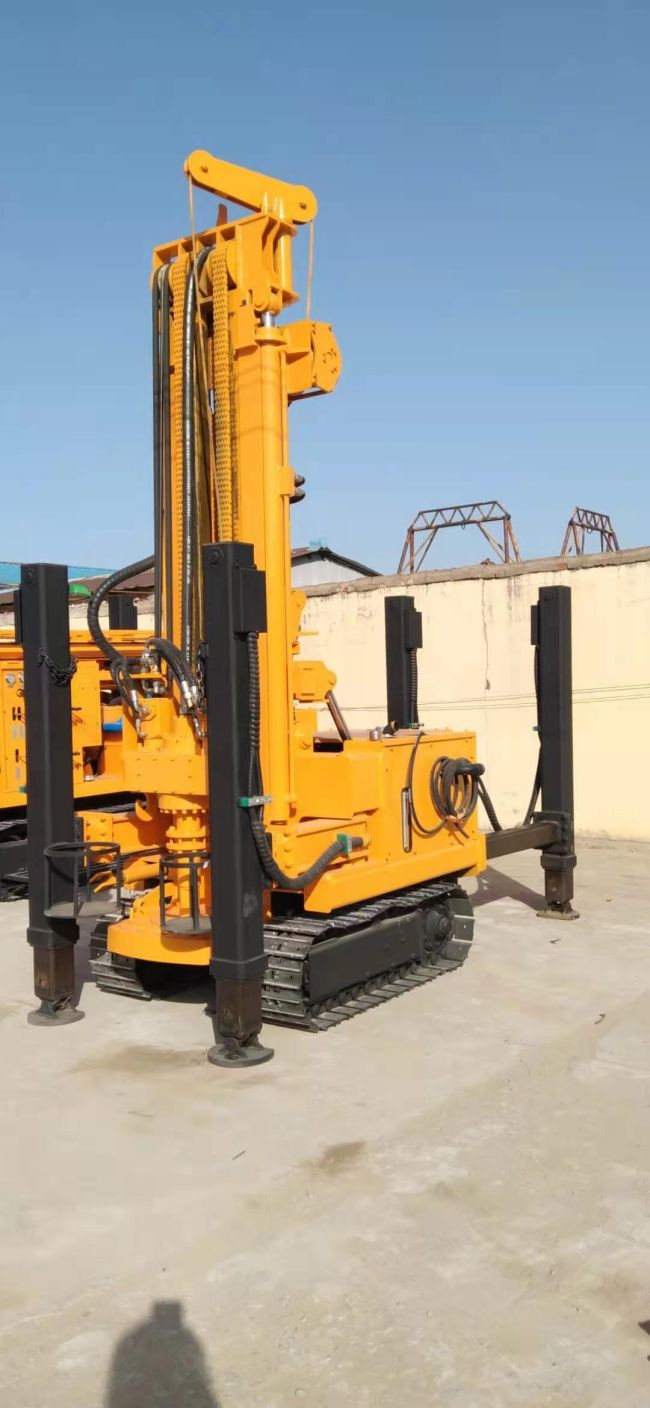

GL260S DTH 260m Drill Rig Machines For Water Well Borehole Drilling​ 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
