Name: Multipurpose 300m Drill Rig Machines For Borehole Air Mud Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL300S
Price: 108,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL300S Borehole 300m Air And Mud Drilling Drill Rig Machines

Keyword: Mud Drilling Drill Rig Machines

Depth: 330m

Hole Dia.: 105-300mm

Drill Pipe Dia: 76mm,89mm,102mm

Drill Pipe Length: 3m, 6m

Total Weight: 7.8T

Transportation Dimension: 4.9m X 2m X 2.3m

Diesel Engine: 77KW(Yuchai)

Highlight:

300m Mud Drill Rig Machines

Multipurpose Drill Rig Machines

Multipurpose borehole drilling machine 300m

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL300S

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 40sets/month

Gallery

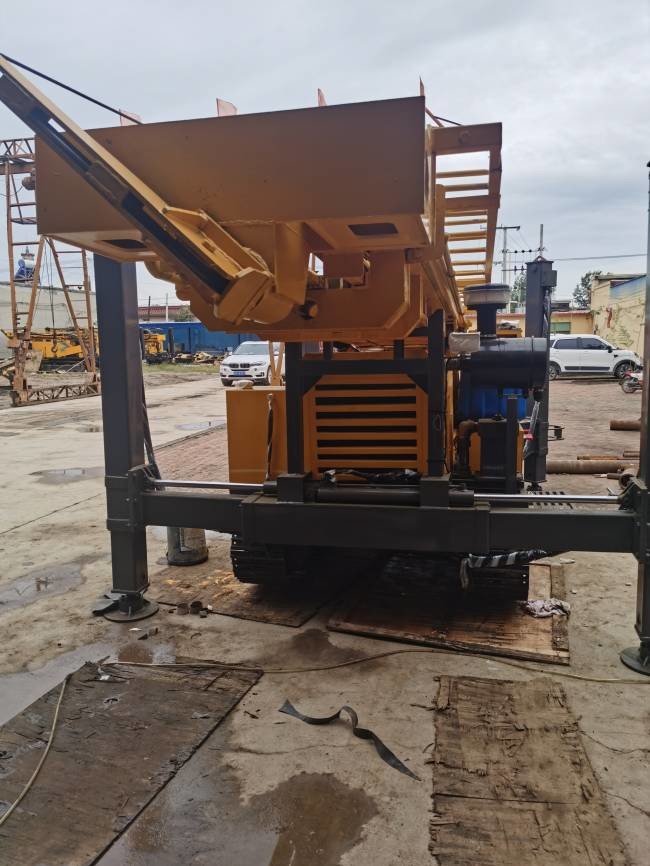

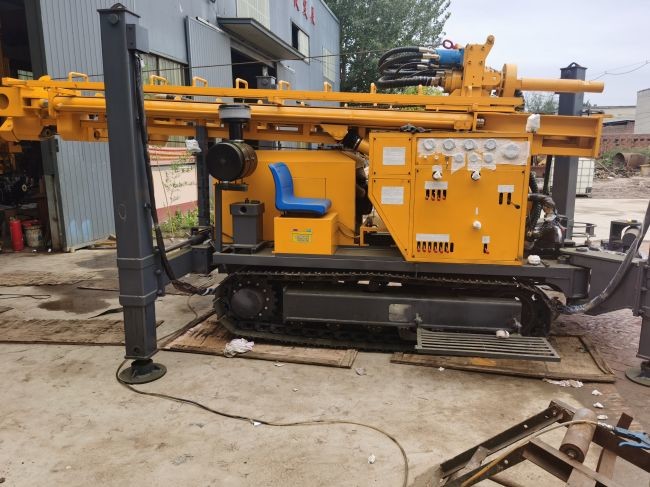

Multipurpose 300m Drill Rig Machines For Borehole Air Mud Drilling

Product Description

GL300S Borehole 300m Air And Mud Drilling Drill Rig Machines

Description:

GL300S water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.

It is mainly applicable to industrial and civil drilling, geothermal drilling.

Drilling depth can reach 300m
Steels quality is good, torque is large

It can use 3m, 6m length drill pipes.

It is especially suitable for mountain and rock formation water intake projects.

Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

Tehnical Parameter:

Technical Parameter
Max drilling depth	330m
Drilling diameter	105-300mm
Air pressure	1.25-3.5Mpa
Air consumption	16-55m³/min
Rod length	3m/6m
Rod diameter	76/89/102mm
Main shaft pressure	6T
Lifting force	20T
Fast lifting speed	20m/min
Fast forwarding speed	40m/min
Rotary torque	8900 N.M
Rotary speed	30/170r/min
Weight of the rig	7.8T
Dimension	4.9m x 2m x 2.3m
Working condition	loose layer or bedding rock
Suitable hammer	Medium and high pressure DTH hammer
Optional accessories	Mud pump, centrifugal pump, generator, foam pump
Diesel Engine	77KW(Yuchai)

Multipurpose 300m Drill Rig Machines For Borehole Air Mud Drilling 0

Customer Visting
Multipurpose 300m Drill Rig Machines For Borehole Air Mud Drilling 1

Company Profile

Multipurpose 300m Drill Rig Machines For Borehole Air Mud Drilling 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
