Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well

1
MOQ
Negotiable
Price
Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DF400 Truck Mounted 400m Water Well Drill Rig Machines For Borehole
Keyword: Drill Rig Machines For Borehole
Depth: 400m
Kelly Rod: 108×108×7500mm
Transportation Dimension: 12700×2500×4000mm
Diesel Engine: 97kW
Truck Chassis: Dongfeng 6×4
Mud Pump: BW850
Highlight:

Multifunctional Truck Mounted Borehole Drilling Rig

,

400m Truck Mounted Borehole Drilling Rig

,

Water Well borehole drilling machine truck

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL300S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

DF400 truck mounted 400m water well Drill Rig Machines for borehole​



Description:

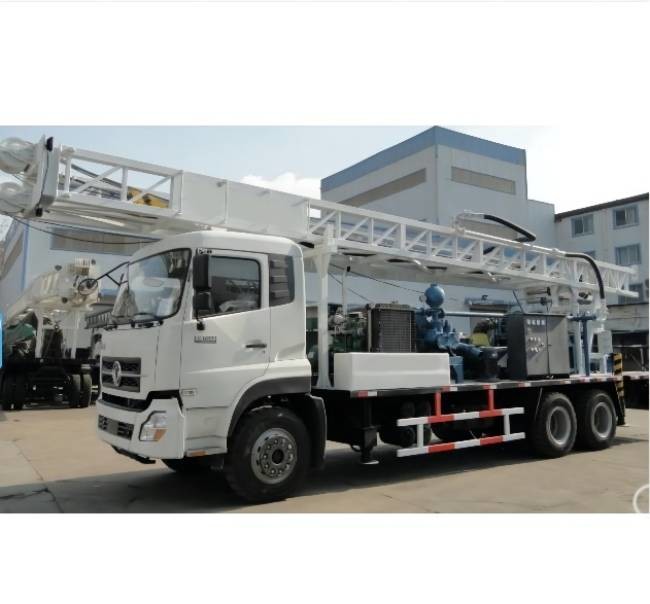

DF400 Truck Mounted Water Well Drilling Rig is a direct circulation rotary drilling rig.

It is equipped with the Dongfeng 6×4 special truck chassis and is equipped with 11.00R20 steel wire off-road tread tires, which has good off-road performance.

The rig adopts Yuchai YC6J220-46 diesel engine, and the emission standard meets the national IV emission.



Tehnical Parameter:





Drilling depth (m)
400
Cylinder lifting force (kN/MPa)
201/20
Cylinder feed force (kN/MPa)
53/10
Main winch lifting force (single rope) (kN)
40
Main hook lifting force (2 wheels) (kN)
160
Tool hoisting force (single rope) (kN)
20
Lifting force of tool hook (single wheel) (kN)
20
Through hole diameter of turntable (mm)
500
Rotation speed of turntable (r/min)
97; 85; 50; 32; 19; 11
Turntable torque (kN.m)
2.96; 3.38; 5.82; 9; 15.5; 27
Effective height of drilling tower (m)
11.8
Drill tower load capacity (kN)
260
Kelly(mm)
108×108×7500

Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well 0

Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well 1

Customer Visting

Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well 2

Company Profile

Multifunctional Truck Mounted Borehole Drilling Rig For 400m Water Well 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
