500m Drill Rig Machines For Agricultural Irrigation Engineering

1
MOQ
Negotiable
Price
500m Drill Rig Machines For Agricultural Irrigation Engineering
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL500S Water Well Drilling Rig Irrigation Engineering Well Drill Rig Machines
Keyword: Engineering Well Drill Rig Machines
Depth: 500m
Drilling Diameter: 105-325mm
Air Pressure: 1.2-3.5Mpa
Rod Length: 3m,6m
Drill Rod Dia.: 89-102-114mm
Lifting Force: 30t
The Engine: 153KW
Dimension: 5700*1900*2400mm
Highlight:

500m Agricultural Drill Rig Machines

,

Agricultural Drill Rig Machines

,

Irrigation Engineering Drill Rig Machines

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL500S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

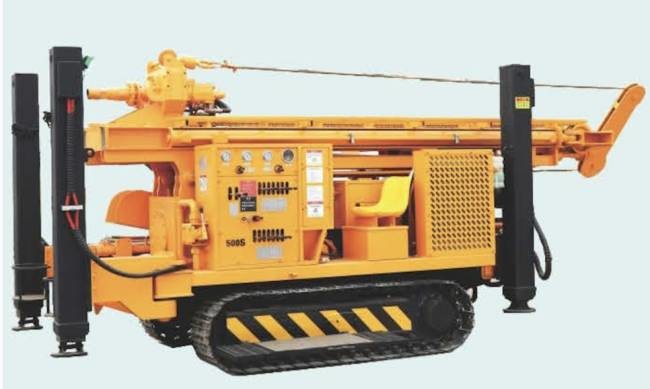

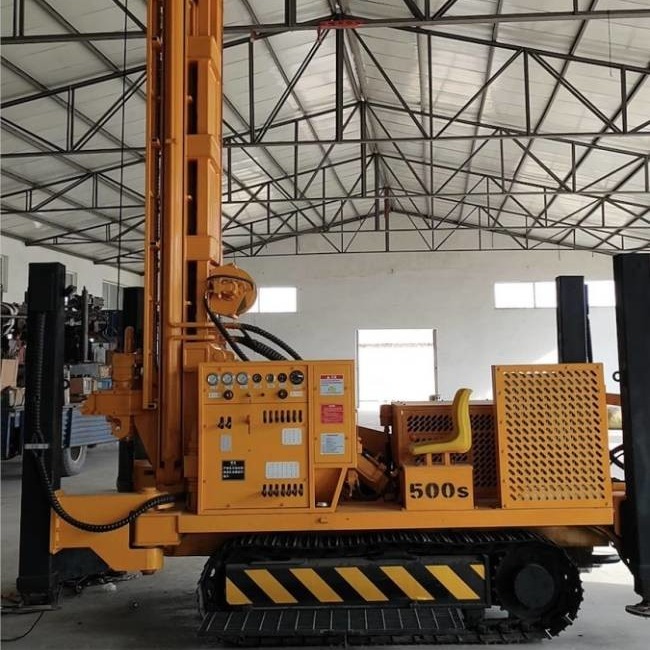

GL500S Water Well Drilling Rig Irrigation Engineering Well Drill Rig Machines



Description:

GL500S crawler water well drill rig machine is widely used in geothermal drilling, industrial drilling and agricultural drilling fileds.

It can work together with air compressor,and can also work mud pump and foam pump.



Tehnical Parameter:



Drilling depth (m)
500
Drilling diameter(mm)
105-325
Air pressure (Mpa)
1.2-3.5
Rod length (m)
3.0 6.0
Rod diameter(mm)
φ89 φ102 φ114
Main shaft pressure (T)
5
Lifting force (T)
30
Total swing stroke(M)
6.8
Max. rotary torque(N.m)
15000
Max.rotary speed (r/min)
100
Secondary winch lifting force (T)
5
Jacks stroke(M)
1.5
Moving speed(km/h)
2.5
Climbing ability(°)
21°
Weight of the rig(T)
10.28
Diesel engine(kw)
153KW
The oil pump
Plunger pump
Overall dimensions(MM)
5700*1900*2400
Working condition
Loose layer and bedrock



500m Drill Rig Machines For Agricultural Irrigation Engineering 0

500m Drill Rig Machines For Agricultural Irrigation Engineering 1

Customer Visting

500m Drill Rig Machines For Agricultural Irrigation Engineering 2

Company Profile

500m Drill Rig Machines For Agricultural Irrigation Engineering 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
