Name: Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL600S
Price: 108,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole

Keyword: Drill Rig Machines For Borehole

Depth: 600m

Drilling Diameter: 105-325mm

Air Pressure: 1.2-3.5Mpa

Rod Length: 3m,6m

Drill Rod Dia.: 89-102-114mm

Lifting Force: 30t

The Engine: 191kw

Dimension: 5700*2000*2500mm

Highlight:

Track Mounted DTH Drilling Machine 600m

Track Borehole DTH Drilling Machine

Track Borehole Drilling Equipment 600m

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL600S

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 40sets/month

Gallery

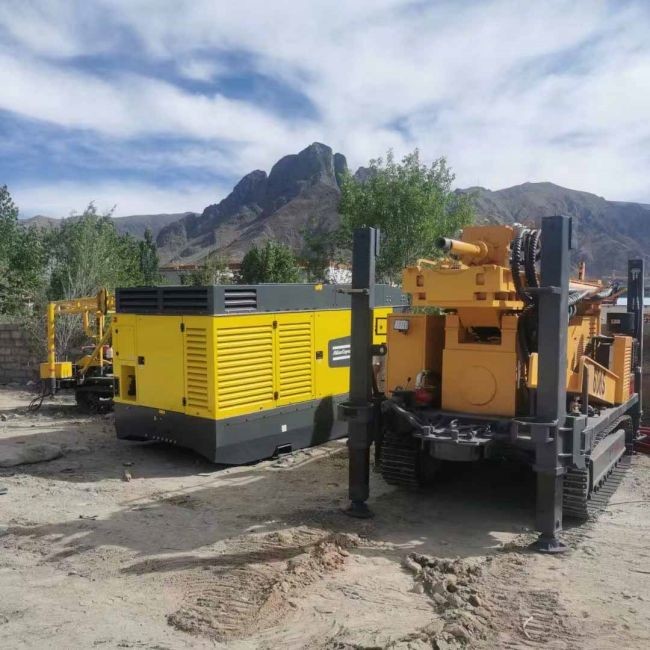

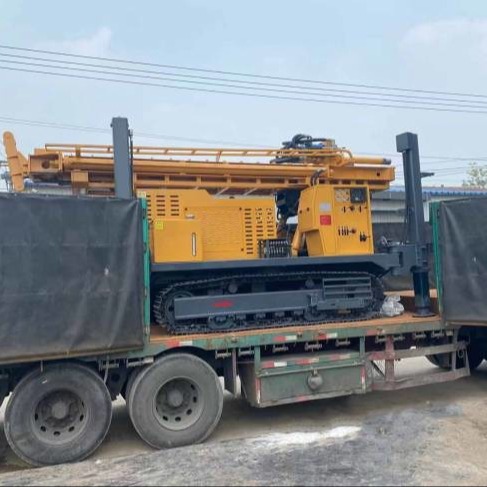

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth

Product Description

GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole

Description:

GL600S crawler water well drill rig machine is widely used in geothermal drilling, industrial drilling and agricultural drilling fileds.

It is equipped with steel crawler chassis, which is easily for crossing.

The diesel engine power is 191kw, big drilling capacity.

Tehnical Parameter:

Max Drilling depth (m)	600
Drilling diameter(mm)	105-325
Air pressure (Mpa)	1.2-3.5
Power head dia.(mm)	141
Rod length (m)	3.0 6.0
Rod diameter(mm)	89-102-114
Main shaft pressure (T)	8
Lifting force (T)	35
Power head stroke(M)	6.6
Max. rotary torque(N.m)	18000
Max. rotary speed (r/min)	100
Secondary winch lifting force (T)	3-5
Jacks stroke(M)	1.5
Moving speed(km/h)	2.5
Uphill angle(°)	21°
Weight of the rig(T)	13
The engine	191KW
Overall dimensions(MM)	570020002500
Working condition	Loose layer and bedrock
Drilling method	Top drive hydraulic rotary drilling, downhole hammer drilling,mud drilling

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth 0

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth 1

Customer Visting

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth 2

Company Profile

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

Warranty:

For drill rig main parts, if proved because of quality issue, we can replace them free of charge within one year after shipping.
