Water Well Drill Rig Machines Diesel Powered For 200m Drilling

1
MOQ
Negotiable
Price
Water Well Drill Rig Machines Diesel Powered For 200m Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL200R Diesel Powered Rubber Crawler Water Well Drill Rig Machines For 200m Drilling
Keyword: Water Well Drill Rig Machines
Depth: 200m
Drilling Diameter: 138-219mm
Air Pressure: 1.25-3.5Mpa
Rod Length: 3m
Drill Rod Dia.: 76/89mm
Lifting Force: 16T
Weight Of The Rig: 5.5T
Dimension: 3.9m X 1.8m X 2.3m
Drilling Method: Top Hammer Hydraulic Rotating And Feeding, Down The Hole Hammer Or Mud Pump Drilling
Diesel Engine: 77KW
Highlight:

Water Well Drill Rig Machines

,

Drill Rig Machines Diesel

,

200m water well drilling rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL200R
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL200R Diesel Powered Rubber Crawler Water Well Drill Rig Machines For 200m Drilling



Description:

GL200R hydraulic pneumatic multi-functional deep water well drill is a light weight, efficient, multi-functional drilling equipment. It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other uses of wells, especially suitable for mountainous areas and rock formation water intake engineering.
And as per clients' requirements, it can also be modified to be equipped with mud pump so that it can do mud pump rotary drilling. The cost is very competitive. Welcome to contact us for more information.



Tehnical Parameter:



Technical Parameter
Max drilling depth 200m
Drilling diameter 105-300mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m
Rod diameter 76/89mm
Main shaft pressure 4T
Lifting force 16T
Fast lifting speed 20m/min
Fast forwarding speed 40m/min
Rotary torque 6500 N.M
Rotary speed 30/120r/min
Winch lifting force 1.5T
High leg stroke 1.35-1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 5.5T
Dimension 3.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 77KW

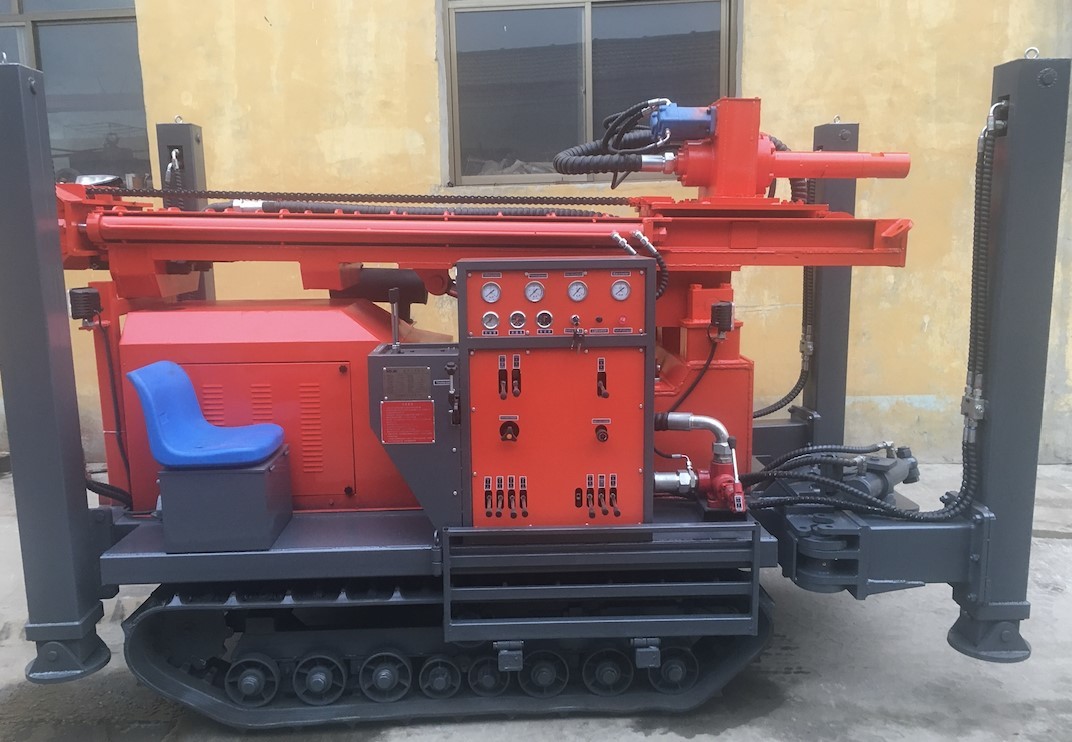

Water Well Drill Rig Machines Diesel Powered For 200m Drilling 0

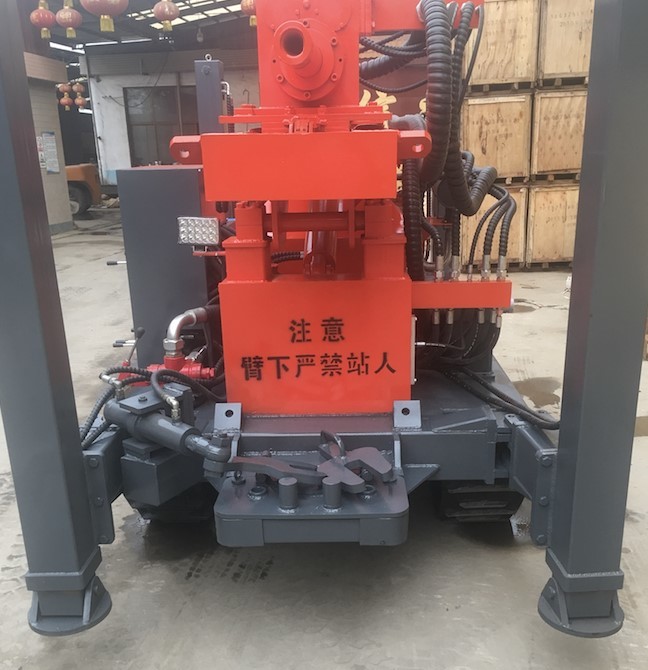

Water Well Drill Rig Machines Diesel Powered For 200m Drilling 1

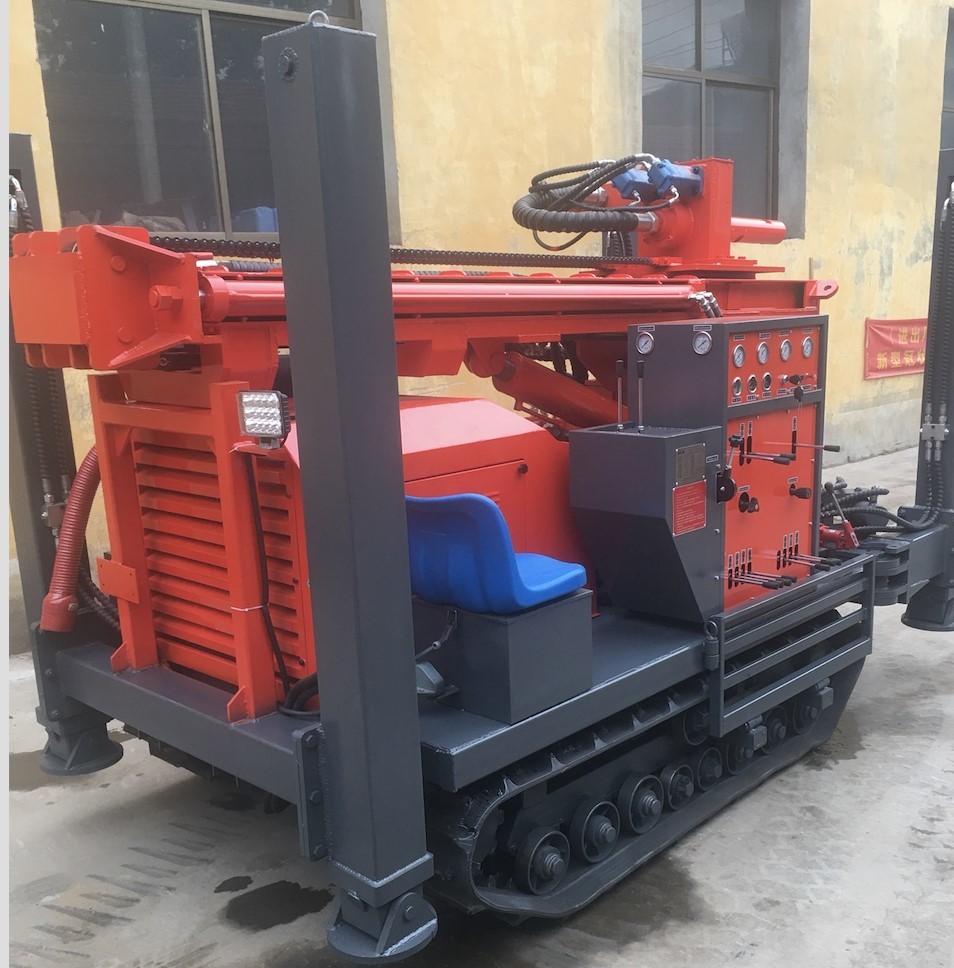

Water Well Drill Rig Machines Diesel Powered For 200m Drilling 2



Company Profile

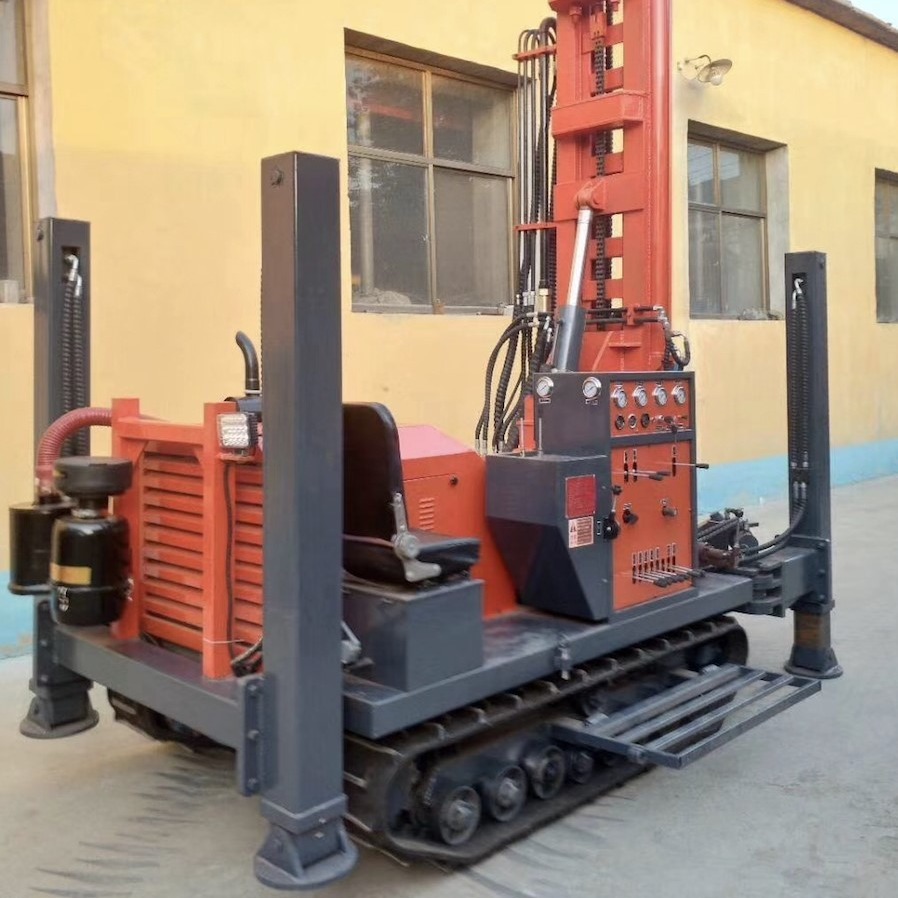

Water Well Drill Rig Machines Diesel Powered For 200m Drilling 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.



Packing and Transport



We packed products in standard exporting packing. Normally it will take around 20-25 days for production.

Water Well Drill Rig Machines Diesel Powered For 200m Drilling 4
