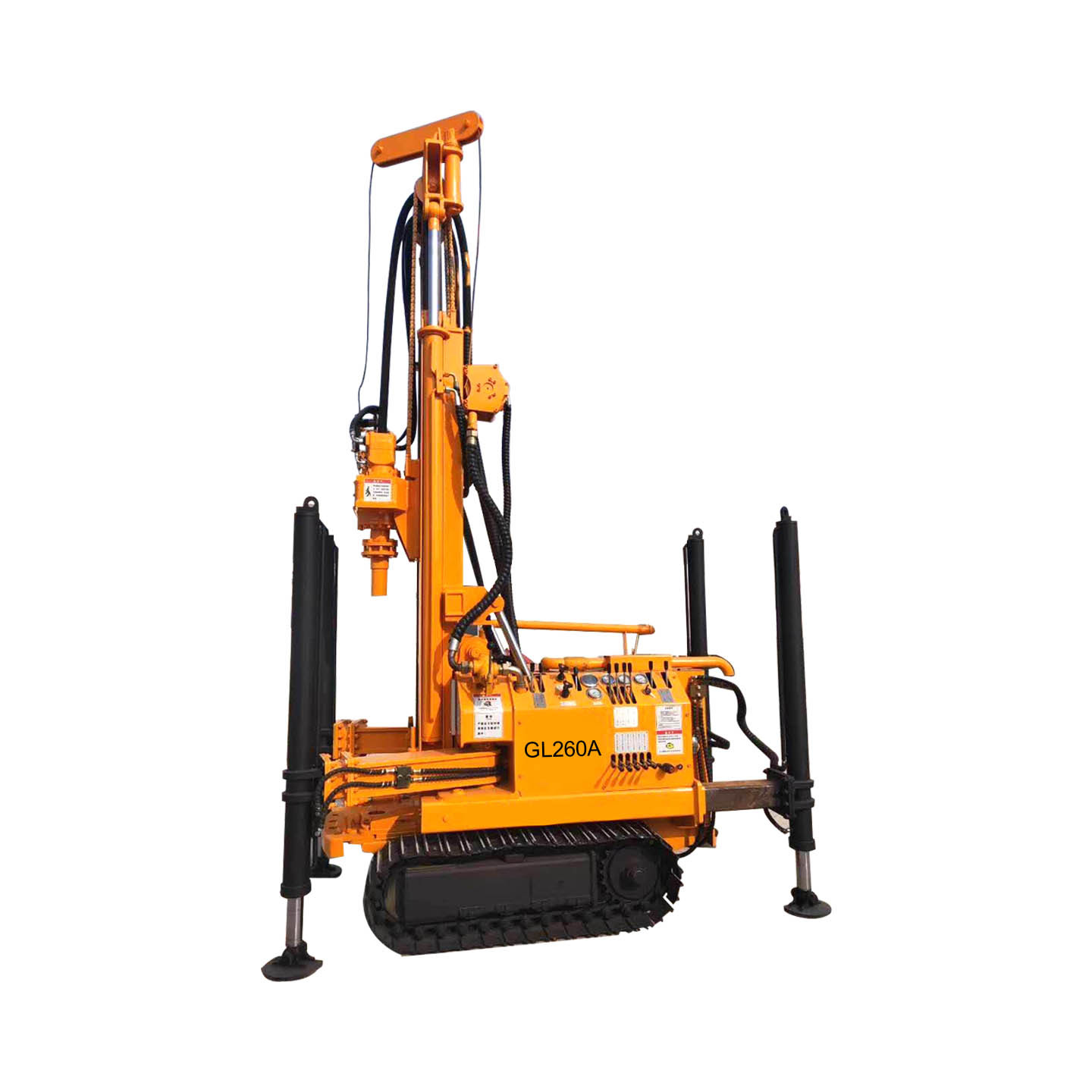

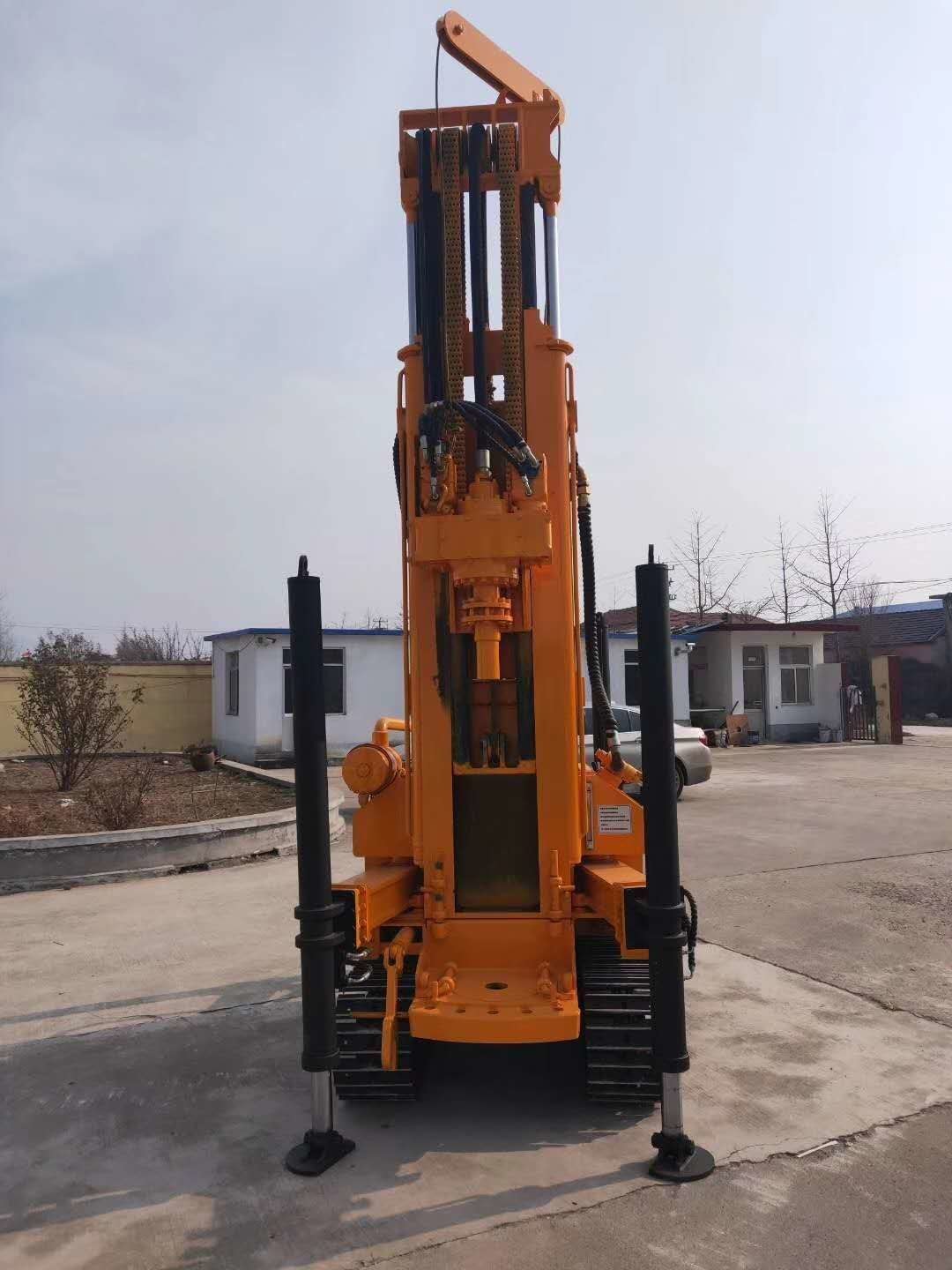

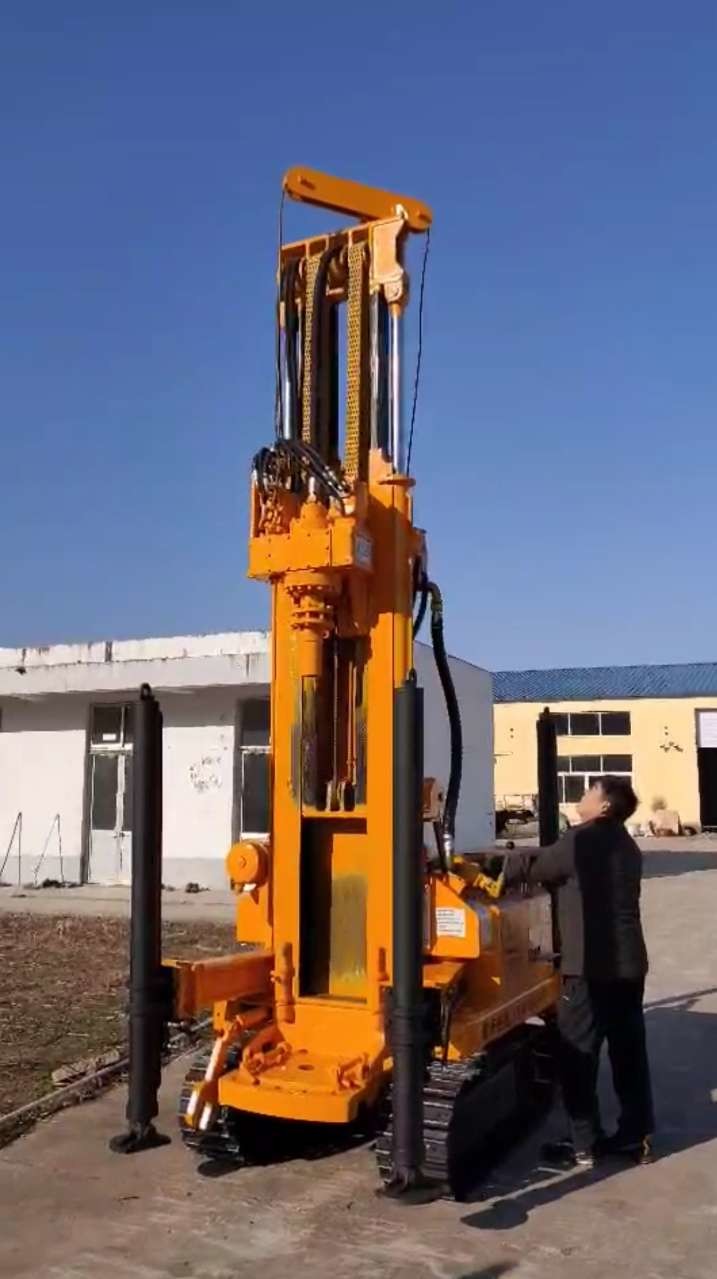

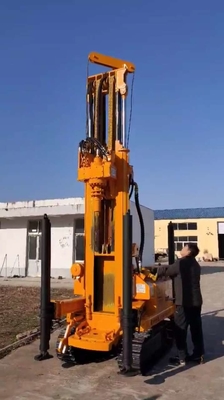

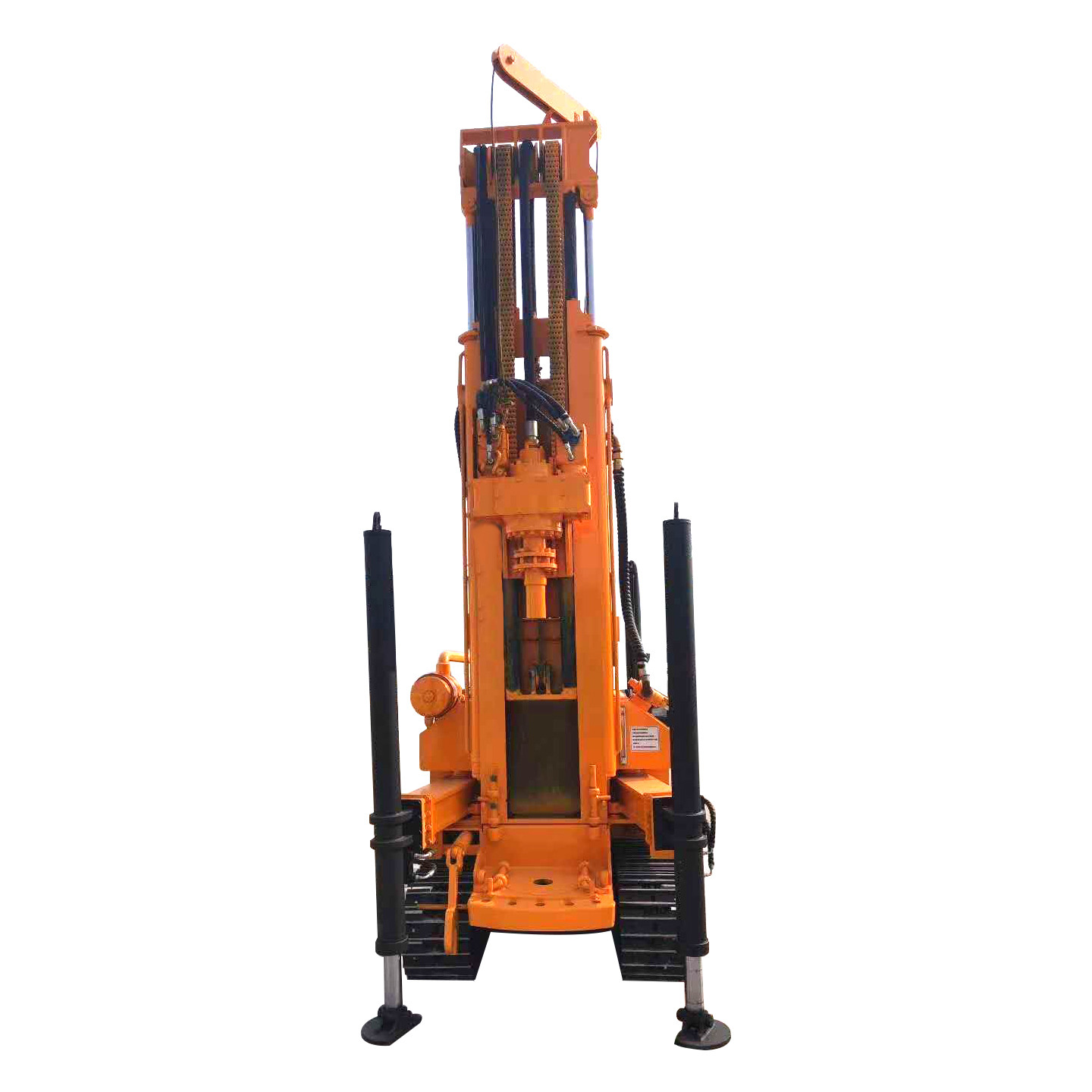

260A 300m Compact Structure Light Weight Drill Rig Machines with Crawler Chassis
Description:
The protruding features of this machine are compact structure, small size and light weight, which is very suitable for the home garden and other sites with relatively small working space. In particular, the width is narrow, and this drill can freely travel through a relatively narrow space. It is relatively light in weight and has a tracked chassis and hydraulic outriggers to assist in transport.
Usually this machine is used for air hammer drilling, which is efficient and requires less drilling time. Welcome customers in need to contact us for more information.
Tehnical Parameter:
| Technical Parameter | |
| Hole Diameter: | 300(mm) |
| Hole Depth: | 300(m) |
| Drill Rod Diameter: | φ76 φ89 φ102(mm) |
| Power : | 76(kW) |
| Gear pump : | 50/50/25 |
| Chassis : | steel crawler |
| Drill Head Motor : | HMV8K500 |
| Drill Head Torque : | 10000(N·m) |
| Drill Head Stroke : | 3.6m |
| Drill Head Lifting Force : | 18ton, with winch |
| Dimensions(L-W-H) : | 2100x1250x1950(mm) |
| Transport Status(L-W-H) : | 2800x2500x1400(mm) |
| Rig Mass : | 5000(kg) |
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
We have cooperative customers in more than 60 countries around the world. Our machines support their local engineering well. We have been supplying drilling equipment and drilling tools
Related drilling products:
Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.
