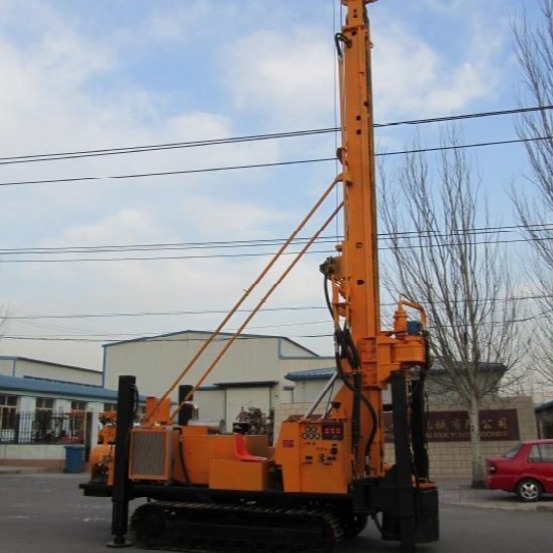

800A 700m Top-Driving Full-Hydraulic Water Well Drill Rig Machines With Track Chassis
Description:
This kind of drilling rig is suitable for air drilling, we also have customers who like drilling with mud pump, we can also install mud pump on the drilling rig according to customer's requirements. Whether you need an air compressor or a mud pump, we can provide it. We can also provide a full range of drilling tools.
This machine has high drilling efficiency and high cost performance. If you are interested in this drilling machine, please kingly contact us and we will reply you as soon as possible.
Tehnical Parameter:
|
Model:
|
800A | Drilling depth |
700m
|
|
Drill diameter:
|
140-500mm
|
Air reverse double ply drill rod:
|
127mm(Optional) |
|
Working air pressure:
|
1.05-6.45Mpa |
Air consumption:
|
16-96.4 m³/min |
|
Drill rod length:
|
4.5m
|
Drill rod diameter:
|
89mm;108mm; 127mm |
|
Axial pressure:
|
6t
|
Lifting force:
|
32t
|
|
Slow lifting speed:
|
4.4m/min
|
Fast lifting speed:
|
25m/min
|
|
Slow feed speed:
|
0.5-7.2m/min
|
Fast feed speed:
|
36m/min
|
|
Rotation torque:
|
13000Nm;6500Nm |
Rotation speed:
|
0-80r/min;0-160r/min |
| Lifting ability of big winch: | 4t | Length of steel rope: | 60m |
| Lifting ability of small winch: | 1.5t | Mud pump flow rate: | 600L/min(Optional) |
| Centrifugal pump flow rate: | 1300L/min(Optional) | Dynamo: | 24Kw/380v(Optional) |
|
Grade ability:
|
21°
|
Penetration rate: | 10-25m/h |
|
Drilling Method:
|
Downhole hammer or Mud Drilling
|
Whole dimension:
|
8.7×2.3×3.3 m |
|
Weight:
|
15.5 t
|
Hammer:
|
Intermediate or high air pressure series |
|
Application formation:
|
Unconsolidated layer or bedding rock | ||
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
We have cooperative customers in more than 60 countries around the world. Our machines support their local engineering well. We have been supplying drilling equipment and drilling tools
Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.
