Name: Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL350S
Price: 108,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL350S Fully Hydraulic Track Mounted Borehole Drill Rig Machines For 350m Drilling

Keyword: Borehole Drill Rig Machines

Depth: 350m

Drilling Diameter: 105-325mm

Air Pressure: 1.25-3.5Mpa

Rod Length: 3m/6m

Drill Rod Dia.: 76/89/102mm

Lifting Force: 26T

Weight Of The Rig: 8.5T

Dimension: 5.9m X 1.8m X 2.3m

Highlight:

Hydraulic Track Mounted Drill Rig 350m

Borehole Track Mounted Drill Rig

Borehole Drilling Equipment 350m

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL350S

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 40sets/month

Gallery

Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth

Product Description

GL350S Fully Hydraulic Track Mounted Borehole Drill Rig Machines for 350m Drilling

Description:

The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.

Tehnical Parameter:

Technical Parameter
Max drilling depth	350m
Drilling diameter	105-325mm
Air pressure	1.25-3.5Mpa
Air consumption	16-55m³/min
Rod length	3m/6m
Rod diameter	76/89/102mm
Main shaft pressure	6T
Lifting force	26T
Fast lifting speed	24m/min
Fast forwarding speed	50m/min
Rotary torque	9900 N.M
Rotary speed	30/170r/min
Winch lifting force	1.5T
High leg stroke	1.5m
Drilling efficiency	10-35m/h
Moving speed	2.5Km/h
Uphill angle	21°
Weight of the rig	8.5T
Dimension	5.9m x 1.8m x 2.3m
Working condition	loose layer or bedding rock
Drilling method	Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling
Suitable hammer	Medium and high pressure DTH hammer
Optional accessories	Mud pump, centrifugal pump, generator, foam pump
Diesel Engine	90KW

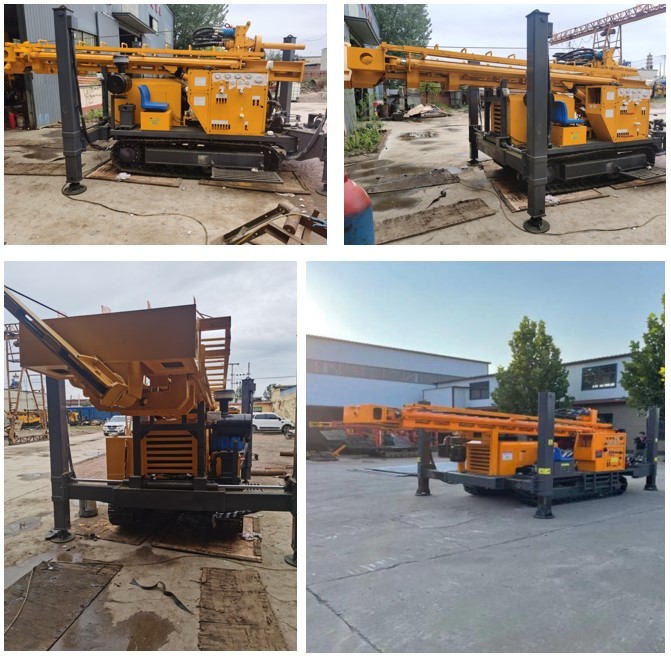

Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth 0

Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth 1

Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth 2

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

We have attended many exhibitions to showcase our products.
