Name: full hydraulic underground 500m core drill rig for geological exploration
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GLKD-500
Price: 108,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GLKD-500 Full Hydraulic Underground Core Drill Rig Machines For Geological Exploration

Keyword: Underground Core Drill Rig Machines

Depth: 500m

Hole Diameter: BQ,NQ

Degree: (Tunnel) 0-360 Degrees

Model: GLKD-500

Highlight:

500m core drill rig

geological exploration core drill rig

geological exploration core drilling machine 500m

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE,SGE, TUV

Model Number: GLKD-500

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 50 sets/month

Gallery

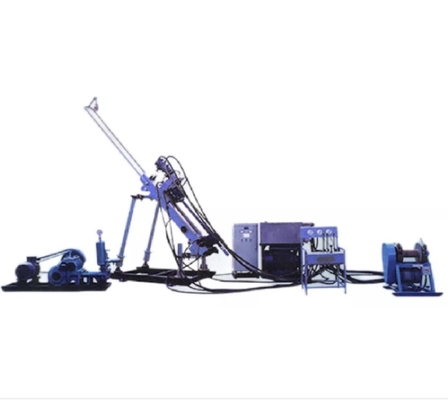

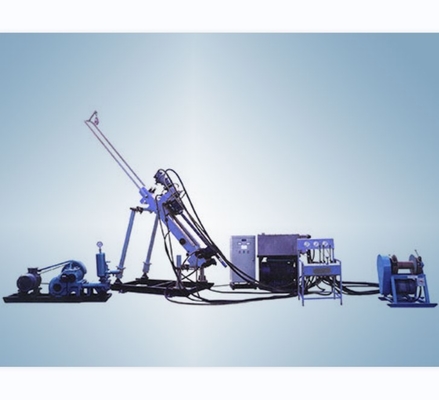

full hydraulic underground 500m core drill rig for geological exploration

Product Description

GLKD-500 Full Hydraulic Underground Core Drill Rig Machines For Geological Exploration

Description:

1. The underground drilling rig is suitable for indoor use with a 2000*2000mm roof without breaking, quicksand and support. 360-degree all-round drilling and coring.

2. Drilling forward (horizontal), the size of the chamber is required to be 2000mm high * 2000mm wide.

3. Drilling transverse (horizontal), the size of the chamber is required to be 2000mm high *2700mm wide.

4. Drilling vertical up and down angles, the size of the chamber is required to be 2700mm high * 2000mm wide

Tehnical Parameter:

GLKD-500 Full Hydraulic Underground Core Drilling Rig
Drilling angle:	(Tunnel) 0-360 degrees, surface 0-90 degrees
Drilling depth:	Drill pipe: Φ43mm- 500m
	Drill pipe: Φ55.5(BQ)mm- 480m (horizontal), 500m (vertical)
	Drill pipe: Φ71 (NQ) mm -360m (horizontal), 420m (vertical)
Spindle speed:	290-900RPM (manual continuously variable transmission)
Spindle output torque:	296-1100 N.m (torque platform test)
Rated feeding force:	80 kn (torque platform test)
Feeding stroke	750mm
Inner diameter of oil cylinder	80mm
Chrome plated piston rod	45m
Oil pump motor:	380V, 45KW
Motor	1pc
Hydraulic system:	The maximum volume of the oil tank is 150 L, 46# anti-wear hydraulic oil, and the system pressure is 160 bar
Drill Rig Weight:	523kg (decomposable)
Dimension:	1850mm450mm550mm(LWH)
Console weight:	60kg
Dimension:	610mm530mm 1050mm
Power unit weight:	550kg (decomposable)
Dimension:	1280mm800mm1200mm

Features:

1. Small size, light weight and easy installation.

2. It consists of three major parts, the main machine, the pump station, and the operation console.

3.It can be put into production in the original transportation and exploration roadway, which plays a role in protecting the overall structure of the mine. It can also be used for surface 0-90 degree drilling.

4.The drilling rig is arranged flexibly, and the drill pipe can be twisted and unloaded mechanized, which reduces the labor intensity of workers and improves work efficiency.

Related Products

full hydraulic underground 500m core drill rig for geological exploration 0

Customer Visting

full hydraulic underground 500m core drill rig for geological exploration 1

Company Profile

full hydraulic underground 500m core drill rig for geological exploration 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?

A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
