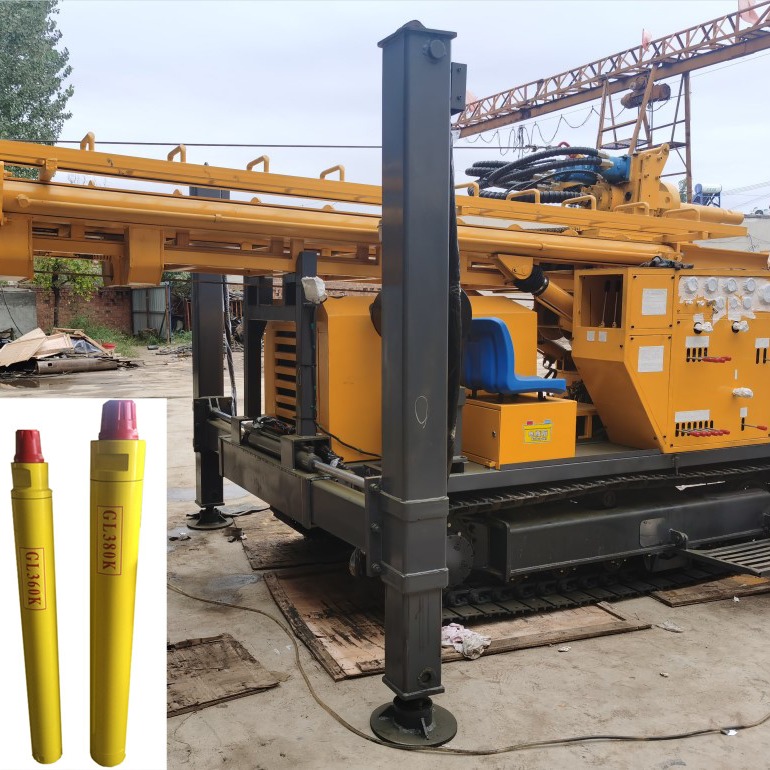

350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System

1
MOQ
Negotiable
Price
350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL350S 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines With Full Hydraulic System
Keyword: 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines
Depth: 350m Deep Well
Hole Diameter: 105-325mm
Suitable Drill Rod: 76/89/102mm
Machine Size: 5.9m X 1.8m X 2.3m
Highlight:

350m depth crawler drill machine

,

full hydraulic system crawler drill machine

,

350m depth crawler drilling machine

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE, SGS, TUV
Model Number: GL350S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL350S 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines with Full Hydraulic System



Description:

GL350S 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines with Full Hydraulic System is our new model of water well drilling rig. This machine has full hydraulics and a durable track chassis, which makes this machine more efficient and durable and easy to operate. This drilling rig is usually suitable for air drilling, but if customers have special requirements, we can also customize drilling rigs with mud pumps for customers, so that this machine can be suitable for projects by mud drilling.



We are a professional manufacturer of drilling rigs and drilling tools. Our technicians can recommend the most appropriate model according to the customer's project. We have mature production lines. Each machine will pass strict quality inspection before leaving the factory. We have information to become your reliable supplier. Welcome to order.



Features:
1. durable crawler chassis, which makes it more easy to move;
2. full hydraulic system, which makes it more efficient;
3. low cost, we are manufacturer of drill rig and our products are with factory wholesale price



Tehnical Parameter:





Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW



350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System 0



350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System 1



Company Profile



350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System 2

Glorytek Industry (Beijing)Co.,Ltd., mainly supply and munufacture top quality drilling equipment and drilling parts. Our company is located in Beijing, China. We have professional production department and our own exporting team to deal with orders from worldwide clients for decades. We have our mature models of drilling rigs and drilling tools, which have been supporting our clients drilling projects very well. We also welcome clients who want to customized products.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System 3



We have attended many exhibitions to showcase our products.



350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System 4
