Name: GL-III Truck Diesel Engine Borehole Drilling Equipment 400m
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL-III
Price: 108,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL-III Truck Diesel Engine Borehole Water Well Drill Rig Machines 400m Borehole Drilling Equipment

Keyword: Borehole Water Well Drill Rig Machines

Depth: 400m

Mud Pump: Bw600

Transportation Dimension: 9600×2950×7900mm

Diesel Engine: 84kW

Truck Chassis: Dongfeng 4×4

Weight: 12500kg

Highlight:

diesel engine borehole drilling equipment

400m borehole drilling equipment

400m borehole drilling machine

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL-III

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 40sets/month

Gallery

GL-III Truck Diesel Engine Borehole Drilling Equipment 400m

Product Description

GL-III truck diesel engine borehole water well drill rig machines 400m borehole drilling equipment

Description:

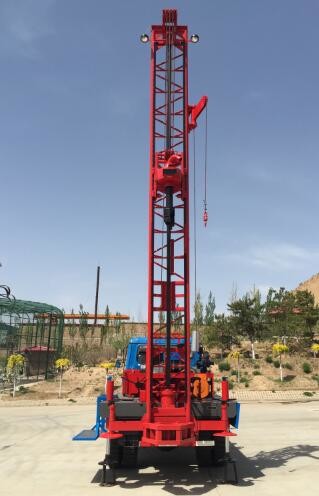

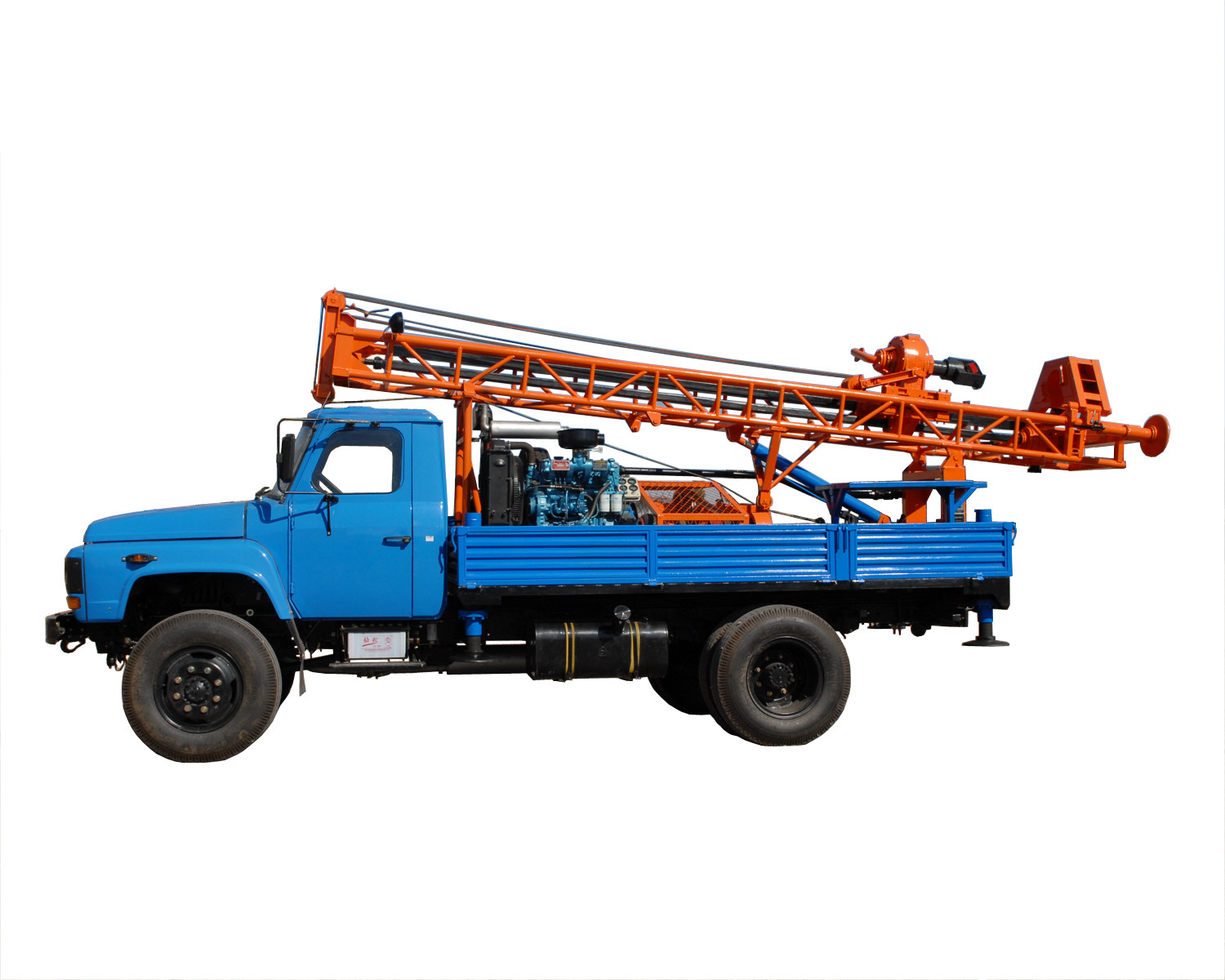

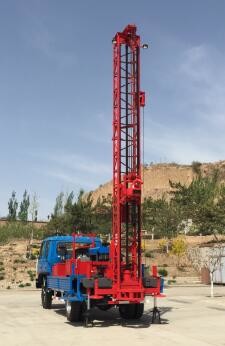

GL-III truck mounted water well drill rig can drill max. 400m deep. It is top drive type rotary head. Very fast eficiency while drilling.

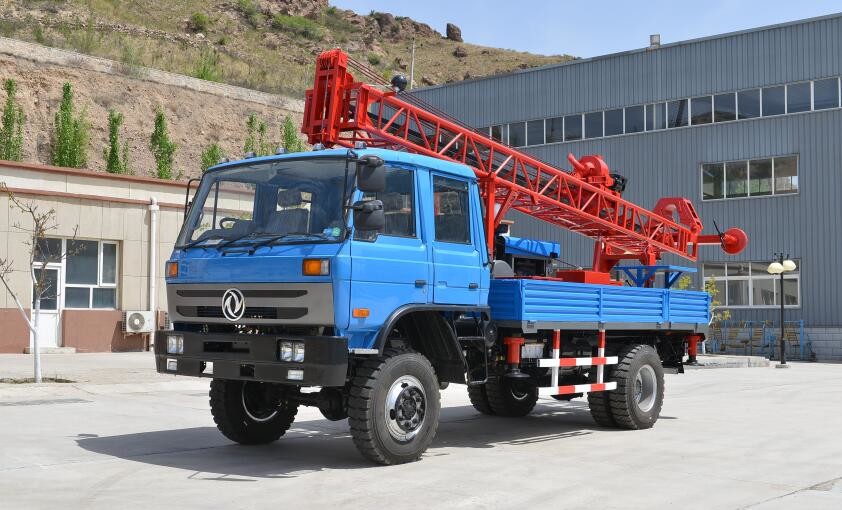

The drill rig is equipped with China famous brand Dongfeng 4x4 off road truck chassis.

The mud pump is BW600, it is mounted on drill rig.

This model can drill both air drilling and mud drilling. Very popular in Africa area.

Tehnical Parameter:

Technical Parameter for GL-III Truck Mounted Wayer well Drilling Rig
Drilling Parameter
Hole diameter:	120--1500(mm)
Hole depth:	400(m)
Run Of Rod:	3,4(m)
Drill rod diameter:	φ73 φ89 φ95 φ133(mm)
Drilling Technology:	Normaland Reverse Circulation for both Mud and Air
Down-The-Hole hammers:	Middle-High-Pressure Air
Performance parameter
Drill Head Inside Diameter:	φ80 φ120
Drill Head lifting Force(kN):	130
Drill Head Spin Speed:	A(Forward:20-33-73,Reverse:13-23-47r/min)
	B(Forward:41-66-146,Reverse:26-43-94r/min)
	B(Forward:36-58-127,Reverse:23-37-80r/min)
Shape Parameters
Dimensions:	(L-W-H) Working conditions 9600×2950×7900(mm)
Transport status:	(L-W-H) 10200×2470×3300(mm)
Supporting Form:	Hydraulic Unit
Mast Up-Down:	Hydraulic Unit
Rig mass:	12500(Kg)
Chassis:	Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive)
Power Unit:	Diesel Engine
Power:	84(kW)
Pump:	BW600/30 Mud Pump
Flow(m³/h):	720 513 335
Pressure(MP):	3 4 5
Main Hoist Lifting Force:	25(kN)
Auxiliary Hoist Lifting Force:	8(kN)
Notes: Drill head spin speed can be selected, A is normal

GL-III Truck Diesel Engine Borehole Drilling Equipment 400m 0

Customer Visting

GL-III Truck Diesel Engine Borehole Drilling Equipment 400m 1

Company Profile

GL-III Truck Diesel Engine Borehole Drilling Equipment 400m 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
