Home /Products/Drill Rig Machines/GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m

GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m

1
MOQ
Negotiable
Price
GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-IIA Truck Mounted Water Well Drill Rig Machines For Hard Rock Drilling 300m
Keyword: Truck Mounted Water Well Drill Rig Machines
Depth: 300m
Mud Pump: Bw450
Transportation Dimension: 7900×2370×7200mm
Diesel Engine: 84kW
Truck Chassis: Dongfeng 4×4
Weight: 9100kg
Highlight:

300m truck mounted drilling rig

,

hard rock truck mounted drilling rig

,

truck mounted water well drilling rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-IIA
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL-IIA Truck Mounted Water Well Drill Rig Machines For Hard Rock Drilling 300m



Description:

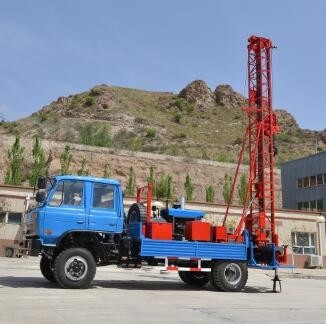

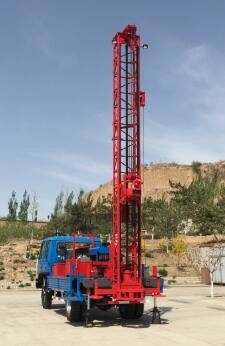

GL-IIA Truck Mounted Water Well Drill Rig Machine is self-propelled type truck chassis.

The drilling rig uses Dongfeng four-wheel drive off road double row seat special chassis, Cummins engine, 190 horsepower, wheelbase 4.5 meters, 1000 steel tires, front axle 3.6 tons, rear axle 9 tons.

The diesel engine, clutch, gearbox, transmission case, reversing box, power head, lifting winch, drill tower, underframe, control system, orifice device, hydraulic tower lifting system, water pump circulating system, generator set, etc. are all installed on the vehicle chassis.

The standard configuration of the drilling rig is to use an independent diesel engine as the drive, or motor drive, which can be added according to customer needs.

This machine can adopt mud drilling and air drilling technology, and is applicable to the construction of clay layer, sand layer and rock layer.



Tehnical Parameter:



Drilling Parameter
Hole diameter:
90--1200(mm)
Hole depth:
250(m)
Run Of Rod:
3,4(m)
Drill rod diameter:
φ60 φ73 φ89 φ95 φ133(mm)
Drilling Technology:
Normaland Reverse Circulation for both Mud and Air
Down-The-Hole hammers:
Middle-High-Pressure Air
Performance parameter
Drill Head Inside Diameter:
φ60 φ80 φ120
Drill Head lifting speed(m/s):
0.37 0.16
Drill Head lifting Force(kN):
45.4 105
Drill Head Spin Speed:
A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)
B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)
Shape Parameters
Dimensions:
(L-W-H) Working conditions 7900×2370×7200(mm)
Transport status:
(L-W-H) 8450×2370×3400(mm)
Supporting Form:
Hydraulic Unit
Mast Up-Down:
Hydraulic Unit
Rig mass:
9100(Kg)
Chassis:
Dong Feng EQ1093 (four-wheel drive)
Power Unit:
Diesel Engine
Power:
42(kW)
Pump:
BW450 Mud Pump
Flow(L/min):
450
Pressure(Mpa)
1.2
Main Hoist Lifting Force:
20.6(kN)
Feed Thrust:
0-15(kN)





GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m 0

Customer Visting

GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m 1

Company Profile

GL-IIA Truck Mounted Drilling Rig Water Well Machines For Hard Rock Drilling 300m 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
