Name: Blasthole Down To Hole Hammer Dhd Sd Ql Mission Numa Cop
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL360SK GL380SK
Price: 3,425.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Air Pressure DTH Drilling Hammers (DHD, SD, QL, Mission, Numa, Cop)

Keyword: High Air Pressure DTH Drilling Hammers

Regular Sizes: 3"/4"/6"/8"/10"/12", Etc.

Shank Type: DHD, SD, QL, Mission, Numa, Cop Etc.

Application: Borehole Drilling, Blasthole Drilling, Etc.

MOQ: 1set

Highlight:

blasthole down to hole hammer

dhd 3 inch down to hole hammer

dth hammer drilling high air pressure

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: GL360SK GL380SK

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

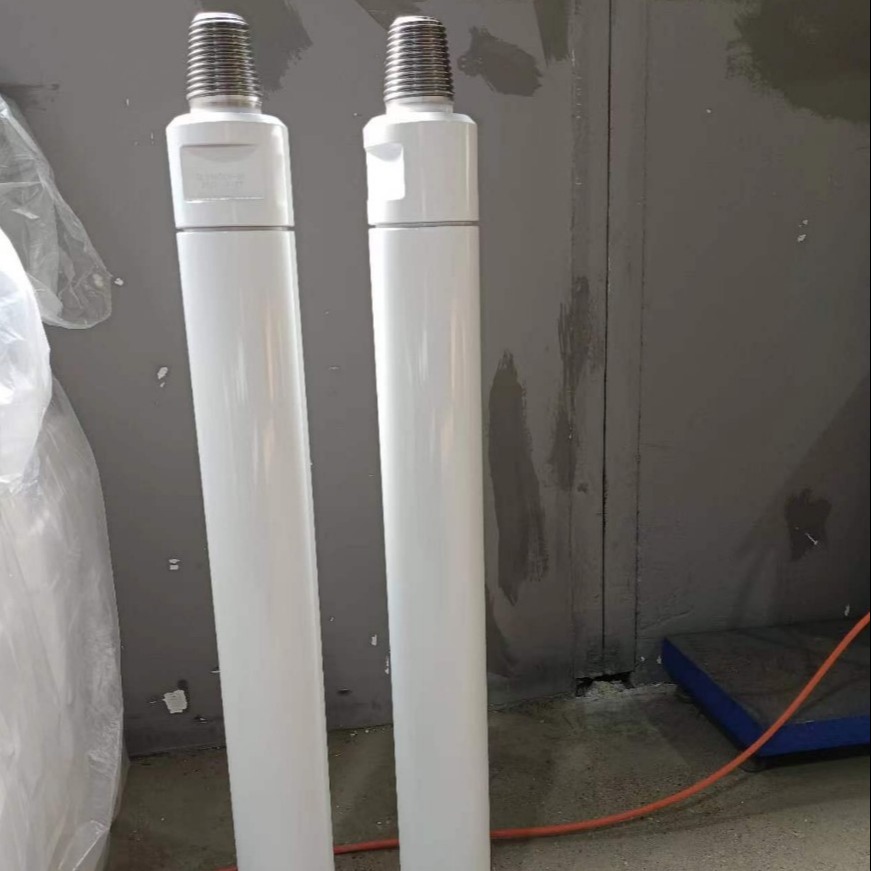

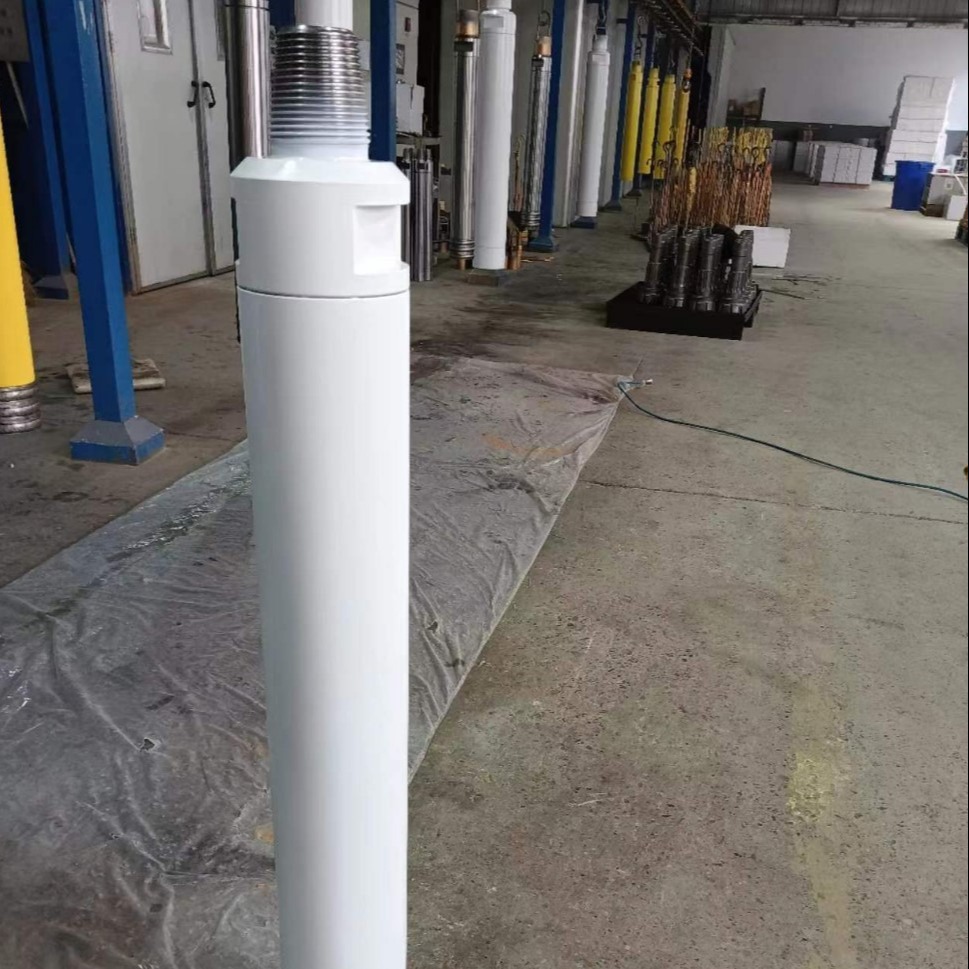

Blasthole Down To Hole Hammer Dhd Sd Ql Mission Numa Cop

Product Description

High Air Pressure DTH Drilling Hammers (DHD, SD, QL, Mission, Numa, Cop)

Description

1, valveless air distribution. More reliable.
2, simple design of the piston, long life.
3, More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4, fewer internal parts, simple structure, longer life, less failure and easier to maintain becayse all the parts are heat treated.
5, It is easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.

Technical Parameter

Hammers	Bit Shank	Connection Thread	Suitable bit	Working pressure	Air consumption

1-3" Middle-low pressure DTH hammers	BR1 BR2 BR3	RD40 box RD50 box API 2 3/8" Reg	¢64-¢76mm ¢70-¢90mm ¢90-¢110mm	0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa	0.7Mpa	4.5m3/min
					1.0Mpa	4m3/min
					1.4Mpa	5m3/min
3" hammers	DHD3.5 COP32/COP34 M30	API 2 3/8"Reg	¢90-¢110mm	1.0-1.5Mpa	1.0Mpa	4.5m3/min
					1.5Mpa	9m3/min
4" hammers	DHD340 COP44 QL40 SD4 M40	API 2 3/8"Reg	¢105-¢130mm	1.0-2.5Mpa	1.0Mpa	6m3/min
					1.8Mpa	10m3/min
					2.4Mpa	15m3/min
5" hammers	DHD350 COP54 QL50 SD5 M50	API 2 3/8"Reg/API 3 1/2"Reg	¢130-¢156mm	1.0-2.5Mpa	1.0Mpa	9m3/min
					1.8Mpa	15m3/min
					2.4Mpa	23m3/min
6" hammers	DHD360 COP64 QL60 SD6 M60	API 3 1/2"Reg	¢152-¢203mm	1.0-2.5Mpa	1.0Mpa	10m3/min
					1.8Mpa	20m3/min
					2.4Mpa	28.5m3/min
8" hammers	DHD380 COP84 QL80 SD8	API 4 1/2"Reg	¢200-¢279mm	1.0-2.5Mpa	1.0Mpa	15m3/min
					1.8Mpa	26m3/min
					2.4Mpa	34m3/min
10" hammers	SD10 NUMA100	API 6 5/8"Reg	¢254-¢330mm	1.0-2.5Mpa	1.0Mpa	22m3/min
					1.8Mpa	40m3/min
					2.4Mpa	55m3/min
12" hammers	DHD1120 SD12 NUMA120 NUMA125	API 6 5/8"Reg	¢305-¢381mm	1.0-2.5Mpa	1.0Mpa	30m3/min
					1.8Mpa	56m3/min
					2.4Mpa	78m3/min

Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.
