Name: 4′′ 5′′ 6′′ 8′′ 10′′12′′ Dth Hammer High Pressure For Mining Compatible With Bit
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 4′′ 5′′ 6′′ 8′′ 10′′12′′
Price: 3,425.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: China Factory 4′′ 5′′ 6′′ 8′′ 10′′12′′ High Pressure DTH Drilling Hammer For Mining Compatible With Bit

Keyword: 4′′ 5′′ 6′′ 8′′ 10′′12′′ High Pressure DTH Drilling Hammer

Sizes: 4′′ 5′′ 6′′ 8′′ 10′′12′′

Shank Type: Cop, DHD, Ql, Mission, SD, Etc.

Application: Borehole Air Drilling, Blasthole Drilling, Etc.

MOQ: 1set

Highlight:

4′′ dth hammer

mining high pressure dth hammer

5′′ down the hole hammer

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: 4′′ 5′′ 6′′ 8′′ 10′′12′′

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

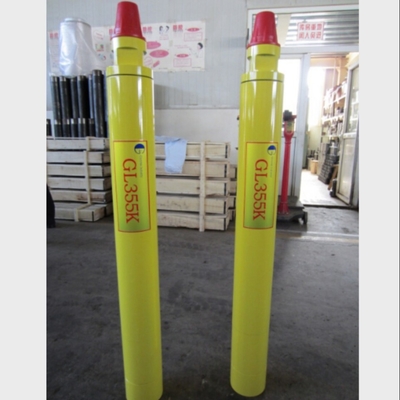

4′′ 5′′ 6′′ 8′′ 10′′12′′ Dth Hammer High Pressure For Mining Compatible With Bit

Product Description

China Factory 4′′ 5′′ 6′′ 8′′ 10′′12′′ High Pressure DTH Drilling Hammer for Mining Compatible with Bit

Description

DTH Hammer has a wide range of use in all kinds of hard and abrasive rocks.

follwing features:

1,DTH hammers are used for blast hole drilling and blasting, mainly applied in Mining,

2,Marble quarry or well drilling and other construction projects.

3,New products designed based on mining condition in china, improving by advanced technology from global market.

4,Superior materials, advanced process,guaranteed quality.

5,Faster drillinq rate.

6,Hardness can be enhaced to expand the lifespan of hammer, and lower the cost.

7,Huge impulse with low consumption of electricity.

8,The modern theory is adopted in the structural design, which makes the stress.
9,wave duration longer, the stress amplitudeis lower, and the piston life is long.

Technical Parameter

Type	Model	Length	Weight	External Dia.(mm)	Hole Range
Type	Model	(mm)	(kg)	External Dia.(mm)	(mm)
3.5 inch	DHD3.5	930	25	∅82	∅90-110
4 inch	DHD340	1030	39	∅99	∅110-135
	SP480	1084	40.5	∅99
	QL4	1097	41	∅99
	Mission40	1005	40	∅99
5 inch	DHD350	1214	76.5	∅125	∅135-155
	SP580	1175	72.5	∅125
	QL5	1147	73	∅125
	Mission50	1110	68.5	∅125
6 inch	DHD360	1248	100	∅142	∅155-190
	SP680	1261	100	∅142
	QL6	1212	95	∅146
	Mission60	1161	90	∅146
8 inch	D85	1492	188	∅180	∅195-254
	SP882	1463	192	∅180
	QL8	1465	182	∅180
	Mission80	1338	176	∅180
10 inch	SP1080	1502	290	∅226	∅254-311
10 inch	NUMA100	1510	288	∅226	∅254-311
12 inch	DHD1120	others pls show me your request
	Numa120
	Numa 125

Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.

Company Profile

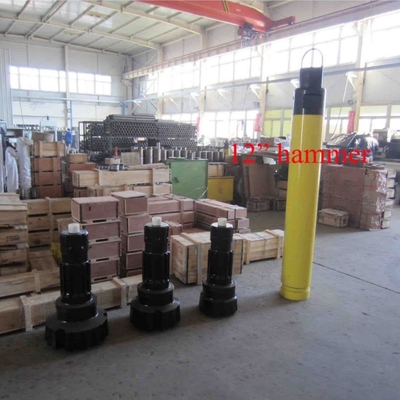

4′′ 5′′ 6′′ 8′′ 10′′12′′ Dth Hammer High Pressure For Mining Compatible With Bit 1

Glorytek Industry ( Beijing) Co., Ltd is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China. We have rich experience in this field of DTH hammers and bits for 20 years. Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customer all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270

Mobile:+86-13426420230
