Home /Products/DTH Drilling Hammer/Mining 127mm Dth Drilling Hammer SGS Certification

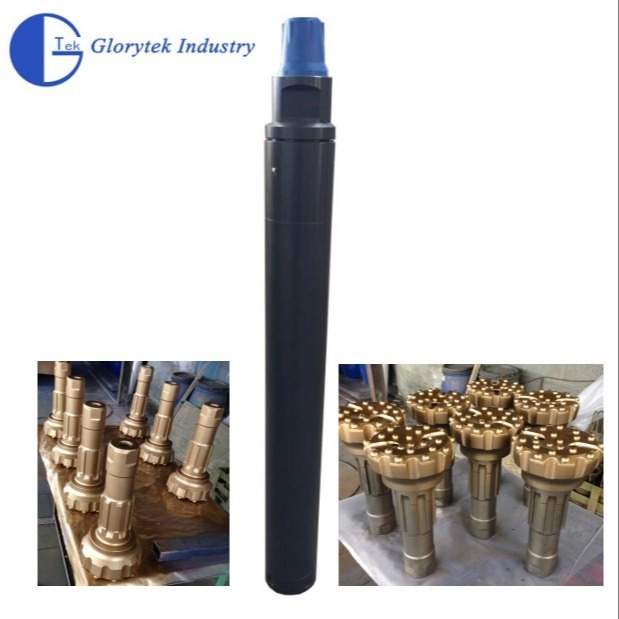

Mining 127mm Dth Drilling Hammer SGS Certification

1pc
MOQ
Negotiable
Price
Mining 127mm Dth Drilling Hammer SGS Certification
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 4'' 5'' 6'' 8'' 10''12'' High Air Pressure DTH Drilling Hammer For Mining Compatible With Bit Shank DHD, Ql, Mission
Keyword: 4'' 5'' 6'' 8'' 10''12'' DTH Drilling Hammers
Regular Sizes: 4'' 5'' 6'' 8'' 10''12'', Etc.
Bit Shank: DHD, SD, QL, Mission, Numa, Cop Etc.
Application: Borehole Drilling, Blasthole Drilling, Mining Etc.
MOQ: 1set
Highlight:

127mm dth drilling hammer

,

sgs certification dth drilling hammer

,

127mm dth down the hole hammer
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: SGS, TUV
Model Number: GL360SK GL380SK
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

4'' 5'' 6'' 8'' 10''12'' High Air Pressure DTH Drilling Hammer for Mining Compatible with Bit Shank DHD, Ql, Mission



Advantages:
1. Our products can match over 95% against the original products.
2. High quality raw material, with premium hardened procedures for long life.
3. Full production chain to secure stable and prompt production leadtime.
4. Experienced senior technicians and long year experienced workers and engineers.
5. Customized acceptable and quick and efficient service.



Technical Parameter


Hammers		 Bit Shank Connection Thread Suitable bit Working pressure Air consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3		 RD40 box
RD50 box
API 2 3/8" Reg
¢64-¢76mm
¢70-¢90mm
¢90-¢110mm		 0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa		 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" hammers DHD3.5
COP32/COP34
M30		 API 2 3/8"Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
1.5Mpa 9m3/min
4" hammers DHD340
COP44
QL40
SD4
M40		 API 2 3/8"Reg ¢105-¢130mm 1.0-2.5Mpa 1.0Mpa 6m3/min
1.8Mpa 10m3/min
2.4Mpa 15m3/min
5" hammers DHD350
COP54
QL50
SD5
M50		 API 2 3/8"Reg/API 3 1/2"Reg ¢130-¢156mm 1.0-2.5Mpa 1.0Mpa 9m3/min
1.8Mpa 15m3/min
2.4Mpa 23m3/min
6" hammers DHD360
COP64
QL60
SD6
M60		 API 3 1/2"Reg ¢152-¢203mm 1.0-2.5Mpa 1.0Mpa 10m3/min
1.8Mpa 20m3/min
2.4Mpa 28.5m3/min
8" hammers DHD380
COP84
QL80
SD8		 API 4 1/2"Reg ¢200-¢279mm 1.0-2.5Mpa 1.0Mpa 15m3/min
1.8Mpa 26m3/min
2.4Mpa 34m3/min
10" hammers SD10
NUMA100		 API 6 5/8"Reg ¢254-¢330mm 1.0-2.5Mpa 1.0Mpa 22m3/min
1.8Mpa 40m3/min
2.4Mpa 55m3/min
12" hammers DHD1120
SD12
NUMA120
NUMA125		 API 6 5/8"Reg ¢305-¢381mm 1.0-2.5Mpa 1.0Mpa 30m3/min
1.8Mpa 56m3/min
2.4Mpa 78m3/min

Packing of DTH Drilling Hammer



Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.



Company Profile



Mining 127mm Dth Drilling Hammer SGS Certification 0

Glorytek Corporation located in China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades.

We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.



Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
