Name: Mission Shank Dth Drilling Hammer 3 Inches To 12 Inches
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: DHD, SD, Ql, Mission, Numa, Cop
Price: 3,425.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 3inch To 12inch DTH Drilling Hammers With DHD/Ql/Cop/Misson/SD Shanks For Water Well Drilling

Keyword: DTH Drilling Hammers With DHD/Ql/Cop/Misson/SD Shank

Regular Sizes: 3inch To 12inch

Shank: DHD, SD, Ql, Mission, Numa, Cop, Etc.

Suitable Projects: Blasting Drilling Water Well Drilling, Etc.

MOQ: 1set

Highlight:

3 inches dth drilling hammer

6 inches dth drilling hammer

mission dth down the hole hammer

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: DHD, SD, Ql, Mission, Numa, Cop

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

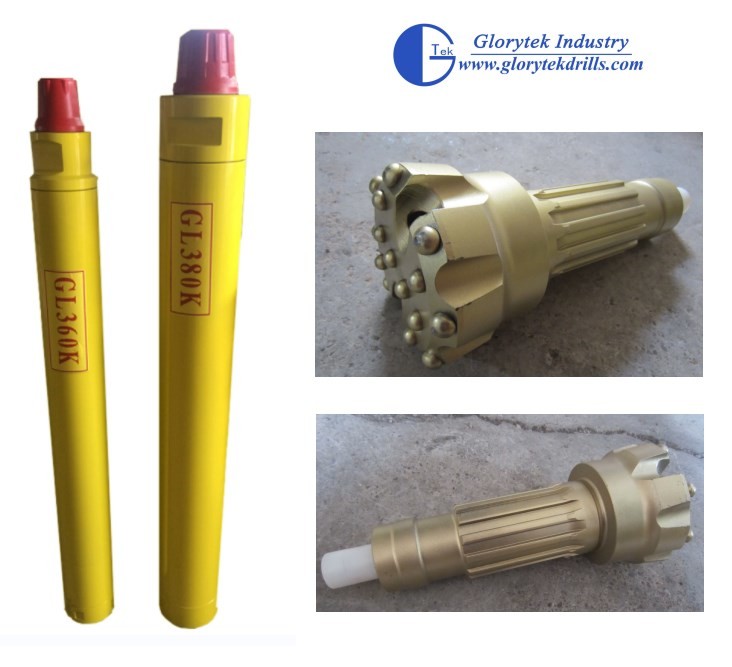

Mission Shank Dth Drilling Hammer 3 Inches To 12 Inches

Product Description

3inch to 12inch DTH Drilling Hammers with DHD/Ql/Cop/Misson/SD Shanks for Water Well Drilling

DTH (down-the-hole) drilling involves a drilling hammer at the bottom of a drill string, the hammer is powered by compressed air transmitted via drilling rod to drive piston and produce impact power, which is then delivered into rocks for drilling and crushing. DTH drilling can be applied in mining, quarrying, water well drilling, foundation piling, etc. DTH hammer uses compressed air to produce impact power, thus to drive drill bits to crush rocks.

Features
• Extraordinary penetration rate
• Less air, more production
• Less downtime, longer duration
• Premium material, fine CNC and heat-treatment manufacturing processes and optimized design;
• Good stability and reliability;
• High impact frequency;
• Lowered compressed air consumption;
• Long lifespan

Applications
Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc.

Technical Specifications:

COP 34, COP 44, COP 54, COP 64 Gold, COP 64, COP 84L, COP 84 hammers

Hammer	COP 34	COP 44	COP 54	COP 64 Gold	COP 64	COP 84L	COP 84
Type	Part No.	Part No.	Part No.	Part No.	Part No.	Part No.	Part No.
Standard	9703-03-00	9704-03-00	9705-03-00	9706-5-30	9706-05-00	9708-8-8	9708-08-00
Standard	9703-03-00	9704-03-00	9705-05-00	9706-5-30	9706-05-00	9708-8-8	9708-08-00
Q	9703-3-4	9704-3-4	9705-3-4	9706-05-34	9706-5-4
Q	9703-3-4	9704-3-4	9705-5-4	9706-05-34	9706-5-4
QHD			9705-03-06 API Reg		9706-05-06 API Reg
			9705-05-06 API Reg	9706-05-36 API Reg
				9706-07-36 API IF
WHD			9705-03-20 (API Reg)

Effective length	954 mm	958 mm	1069 mm	1163 mm	1213mm	1230 mm	1323 mm
External diameter	83.5 mm	98 mm	120 mm	142 mm	142 mm	160 mm	178 mm
External diameter HD			126 mm	146 mm	146 mm
Hammer weight	27 kg	38 kg	57 kg	96 kg	95 kg	139 kg	158 kg
Hammer weight HD			67 kg	109 kg	109 kg
Recommended bit size	95-105 mm	110-125 mm	134-152 mm	156-178 mm	156-178 mm	191-219mm	203-254 mm
Rec. bit size HD hammer			140-152 mm	165-178 mm	165-178 mm
Rit shank	COP 34 (Secoroc 3.5")	IR340A	IR350R	IRQL60	IR 360 alt. Mission SD6/ 53-15	Mission SD8/ 63-15	IR380
Top sub thread	2 3 / 6 API Reg.	2 3 / 6 API Reg	2 3 / 6 API Reg	3 1 / 2 API Reg	3 1 / 2 API Reg	4 1 / 2 API Reg	4 1 / 2 API Reg
Top sub thread	2 3 / 6 API Reg.	2 3 / 6 API Reg	3 1 / 2 API Reg	3 1 / 2 API IF	3 1 / 2 API Reg	4 1 / 2 API Reg	4 1 / 2 API Reg
Wrench flat	65 mm	65 mm	65 mm	102 mm	102 mm	120 mm	140 mm
Wrench flat	65 mm	65 mm	95 mm	102 mm	102 mm	120 mm	140 mm
Wrench flat HD			95 mm
Wrench flat HD			102mm
Working pressure	6-25 bar (87-360 psi)	6-25 bar (87-360 psi)	6-25 bar (87-360 psi)	6-30 bar (87-430 psi)	6-25 bar (87-360 psi)	6-25 bar (87-360 psi)	6-20 bar (87-290 psi)

Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.

Company Profile

Mission Shank Dth Drilling Hammer 3 Inches To 12 Inches 0

Glorytek Corporation located in China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades.

We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our Services
1. OEM & ODM , as your request .
2. Best quality control : we have our own experienced QC team and the third party test .
3.Quick response .
4.Quick delivery .
5.Best after sevice

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270

Mobile:+86-13426420230
