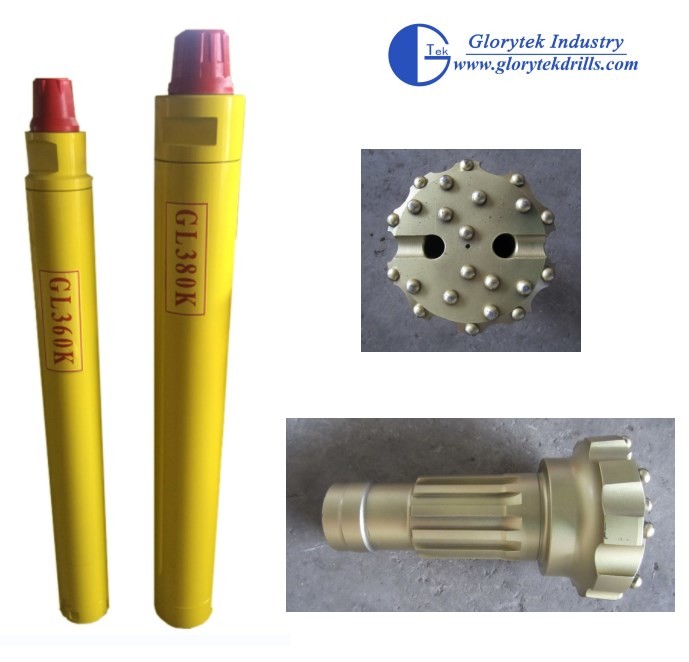

Water Well Hard Rock 5" Dth Drilling Hammer High Efficiency

1pc
MOQ
Negotiable
Price
Water Well Hard Rock 5" Dth Drilling Hammer High Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DTH Hammer, Water Hammer, Down The Hole Hammer, DTH Drilling Hammers For Water Well Drilling And Hard Rock Drilling
Keyword: Water Hammer, Down The Hole Hammer, DTH Drilling Hammers
Sizes: 3"-12"
Shank Types: DHD, SD, Ql, Mission Etc.
Projects: Well Drilling And Hard Rock Drilling
MOQ: 1set
Highlight:

5" dth drilling hammer

,

high efficiency dth drilling hammer

,

5" dth down the hole hammer
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: SGS, TUV
Model Number: DHD, SD, Ql, Mission, Numa, Cop
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

DTH Hammer, Water Hammer, Down The Hole Hammer, DTH Drilling Hammers for Water Well Drilling and Hard Rock Drilling



Our hammer and bits are made of high quality alloy steel with advanced heat treatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.
All the products are manufactured as per the international standard and well compatible with the brand of Atlas Copco, Ingersoll-Rand, Sandvik etc.



This high air pressure DTH hammer work without footvalve is designed and developed by our own, which is the one of the most advanced DTH hammer in the world.

1. 20 years manufacturing experience
2. Material: Carbide

It has the following advantages:
1. Avoid the problem happens on foot valve such as Fracture, expansion and contraction.
2. Lower air comsumption and higher impact frequency, 15%-30% higher drilling efficiency than the bit with foot valve.
3. Simple structure and less spare parts, which means easier and cheaper maintenance.
4. Heat-hardened spare parts, makes longer serving life and less problem.
5. Thread connection for top sub and drive chuck makes easiser disassembly.



Technical Specifications:


Low Pressure DTH Hammers
Item
GL65B
GL70
GL76
GL80
GL90
GL90-1
GL110
GL150
GL170
Drilling Dia.
(Φ/mm)
68-70
72-74
74-76
80-82
90-130
90-130
110-150
150-185
170-250
Hammer Length(mm)
745
803
766
796
796
796
838
908
1023
Outside Dia.
(Φ/mm)
61.2



67.2
67.2
72
80.2
80
98
137
156
Weight(kg)
13
14
15
17
20
20
30
75
90
Working Pressure(Mpa)
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
0.5-0.7
Air
Consumption
(M3/Min.)
2.5
3
3
5
6
5.5
11
17
19.5
Torque(N.M)
51
70
75
81
110
120
180
340
420
Impact
Frequency (Times/Min.)
≥810
≥810
≥810
≥800
≥820
≥820
≥830
≥800
≥790
Connection 1
M4×10×1.5
M48.8×4.2
M48×10×2
M48×10×2
M48×10×2
M48×10×2
API 2-3/8”
76×10×3
M100×28×10
Connection 2
Φ
37-4
Φ43-6
Φ44-4
Φ50-6
Φ54-6
Φ54-6
Φ65-6
Φ90-6
Φ98-6
High Pressure DTH Hammers
Item
GL345A
GL355K
GL360K
GL380K
Drilling Dia. (ф/mm)
105-130
140-152
165-219
203-350
Hammer Length(mm)
1034
1098
1372
1504
Outside Dia.(ф/mm)
98
124
152
180
Weight(kg)
39
70
92
230
Working Pressure(Mpa)
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air Consumption (M3/Min.)
3.5-15
4.5-18
43734
9.6-24.8
Torque(N.M)
335
800
1150
1870
Impact Frequency (Times/Min.)
≥800
840-1500
950-1650
1100-1550
Connection 1
API 2-3/8
API 2-3/8
API 3-1/2
API 4 1-2
Connection 2
Ф64-8
Ф84-8
Ф99.5-8
ф128-10

Packing of DTH Drilling Hammer



Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.



Company Profile



Water Well Hard Rock 5" Dth Drilling Hammer High Efficiency 0

Glorytek Corporation located in China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades.

We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.



FAQ:


Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
