Home /Products/DTH Drilling Hammer/4 Inch Dhd Hammer For Water Well Drilling And Hard Rock Drilling

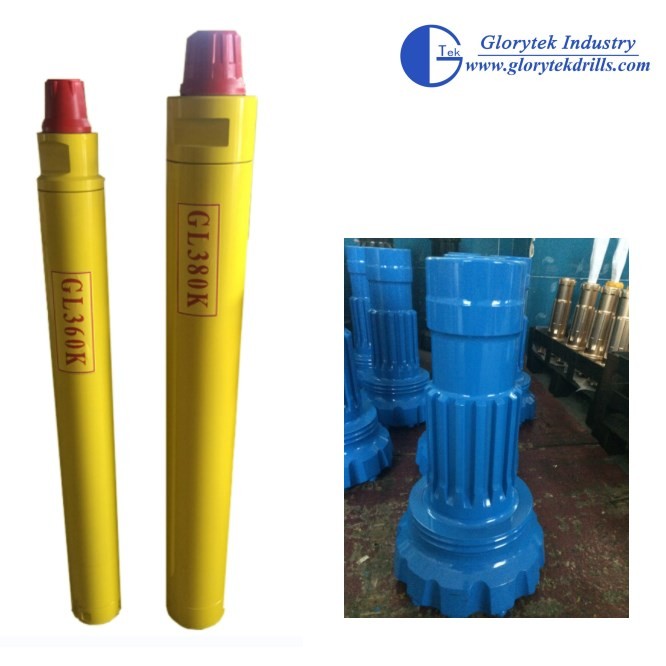

4 Inch Dhd Hammer For Water Well Drilling And Hard Rock Drilling

1pc
MOQ
Negotiable
Price
4 Inch Dhd Hammer For Water Well Drilling And Hard Rock Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DTH Hammer, Water Hammer, Down The Hole Hammer, DTH Drilling Hammers For Water Well Drilling And Hard Rock Drilling
Keyword: Water Hammer, Down The Hole Hammer, DTH Drilling Hammers
Sizes: 3"-12"
Shank Types: DHD, SD, Ql, Mission Etc.
Projects: Well Drilling And Hard Rock Drilling
MOQ: 1set
Highlight:

4 inch dhd hammer

,

water well drilling dhd hammer

,

4inch dth down the hole hammer
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: SGS, TUV
Model Number: DHD, SD, Ql, Mission, Numa, Cop
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

DTH Hammer, Water Hammer, Down The Hole Hammer, DTH Drilling Hammers for Water Well Drilling and Hard Rock Drilling



Glorytek can provide CIR,DHD, QL,SD,Mission, etc. series of DTH Hammer and bits, that can compatible with Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.



This high air pressure DTH hammer work without footvalve is designed and developed by our own, which is the one of the most advanced DTH hammer in the world.

1. 20 years manufacturing experience
2. Material: Carbide

It has the following advantages:
1. Avoid the problem happens on foot valve such as Fracture, expansion and contraction.
2. Lower air comsumption and higher impact frequency, 15%-30% higher drilling efficiency than the bit with foot valve.
3. Simple structure and less spare parts, which means easier and cheaper maintenance.
4. Heat-hardened spare parts, makes longer serving life and less problem.
5. Thread connection for top sub and drive chuck makes easiser disassembly.



Technical Specifications:

High Pressure DTH Hammers
Item
GL345A
GL355K
GL360K
GL380K
Drilling Dia. (ф/mm)
105-130
140-152
165-219
203-350
Hammer Length(mm)
1034
1098
1372
1504
Outside Dia.(ф/mm)
98
124
152
180
Weight(kg)
39
70
92
230
Working Pressure(Mpa)
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air Consumption (M3/Min.)
3.5-15
4.5-18
43734
9.6-24.8
Torque(N.M)
335
800
1150
1870
Impact Frequency (Times/Min.)
≥800
840-1500
950-1650
1100-1550
Connection 1
API 2-3/8
API 2-3/8
API 3-1/2
API 4 1-2
Connection 2
Ф64-8
Ф84-8
Ф99.5-8
ф128-10

Packing of DTH Drilling Hammer



Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.



Company Profile



4 Inch Dhd Hammer For Water Well Drilling And Hard Rock Drilling 0

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.



FAQ:


Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.



Jane Cheng
Sales Representative



Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270

Mobile:+86-13426420230

Tag:

Water Well DTH Drilling Hammer

Rock rc drilling hammer

DTH Reverse Circulation Hammer
