Name: 12 Inch Dth Drilling Hammer For Deep Exploration Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: DHD, SD, Ql, Mission, Numa, Cop
Price: 3,425.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Water Well Drilling Down Hole Hammer DTH Drilling Hammers For Deep Exploration Drilling

Keyword: DTH Drilling Hammers For Deep Exploration Drilling

Sizes: 3"-12"

Shank Types: DHD, SD, Ql, Mission Etc.

Projects: Deep Rock Drilling

MOQ: 1set

Highlight:

12 inch dth drilling hammer

deep exploration dth drilling hammer

12inch dth down the hole hammer

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: DHD, SD, Ql, Mission, Numa, Cop

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

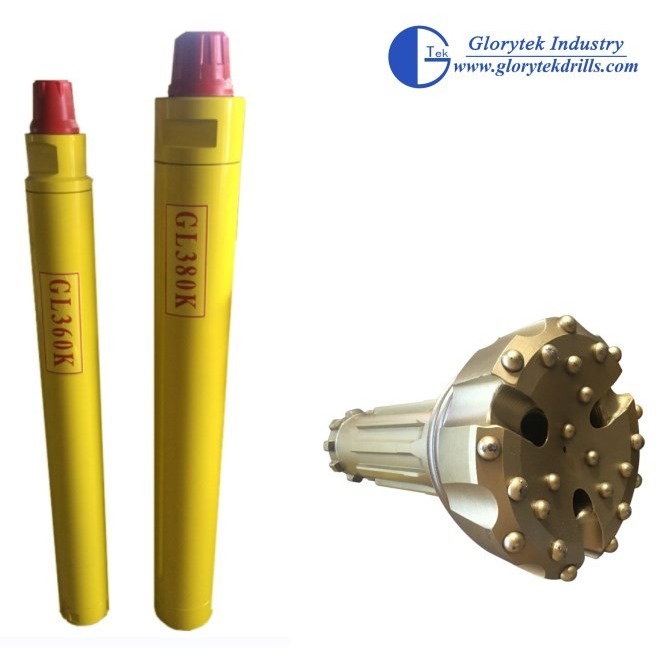

12 Inch Dth Drilling Hammer For Deep Exploration Drilling

Product Description

Water Well Drilling Down Hole Hammer DTH Drilling Hammers for Deep Exploration Drilling

Glorytek can provide CIR,DHD, QL,SD,Mission, etc. series of DTH Hammer and bits, that can compatible with Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

Application
1. mine and quarry
2. road construction for the drilling and blasting work
3. water well drilling
4. slope protection

Technical Specifications:

High Pressure DTH Hammers
Item	GL345A	GL355K	GL360K	GL380K
Drilling Dia. (ф/mm)	105-130	140-152	165-219	203-350
Hammer Length(mm)	1034	1098	1372	1504
Outside Dia.(ф/mm)	98	124	152	180
Weight(kg)	39	70	92	230
Working Pressure(Mpa)	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1
Air Consumption (M3/Min.)	3.5-15	4.5-18	43734	9.6-24.8
Torque(N.M)	335	800	1150	1870
Impact Frequency (Times/Min.)	≥800	840-1500	950-1650	1100-1550
Connection 1	API 2-3/8	API 2-3/8	API 3-1/2	API 4 1-2
Connection 2	Ф64-8	Ф84-8	Ф99.5-8	ф128-10

Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.

Company Profile

12 Inch Dth Drilling Hammer For Deep Exploration Drilling 0

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

Pre-sale service:

1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type

After-sale Service:

Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.

Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Technical Support will be available in any time. We could provide the professional suggestion for you.

Only support to help solve the problem.

Shipping spare parts immediately if requested,

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270

Mobile:+86-13426420230
