Name: DHD360 Borehole Hard Rock Dth Drilling Hammer With Drill Bits
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: DHD, SD, Ql, Mission, Numa, Cop
Price: 3,425.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Efficiency High Pressure DHD360 DTH Drilling Hammers For Borehole Drilling Hard Rock Drilling With Drill Bits

Keyword: DHD360 DTH Drilling Hammers

Hammer Sizes: 6"

Shank Types: DHD, SD, Ql, Mission Etc.

Projects: Borehole Rock Drilling

MOQ: 1set

Highlight:

dhd360 dth drilling hammer

hard rock dth drilling hammer

borehole dth down the hole hammer

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: DHD, SD, Ql, Mission, Numa, Cop

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

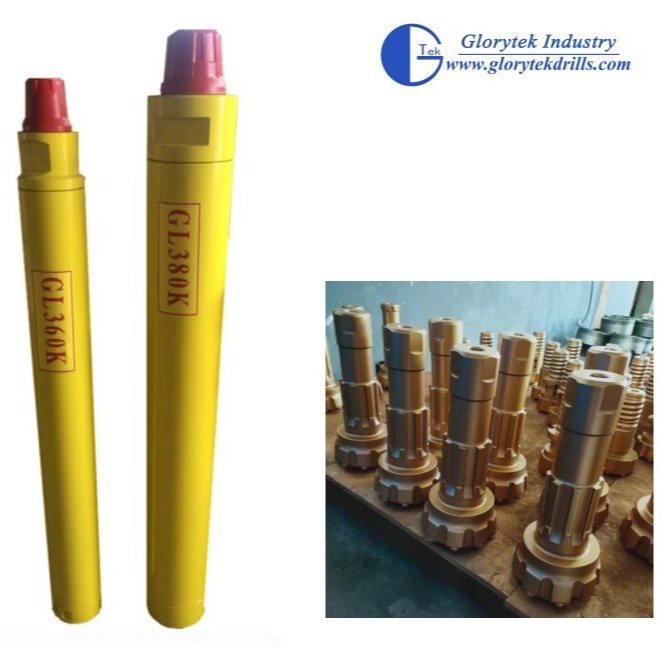

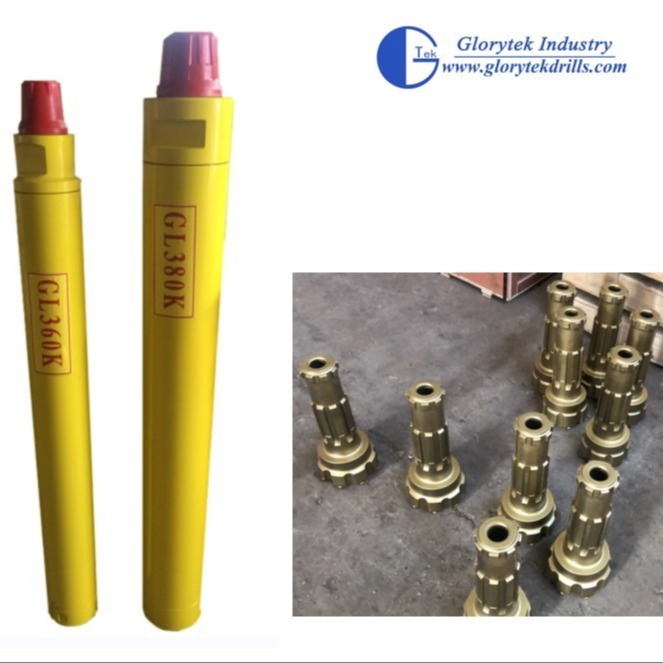

DHD360 Borehole Hard Rock Dth Drilling Hammer With Drill Bits

Product Description

High Efficiency High Pressure DHD360 DTH Drilling Hammers for Borehole Drilling Hard Rock Drilling with Drill Bits

Glorytek mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, dth hammer, dth bit, crushers, water meters and so on.We are your stable and reliable partner!

Application:

1. The piston has a simple structure and is not easily damaged.

2. Ideal energy transfer, fast drilling speed, low air consumption and low fuel consumption.

3. The parts used are few, the structure is simple, and all parts are hardened, so it has a long working life, few failures and convenient maintenance.

4. The joint and the clamping sleeve are connected with the outer cylinder by threads, which is easy to disassemble.

Technical Specifications:

No	Item	Data
1	Length(Less bit)	1210mm
2	Weight	106Kg
3	Outer Diameter	￠148mm
4	Connection Thread	API 3 1/2"REG
5	Bit Shank	ND65A
6	Hole Range	￠158-￠203mm
7	Working Pressure	1.2-2.5 Mpa
8	Recommended Rotation Speed	30-60 r/min
9	Air Consumption 5.5m³/min 9m³/min	16m³/min 23m³/min

Packing of DTH Drilling Hammer

Packing: standard exporting packing.

Delivery: Normally 10 days after your advanced payment.

Company Profile

DHD360 Borehole Hard Rock Dth Drilling Hammer With Drill Bits 0

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

Pre-sale service:

1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type

After-sale Service:

Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.

Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Technical Support will be available in any time. We could provide the professional suggestion for you.

Only support to help solve the problem.

Shipping spare parts immediately if requested,

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270

Mobile:+86-13426420230
