High Pressure and Efficiency DTH Hammer Down the Hole Water Well Drilling Button Bits Tools
1.Description:
-Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.
-Powered by compressed air medium, the use of compressed air energy to produce a continuous bottom of the hole impact load power tool. Compressed air and can double as wash Kong media. Pneumatic impactor with high pressure and low pressure, valve and valveless of the points.
-Usually pneumatic impactor directly connected with carbide drill bit way to impact crushed rock, low-speed rotary drilling without coring comprehensive.
2.Applications:
It is widely used in earth and stone technology, mining, well drilling, construction technology, drilling well, side column support, etc. The downhole drill is a type of drill used in connection with the borehole.
3.Specifications:

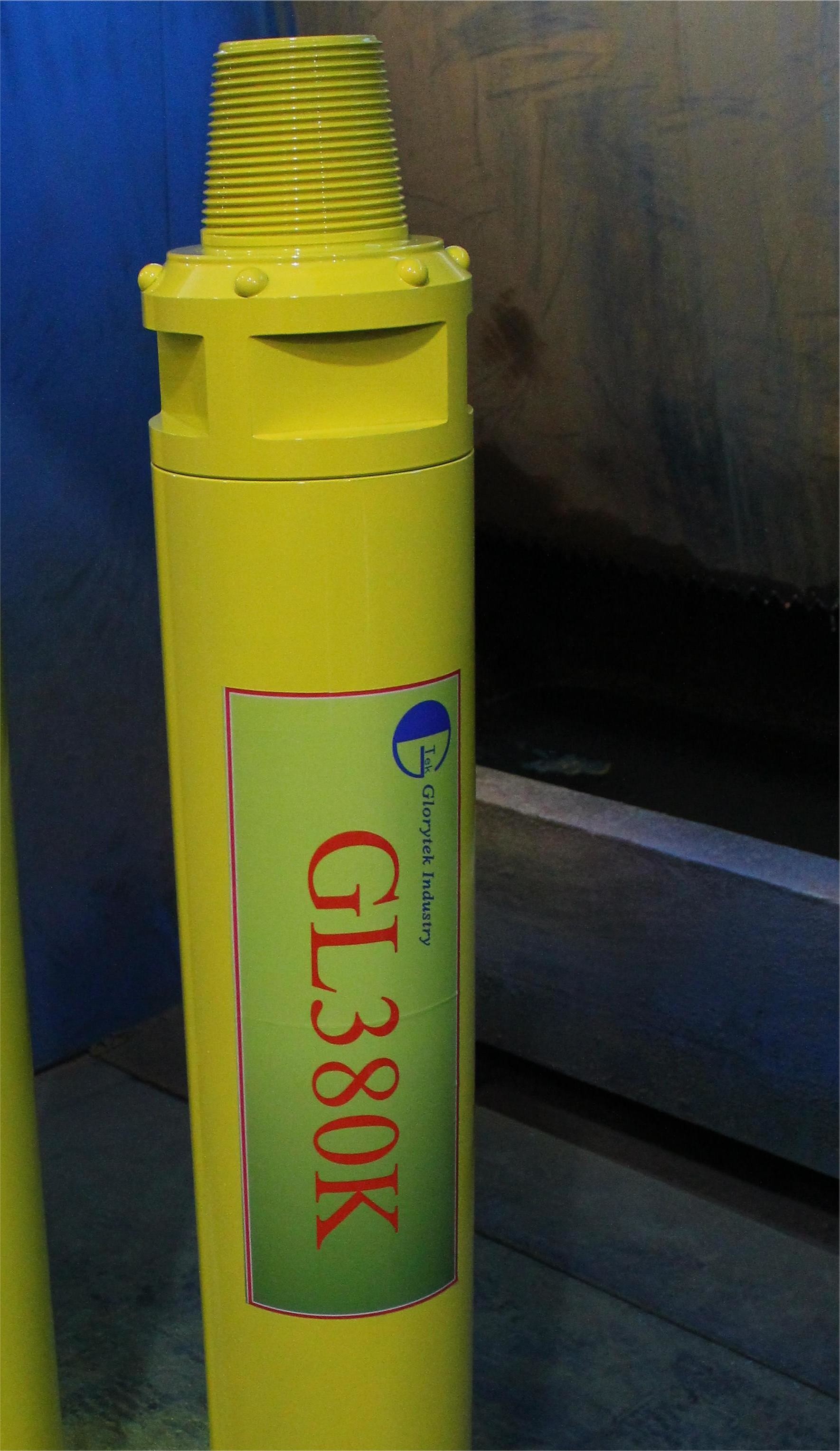

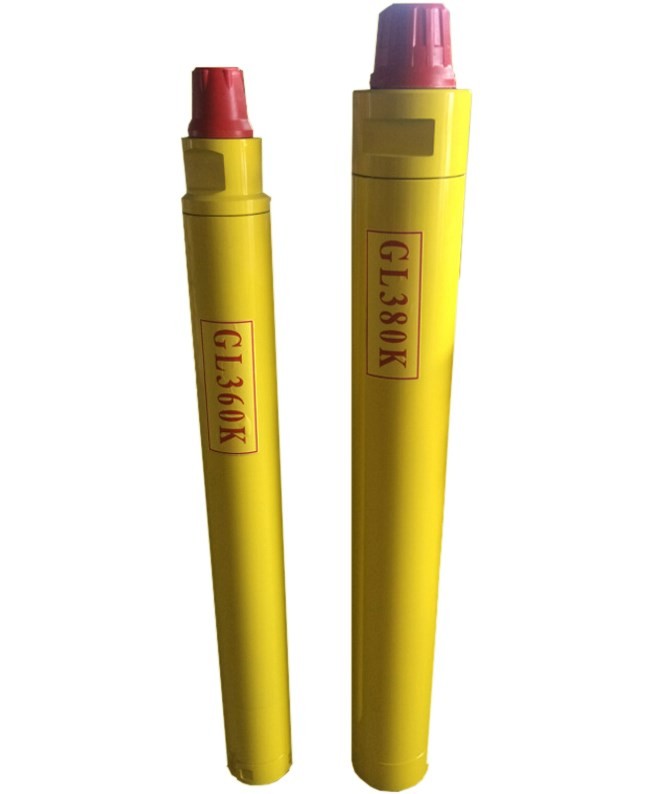

High Pressure DTH Hammers
|
| Item |
GL345A |
GL355K |
GL360K |
GL380K |
| Drilling Dia. (ф/mm) |
105-130 |
140-152 |
165-219 |
203-350 |
| Hammer Length(mm) |
1034 |
1098 |
1372 |
1504 |
| Outside Dia.(ф/mm) |
98 |
124 |
152 |
180 |
| Weight(kg) |
39 |
70 |
92 |
230 |
| Working Pressure(Mpa) |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
| Air Consumption (M3/Min.) |
3.5-15 |
4.5-18 |
9-26 |
9.6-24.8 |
| Torque(N.M) |
335 |
800 |
1150 |
1870 |
| Impact Frequency (Times/Min.) |
≥800 |
840-1500 |
950-1650 |
1100-1550 |
| Connection 1 |
API 2-3/8 |
API 2-3/8 |
API 3-1/2 |
API 4 1-2 |
| Connection 2 |
Ф64-8 |
Ф84-8 |
Ф99.5-8 |
ф128-10 |
|
|
Related Product
Our main products:
1. DTH Hammer, DTH bit, Drill rod
2. Top hammer bit, Shank adapter, Drill pipe, coupling.
3. Taper button bit, chisel bit, cross bit,taper rod.

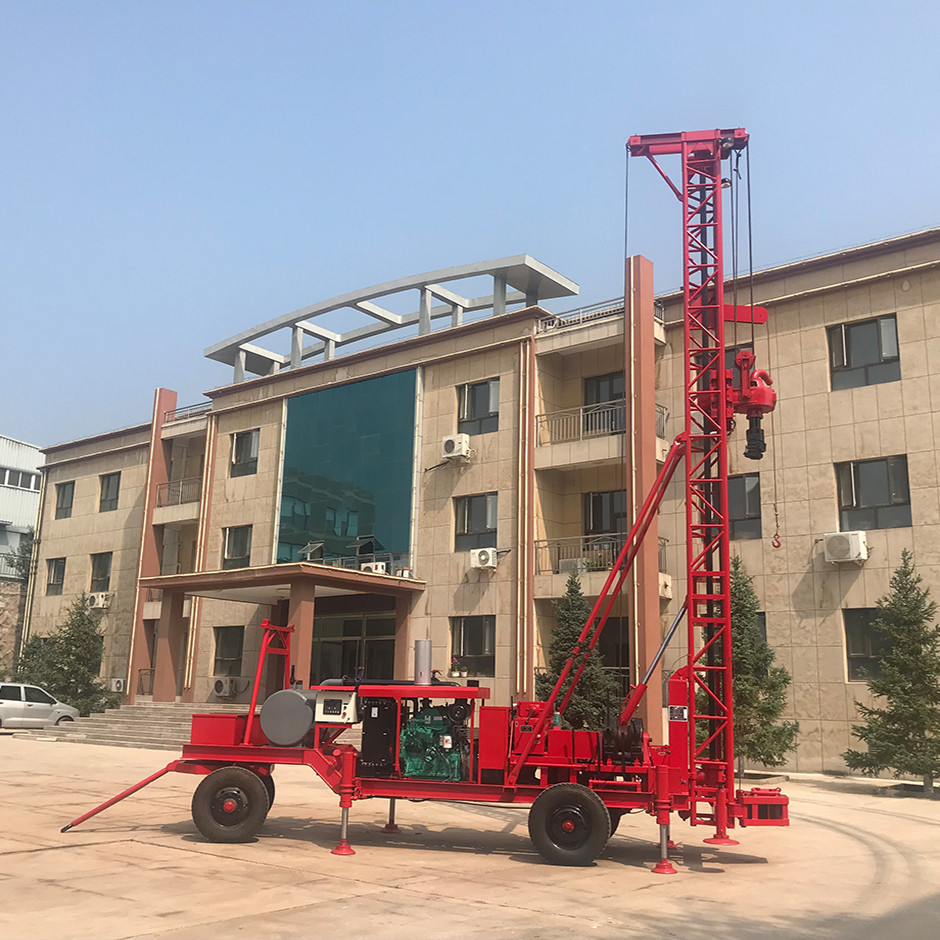

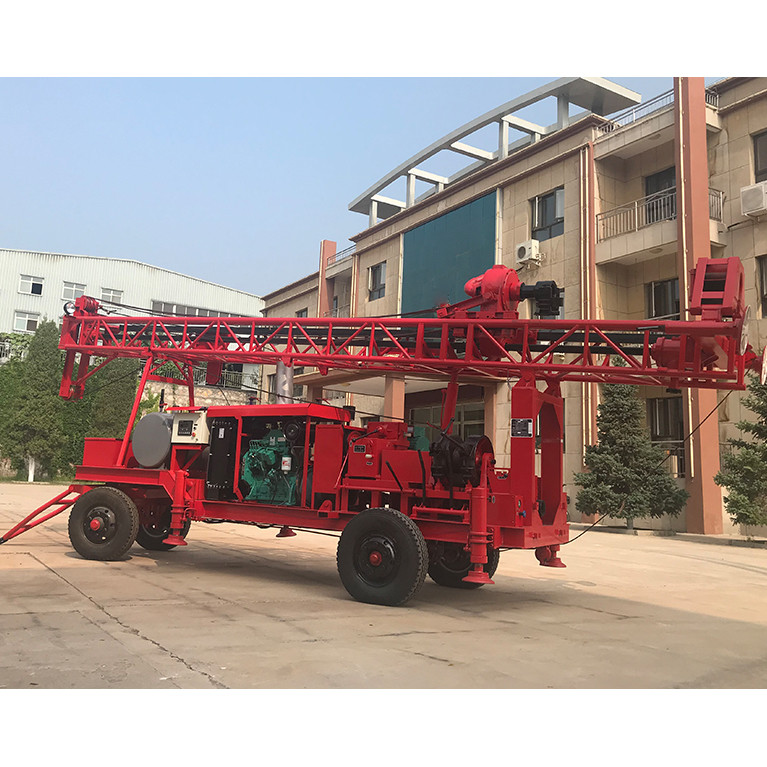

4. Air compressor and drilling machine.
