Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure

1 piece
MOQ
To be negotiated
Price
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Type: DTH Hammer,High Efficient High Pressure Dth Hammer
Machine Type: Downhole Tools
Use: Well Drilling,Coal Mining,DTH Drilling,coal Drilling
Color: Yellow Or Customized
Drilling Hole Diameter: 105-130mm
Highlight:

rock blasting dth drilling hammer

,

dth drilling hammer high air pressure

,

rock blasting dth hammer

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: GL345A
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5-7 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per month
Product Description

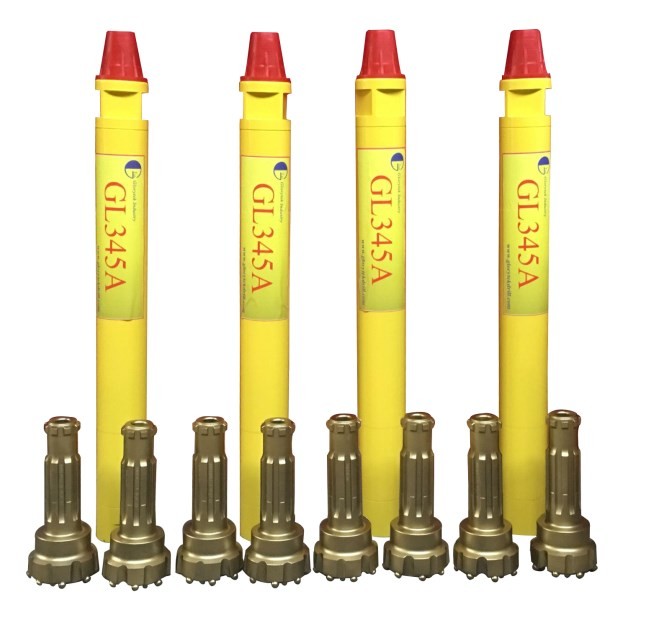

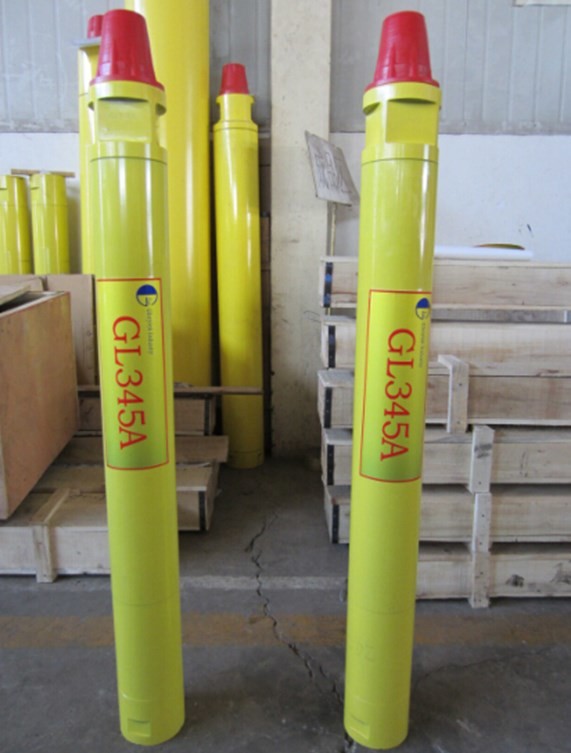

High Air Pressure Rock Blasting Water Well Drilling DTH Hammer GL345A
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 0
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 1


1.Description:
Our hammer and bits are made of high quality alloy steel with advanced heat treatment to assure the good drilling performance and long service life. They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.

DTH hammers types we supply:
A.High pressure series
B.Medium pressure series
C. Low pressure series
D. High efficiency high pressure series
E.Reverse circulation series

2.Advantages:
>>High quality raw material, with premium hardened procedures for long life.
>> Full production chain to secure stable and prompt production leadtime.
>>Experienced senior technicians and long year experienced workers and engineers.
>>Customized acceptable and quick and efficient service.
>> Price are competitive against the famous brands and best quality against the small factory.
>> Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customer all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.


3.Specifications:

ItemGL345A
Drilling Dia. (ф/mm)105-130
Hammer Length(mm)1034
Outside Dia.(ф/mm)98
Weight(kg)39
Working Pressure(Mpa)0.8-2.1
Air Consumption (M3/Min.)3.5-15
Torque(N.M)335
Impact Frequency (Times/Min.)≥800
Connection 1API 2-3/8
Connection 2Ф64-8


Packaging & Shipping


 Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 2Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 3


Related Product
We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 4


Company Profile
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 5
Rock Blasting Water Well Dth Drilling Hammer Gl345a High Air Pressure 6



Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.



Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

Our Services
>Pre-sale service
  Select suitable model & matched equipment.
  Professional technical support. Reply clients' questions within 24 hours.
  Matched accessories strictly before delivery.

>After Sales Service
  Timely inform client of production progress.
  E-mail, call or appoint a technician service in later using.
