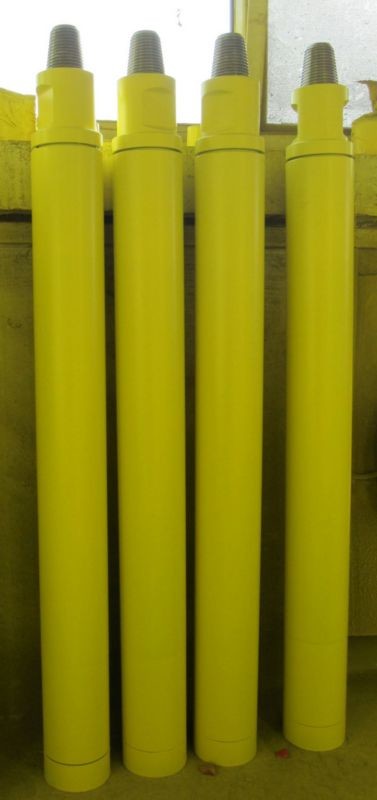

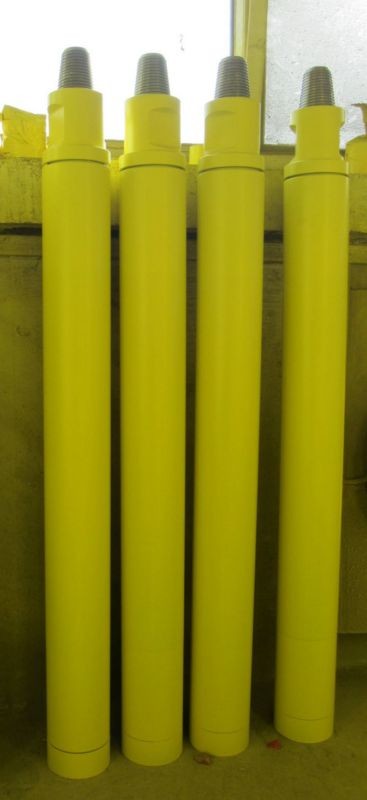

High Pressure dth hammer Mining 114mm Dth Drilling Hammer SGS Certification
1.Description:
-Glorytek is a comprehensive company that integrates the design, manufacture, marketing and technical services of rock drilling tools.
Heigh pressure DTH hammers perform good in drilling well of diameter from 82mm to 508mm, especially excellent in deep hole well drilling works.Different designing makes DTH drill hammers are suitable for various well drilling conditions.
-The application of the drilling diameter (130-152mm) mining blasthole achieves a record-breaking hole speed,It can work under the wind pressure of 0.8-2.1Mpa.
-Our heigh pressure down the hole hammers are proved to ensure extremely low rate of blocking during it works.
-The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring faster penetration. Compared with others, the efficiency can be improved 10%.
2.Applications:
DTH hammers are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
3.Specifications:
| Type and Technical Specification of High Pressure DTH Hammers |
| Item |
GL350 |
| Drilling Dia. (ф/mm) |
130-152 |
| Hammer Length(mm) |
1387 |
| Outside Dia. (ф/mm) |
114 |
| Weight(kg) |
69 |
| Working Pressure(Mpa) |
0.8-2.1 |
| Air Consumption (M3/Min.) |
5.7-18 |
| Torque(N.M) |
590 |
| Impact Frequency (Times/Min.) |
810-1470 |
| Connection 1 |
API 3-1/2 |
| Connection 2 |
ф84-8 |
|
Related Product
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
