Dth Hammer GL90 Low Air Pressure Rock Blasting Water Well Drilling DTH Hammer
1.Description:
Category: Mining Machinery Parts
Product Description:
Introducing our RC Hammers Bits GL90 DTH Hammer Bit Reverse Circulation Rock Drill Tools, designed specifically for the mining industry. These high-quality drilling tools are essential for efficient and effective rock drilling operations.
Our DTH Hammer Bits are engineered to withstand the toughest drilling conditions, ensuring durability and longevity. With 90-130mm diameter, these bits offer excellent performance and precision. The reverse circulation design allows for efficient drilling and ensures minimal sample contamination.
Equipped with advanced technology, our DTH Hammers Bits provide superior penetration rates, reducing drilling time and increasing productivity. The high-quality materials used in their construction guarantee optimal performance and reliability.
These drill tools are compatible with various DTH hammers, including the popular DHD Hammer series. Their versatile nature makes them suitable for a wide range of drilling applications in the mining industry.
Invest in our GL90 DTH Hammer Bit and experience enhanced drilling efficiency, increased productivity, and reduced downtime. Contact us today to place your order!

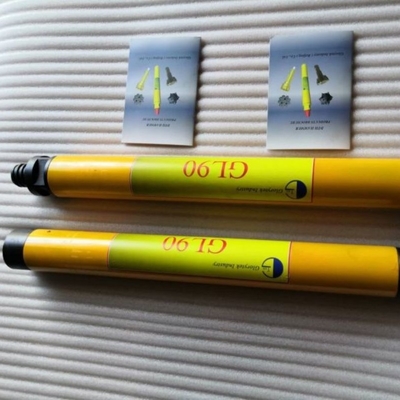

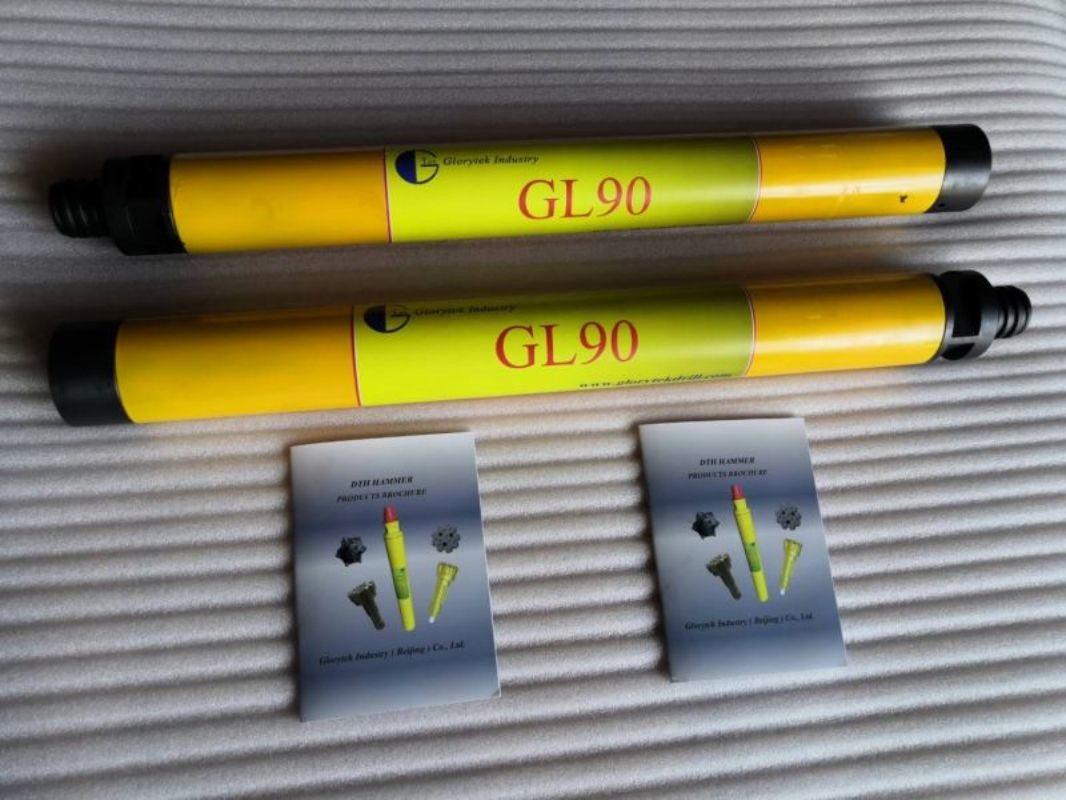

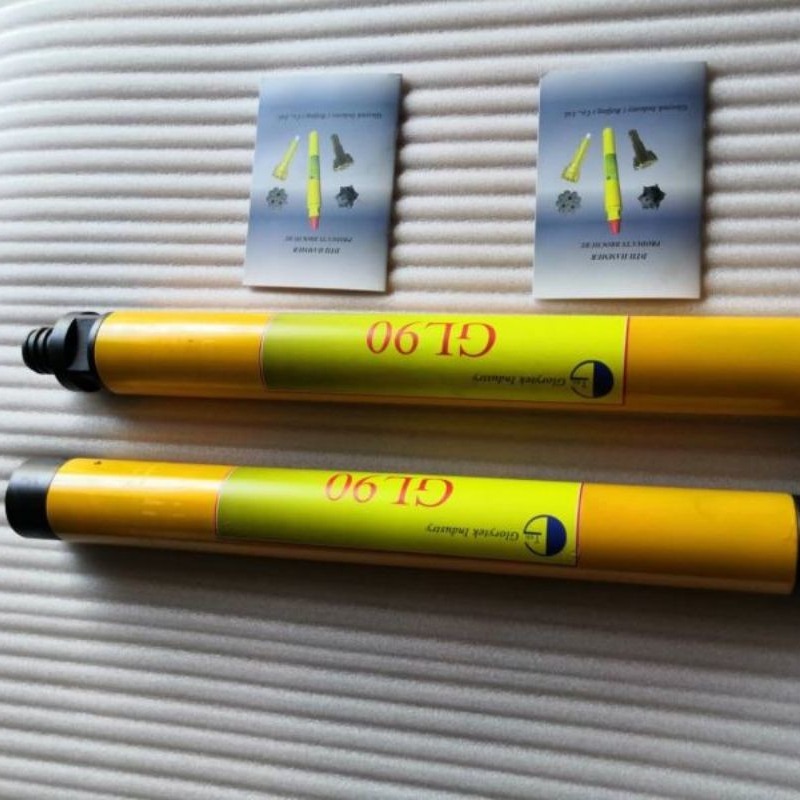

2.Detailed photo:
3.Specifications:
| Item |
GL65B |
GL70 |
GL76 |
GL80 |
GL90 |
GL90-1 |
GL110 |
GL150 |
GL170 |
| Drilling Dia.(ф/mm) |
68-70 |
72-74 |
74-76 |
80-82 |
90-130 |
90-130 |
110-150 |
150-185 |
170-250 |
| Hammer Length(mm) |
745 |
803 |
766 |
796 |
796 |
796 |
838 |
908 |
1023 |
| Outside Dia.(ф/mm) |
61.2 |
67.2 |
67.2 |
72 |
80.2 |
80 |
98 |
137 |
156 |
| Weight(kg) |
13 |
14 |
15 |
17 |
20 |
20 |
30 |
75 |
90 |
| Working Pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
| AirConsumption(M3/Min.) |
2.5 |
3 |
3 |
5 |
6 |
5.5 |
11 |
17 |
19.5 |
| Torque(N.M) |
51 |
70 |
75 |
81 |
110 |
120 |
180 |
340 |
420 |
| Impact Frequency (Times/Min.) |
≥810 |
≥810 |
≥810 |
≥800 |
≥820 |
≥820 |
≥830 |
≥800 |
≥790 |
| Connection 1 |
M42×10×1.5P |
DZ50 |
M48×10×2P |
M48×10×2P |
M48×10×2P |
M48×10×2P |
API 2 3/8REG |
API 3 1/2REG |
API 3 1/2REG |
| Connection 2 |
ф37-4 |
ф43-6 |
ф44-4 |
ф50-6 |
ф54-6 |
ф54-6 |
ф65-6 |
ф90-6 |
ф98-6 |
|
