Name: 100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: XY-1/XY-1A/GL200/GL250/GL300
Price: 6,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Drilling Depth: 100m

Initial Hole Dia: 110mm

Final Hole Dia: 75mm

Drill Rod Dia: 42mm

Angle Range: 75°-90°

Dimensions (L×W×H): 1640×1030×1440 (mm)

Max .lifting Capacity(single Rope): 10KN

Highlight:

drill rig equipment XY-1

100m drill rig equipment

drill rig machines XY-1A

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: XY-1/XY-1A/GL200/GL250/GL300

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 800 sets per year

Gallery

100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump

Product Description

XY-1/XY-1A/GL200/GL250/GL300 Drilling Rig

Application

XY-1/XY-1A/GL200/GL250/GL300 drilling rig are widely used for prospecting and exploration, mineral exploration and SPT service,borehole drilling projects. They are compact in structure, small in size, light in weight and convenient in transportation.

XY-1/XY-1A/GL200/GL250/GL300 core drilling rig can be mounted on trailer chassis or crawler chassis according to clients requirement. There are small mud pump on the rigs, for drilling big hole or deep hole, clients normally choose bigger mud pump such as BW160, BW160/10 and BW250 for better performance.

Technical Date

Models			XY-1	XY-1A	GL200	GL250	GL300
Drill		Drilling depth	100m	100/180 m	250m	250m	300m
		Initial hole dia	110mm	150mm	200mm	200mm	200mm
		Final hole dia	75mm	75mm	75mm	75mm	75mm
		Drill rod dia	42mm	43mm	50mm	50mm	50mm
		Angle range	75°-90°	75°-90°	75°-90°	75°-90°	75°-90°
		Dimensions (L×W×H)	1640×1030×1440 (mm)	1620×970×1560(mm)	1700×1030×1270 (mm)	1700×1030×1270(mm)	1070×1030×1270 (mm)
Swivel Head		Spindle stroke	450mm	450mm	450mm	450mm	450mm
Swivel Head		Spindle lifting capacity max	25KN	25KN	30KN	30 KN	max 45 KN
Hoist		Max .lifting capacity(single rope)	10KN	15KN	20/40/90/180	20KN	20KN
Power	diesel engine	Model	S1100A2	S1100A2	L28N	L28N	L28N
		Rated power	10.3KW	10.3KW	16.2KW	20KW	20KW
		Rated speed	2000r/min	2200r/min	2200r/min	2000r/min	2000r/min
	motor	Model	Y132M-4	Y160M‐4	Y160L-4	Y160L-4	Y160L-4
		Rated power	7.5kW	11KW	11KW	15KW	15KW
		Rated speed	1440r/min	1460r/min	1460r/min	1440r/min	1440r/min

Mud Pump Specification

Models	BW160	BW160-10	BW250
Type	Horizontal single cylinder double acting reciprocating piston pump	Horizontal three cylinder reciprocating single acting piston pump	Horizontal three cylinder reciprocating single acting piston pump
Liner Dia. (mm)	95	70	80/65
Stroke (mm)	85	70	100
Weight (include power section) (Kg)	200	430	760
Dimension: LWH (mm)	1110725965	1450×745×970	1000×995×650
Theoretical flow (L/min)	160	160/107/67/44	250/145/90/52/166/96/60/35
Rated Pressure (MPa)	1.3	2.5/4/6.5/10	2.5/4.5/6/6/4/6/7/7
Strokes Per Minute	85	200/132/83/55	200/116/72/42/200/116/72/42
Input Power(kW)	5.5	11	15

Product Picture

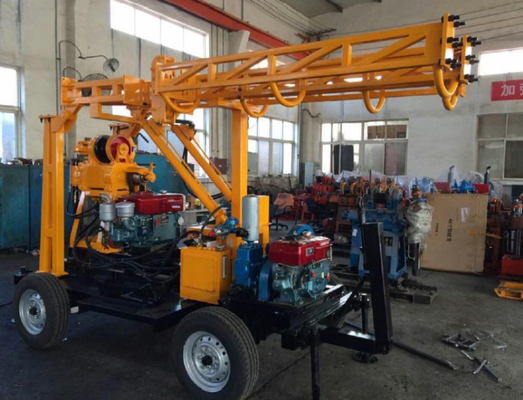

100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump 0

Other info

100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump 1

100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump 2

100m Drill Rig Equipment XY-1/XY-1A/GL200/GL250/GL300 With Mud Pump 3
