Name: 500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: XY-2T/XY-4T/XY-42T/XY-44T/XY-5T
Price: 70,000.00 USD
Availability: InStock

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T

1 set

MOQ

USD65000-75000 per set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Drilling Depth: 300-500m

Max.torque: 3147N·m

Spindle Stroke: 560mm

I.D Of Spindle: 96mm

Max. Lifting Capacity Of Spindle: 60kN

Max. Feeding Force: 45kN

Max.hoisting Force: 30kN

Electric Motor Power: 22kW

Highlight:

500m core drilling rig

core drilling rig integrated with tower

500m core drilling equipment

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: XY-2T/XY-4T/XY-42T/XY-44T/XY-5T

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 600 sets per year

Gallery

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T

Product Description

Core Drill Rig Integrated With Tower

Description

XY-2T/4T/42T/44T drill rigs are combined with the main machines of XY-2/4/42A and towers. This series of drill rigs are compact in structure, reasonable in composition, light weight, easy in disassembling, rationale in rotary scope. Convenient in operation and maintenance. The drill rigs have the function of hydraulic raising and lowering, which is suitable in large angle slanting hole drilling.

Technical Date

Specifications	Models
Specifications	XY-2T	XY-4T	XY-42T	XY-44T	XY-5T
Drilling depth	300-500m	700-1000m	700-1100m	700-1400m	900-1800m
Max.torque	3147N·m	2640N·m	3200N·m	3200N·m	5500N·m
Spindle stroke	560mm	600mm	600mm	600mm	600mm
I.D of spindle	96mm	68mm	93mm	93mm	93mm
Max. Lifting capacity of spindle	60kN	80kN	80kN	120kN	135kN
Max. Feeding force	45kN	60kN	60kN	90kN	100kN
Max.hoisting force	30kN	30kN	30kN	45kN	60kN
electric motor power	22kW	30kW	30kW	37kW	55kW
Diesel Engine power	31kW	42kW	42kW	50kW	64kW

Specification of mast	Models
Specification of mast	XY-2T	XY-4T/42T/44T	XY-5T
Drill-tower height	8000mm	10000mm	11000mm
The area of the base	3600×2100mm	4000×4000mm	5500×5500mm
The number of Pulley	2	5	5
Max.Load of Mast	75kN	100kN	120kN
Load of Moveable Work Plateform	70Kg	80Kg	90Kg
Adjusted angles of drill tower	45°- 90°	45°- 90°	45°- 90°

Product Picture

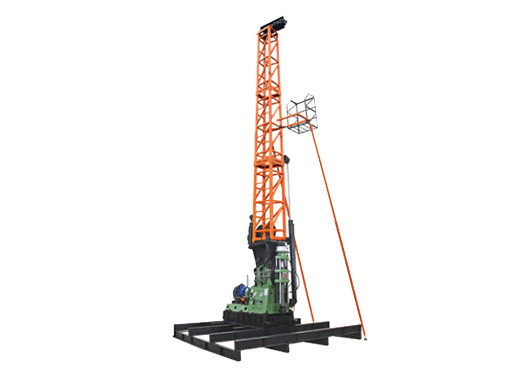

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T 0

Other info

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T 1

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T 2

500m Core Drill Rig Integrated With Tower XY-2T/XY-4T/XY-42T/XY-44T/XY-5T 3
