Name: DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: DX-5C
Price: 162,500.00 USD
Availability: InStock

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ

1 set

MOQ

USD150000-175000 per set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Power: 145kW

Speed: 1900rpm

BQ: 1500m

NQ: 1300m

HQ: 1000m

PQ: 680m

Max.Torque: 4650N·m

Hold Diameter: 121mm

Max.Feeding Power: 75kN

Weight: 10000kg

Dimensions(L×W×H): 6250×2200×2730mm

Highlight:

1900rpm core drilling rig

BQ core drilling rig

NQ core drilling equipment

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: DX-5C

Payment & Shipping Terms

Packaging Details: Seaworthy packing

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 600 sets per year

Gallery

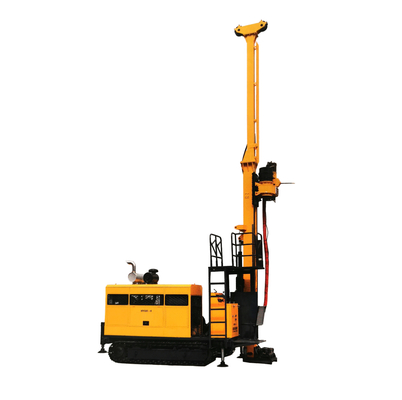

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ

Product Description

DX-5C Trailer Core Drilling Rig

Description

Main hydraulic pump, valve and motor are all adopted from famous international brands. Batholith is tyre-drawing (with turning device) or steel track loptional),with hydraulic support device, mast adopted hydraulic powered lft/down, which can be folded to store and transport, with touchdown function, hydraulic system adopted sensitive load control, with high-position operation platform and orifice operation platform. Drill head feeding adopts double -speed driving device for the chain of the oil tank, long-range feeding system, single-motor driving, with 2 grades gear-box and hydraulic operated stepless shift gears. Equipped with high supporter and low guider devices, orifice with hydraulic holder.

Technical Date

	Model	DX-5C full hydraulic
Diesel Engine	Model	cummins 6CTA8.3-C195
	Power	145kW
	Speed	1900rpm
Drilling Capacity	BQ	1500m
	NQ	1300m
	HQ	1000m
	PQ	680m
Rotator Capacity	RPM	Two Shifts/ Stepless 0-1145rpm
	Max.Torque	4650N·m
	Hold Diameter	121mm
	Max.Lifting Capacity of Spindle	150kN
	Max.Feeding Power	75kN
Capacity of Main Hoist	Hoisting Force(singlee wire)	77kN
	Steel Wire Diameter	18mm
	Steel Wire Length	60m
Capacity of Steel Wire Hoist	Hoisting Force(singlee wire)	12kN (Bare drum)
	Steel Wire Diameter	6mm
	Steel Wire Length	1500m
Mast	Mast Height	12m
	Mast Adjusting Angle	0°-90°
	Drilling Angle	45°-90°
	Feeding Stroke	3800mm
	Slippage Stroke	1100mm
Other	Weight	10000kg
	Dimensions(L×W×H)	6250×2200×2730mm
	Transport Way	Tyre
Mud Pump	Model	BW250
Foot damp	Clamping Scope	55.5-117.5 mm(standard hole size Φ154mm)

Product Picture

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ 0

Other info

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ 1

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ 2

DX-5C Trailer 1900rpm Core Drilling Rig BQ / NQ / HQ / PQ 3
