Home /Products/Drill Rig Machines/400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth

400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth

1 set
MOQ
USD70000-80000 per set
Price
400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Working Pressure Set In System (MPa): 35
Max. Flow In The Hydraulic System(L/min): 2215
Drill Pipe Diameter（inch）: From 5 To 6-5/8
Max. Length Of Drill Pipe(m): 9.6
Driving Head Max. Rotation Speed(rpm): 92
Driving Head Max. Push & Pull Speed(m/min): 40
Main Spindle Floating Distance(mm): 100
Mud Pump Channel Diameter（cun）: 3
Max. Mud Flowing Volume(L/min): 2000
Max. Mud Pressure (MPa): 12
Rig Weight(T): About 60
Highlight:

400 ton drill rig machines

,

hdd drill rig machines

,

3300m depth hdd drill rig
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: 400ton hdd
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600 sets per year
Product Description

400tons hdd Drilling Rig







Description



1.Equipped with Dong feng cummins engine, large power, stable performance,lower fuel consumption, lower noise, more suitable working in urban area.；



2.Rotation,push-pull pilot control, operation more portable.

3.Driving head adopts cycloid motor from Eaton, which drives rotation directly, with large torsion, stable performance, and two stall stepless speed regulation. Driving head push-pull adopts cycloid motor from Eaton,which has three stall speed and high construction speed of which leads far ahead in fellow competitors.There served reinforcement device increase construction scope.The hydraulic gear pump adopts military technique,track wire control operation, convenient and fast loading, unloading as well as construction site transition.

4.Operation table overview is broad,operation table design adopts human-computer construction way, comfortable operation, reduces fatigue strength.

5.Equipped with φ60×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.

6.Surface is with elegant appearance,easy maintenance, fully embody humanist designing idea.





Technical Date





1 Driving head max. theoretical torsion N·m 140000
2 Driving head max. theoretical push & pull force (KN) 4000
3 Max. working pressure set in system (MPa) 35
4 Max. flow in the hydraulic system(L/min) 2215
5 Drill pipe diameter(inch) From 5 to 6-5/8 Petroleum standard drill pipe
6 Max. length of drill pipe(m) 9.6
7 Driving head max. rotation speed(rpm) 92
8 Driving head max. push & pull speed(m/min) 40
9 Main spindle floating distance(mm) 100
10 Mud pump channel diameter(cun) 3
11 Max. mud flowing volume(L/min) 2000
12 Max. mud pressure (MPa) 12
13 Entry angle(°) 9-16
15 Max. unscrewing force of pipe jaw(N·m) 370000
16 Rig Size(Length×Width×Height (mm) 18200×3000×3460 Transportation condition
17 Rig weight(T) About 60
21 Permitted working Temperature ℃ -30~50
22 totalvolum of hydraulic oil tank (L) 1660
23 totalvolum of diesel tank (L) 2500
24 Permitted environment humidity ％ ＞90
25 Permitted working altitude(m) 0-2000
26 Referential back-reaming aperture (mm) φ2000 Soil depended
27 Referential drilling distance (m) 3300 Soil depended





Product Picture

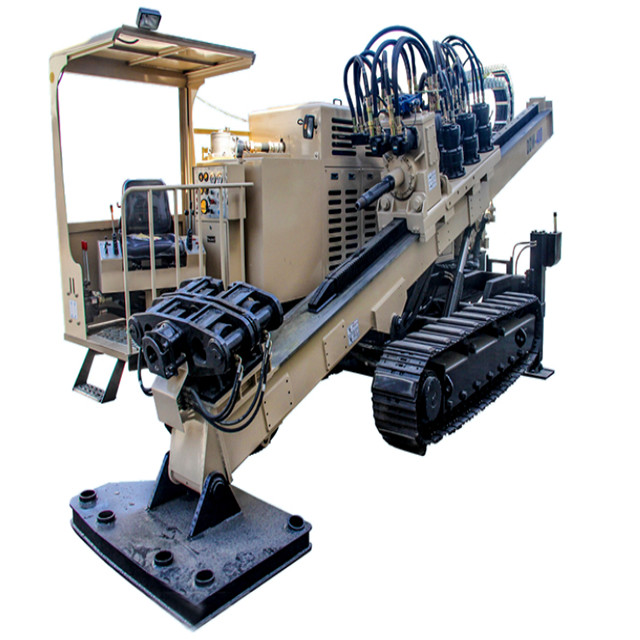

400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth 0







Other info



400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth 1



400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth 2

400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth 3
