DTH Hammers
Product Description
Glorytek offers a comprehensive range of DTH Hammers and bits, including the CIR, DHD, QL, SD, Mission, and other series. These drilling tools are renowned for their exceptional performance, boasting high efficiency, a low failure rate, and an extended service life. They are specifically designed to excel in challenging drilling conditions, such as high hardness and abrasive rocks, ensuring efficient and cost-effective drilling operations.
Our DTH Hammers and bits are meticulously crafted from high-quality alloy steel, and they undergo advanced heat treatment processes to guarantee optimal drilling performance and maximize their longevity. This ensures that our drilling tools maintain their durability and reliability even in demanding drilling environments.
With a global customer base, our DTH Hammers and bits are widely trusted and utilized by drilling professionals worldwide. Their exceptional quality and performance make them the preferred choice for various drilling projects across different industries.
When you choose Glorytek's DTH Hammers and bits, you can expect superior drilling efficiency, excellent durability, and reliable performance, enabling you to achieve efficient and economical drilling operations in even the harshest drilling conditions.
| Type and Technical Specification of High Pressure DTH Hammers |
| Item |
GL330 |
GL335 |
GL340A |
GL345 |
GL350 |
GL355 |
GL360 |
GL380 |
GL3120 |
| Drilling Dia. (ф/mm) |
82-85 |
90-93 |
105-130 |
105-130 |
130-152 |
130-152 |
152-305 |
203-350 |
302-508 |
| Hammer Length(mm) |
867 |
908 |
1052 |
1034 |
1387 |
1220 |
1450 |
1551 |
1934 |
| Outside Dia. (ф/mm) |
71 |
81 |
92 |
98 |
114 |
124 |
136 |
181 |
275 |
| Weight(kg) |
19 |
21.8 |
38 |
39 |
69 |
74 |
126 |
277 |
642 |
| Working Pressure(Mpa) |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
| Air Consumption (M3/Min.) |
3-12 |
4.3-14.2 |
3.5-18 |
3.5-15 |
5.7-18 |
6.5-18 |
8.5-25 |
12-31 |
14-45 |
| Torque(N.M) |
150 |
205 |
304 |
335 |
590 |
700 |
822 |
1560 |
2410 |
| Impact Frequency (Times/Min.) |
≥800 |
950-1500 |
≥800 |
≥800 |
810-1470 |
810-1500 |
820-1475 |
860-1510 |
980-1446 |
| Connection 1 |
48.8×4.2 |
API 2-3/8 |
API 2-3/8 |
API 2-3/8 |
API 3-1/2 |
API 2-3/8 |
API 3-1/2 |
API 4-1/2 |
API 6-5/8 |
| Connection 2 |
ф47-6 |
ф53-8 |
ф64-8 |
ф64-8 |
ф84-8 |
ф84-8 |
ф99.5-8 |
ф128-10 |
ф184-8 |

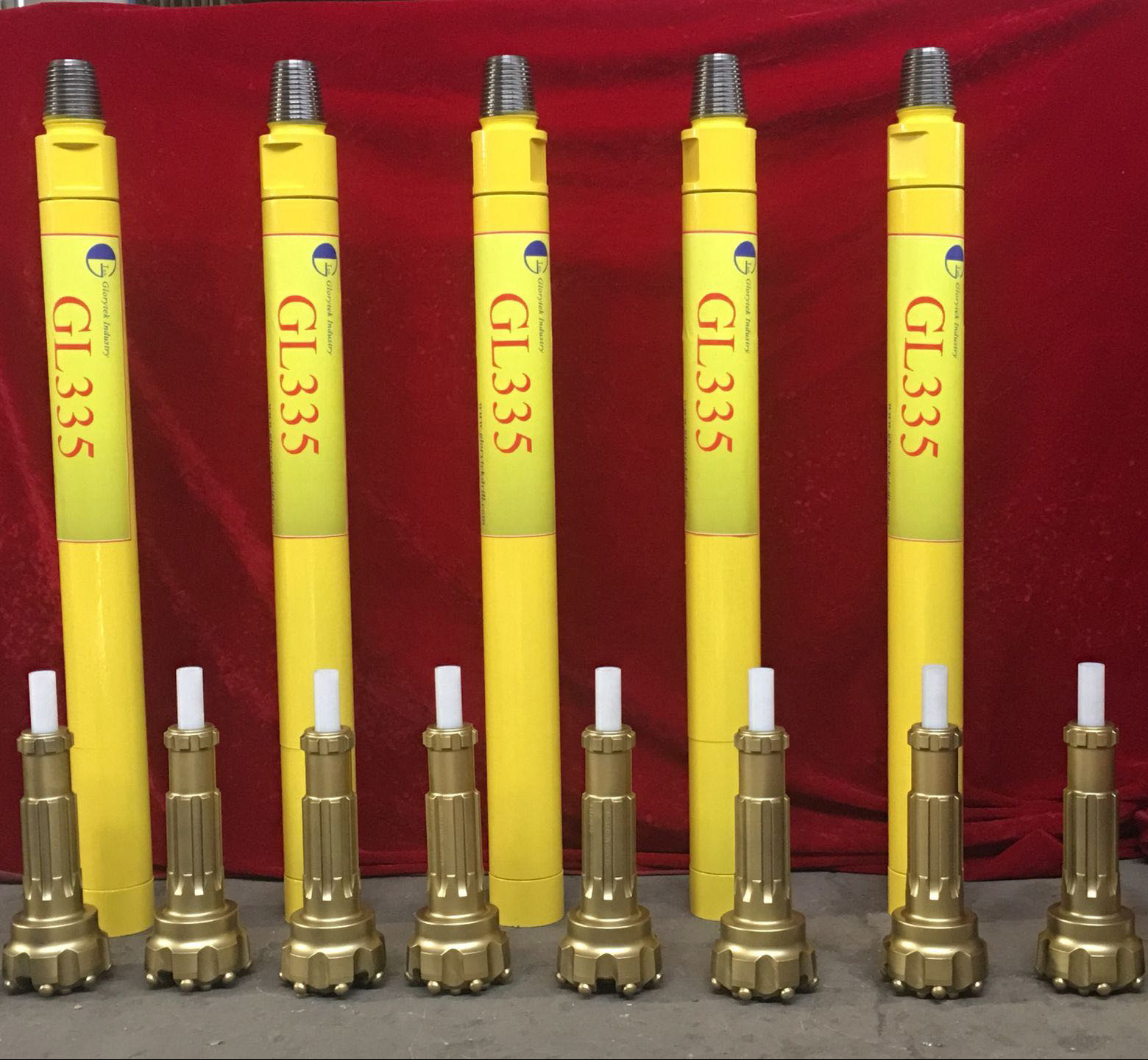

Product Picture
Company Profile
Glorytek Industry (Beijing)Co.,Ltd.,
Located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days, and within 20days if we don't have enough stock.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
