DTH Hammers
Product Description
Glorytek offers a comprehensive range of DTH Hammers and bits, including the CIR, DHD, QL, SD, Mission, and other series. These drilling tools are renowned for their exceptional performance, boasting high efficiency, a low failure rate, and an extended service life. They are specifically designed to excel in challenging drilling conditions, such as high hardness and abrasive rocks, ensuring efficient and cost-effective drilling operations.
Our DTH Hammers and bits are meticulously crafted from high-quality alloy steel, and they undergo advanced heat treatment processes to guarantee optimal drilling performance and maximize their longevity. This ensures that our drilling tools maintain their durability and reliability even in demanding drilling environments.
With a global customer base, our DTH Hammers and bits are widely trusted and utilized by drilling professionals worldwide. Their exceptional quality and performance make them the preferred choice for various drilling projects across different industries.
When you choose Glorytek's DTH Hammers and bits, you can expect superior drilling efficiency, excellent durability, and reliable performance, enabling you to achieve efficient and economical drilling operations in even the harshest drilling conditions.
|
Item
|
GL345A
|
GL355K
|
GL360K
|
GL380K
|
|
Drilling Dia. (ф/mm)
|
105-130
|
140-152
|
165-219
|
203-350
|
|
Hammer Length(mm)
|
1034
|
1098
|
1372
|
1504
|
|
Outside Dia.(ф/mm)
|
98
|
124
|
152
|
180
|
|
Weight(kg)
|
39
|
70
|
92
|
230
|
|
Working Pressure(Mpa)
|
0.8-2.1
|
0.8-2.1
|
0.8-2.1
|
0.8-2.1
|
|
Air Consumption (M3/Min.)
|
3.5-15
|
4.5-18
|
9-26
|
9.6-24.8
|
|
Torque(N.M)
|
335
|
800
|
1150
|
1870
|
|
Impact Frequency (Times/Min.)
|
≥800
|
840-1500
|
950-1650
|
1100-1550
|
|
Connection 1
|
API 2-3/8
|
API 2-3/8
|
API 3-1/2
|
API 4 1-2
|
|
Connection 2
|
Ф64-8
|
Ф84-8
|
Ф99.5-8
|
ф128-10
|

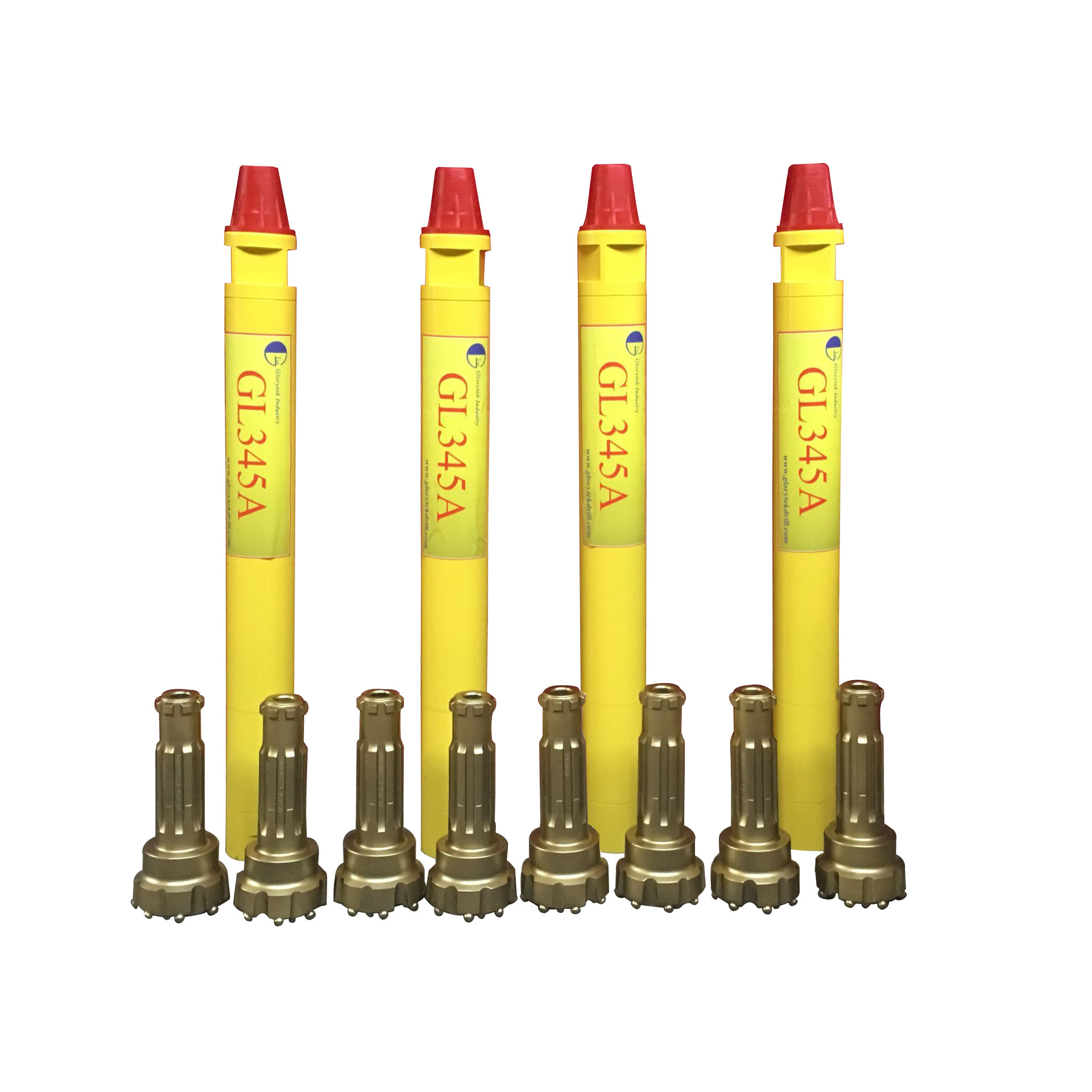

Product Picture
Packing & Delivery of DTH hammers
Packing: Plywood Box
Delivery: Normally 3-5days after your down payment; about 20 days after your down payment if we don't have stock.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd.,
is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A:1pc.
Q:How to place an order?
A:1) Inform size and model/main usage/quantity
Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
