Name: High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL3110
Price: 3000 USD
Availability: InStock

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole

1 piece

MOQ

USD3000 per piece

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Drilling Dia(mm): 250-450

Hammer Length(mm): 1780

Outside Dia(mm): 230

Weight(kg): 410

Working Pressure(Mpa): 0.8-2.1

Air Consumption(m³/min): 14-45

Torque(nm): 2410

Highlight:

High Efficiency 10 inch dth hammer

Blast Hole 10 inch dth hammer

dth hammer For Blast Hole

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL3110

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3000 piece per month

Gallery

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole

Product Description

DTH Hammers

Product Description

Type and Technical Specification of High Pressure DTH Hammers
Item	GL330	GL335	GL340A	GL345	GL350	GL355	GL360	GL380	GL3120
Drilling Dia. (ф/mm)	82-85	90-93	105-130	105-130	130-152	130-152	152-305	203-350	302-508
Hammer Length(mm)	867	908	1052	1034	1387	1220	1450	1551	1934
Outside Dia. (ф/mm)	71	81	92	98	114	124	136	181	275
Weight(kg)	19	21.8	38	39	69	74	126	277	642
Working Pressure(Mpa)	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1
Air Consumption (M3/Min.)	3-12	4.3-14.2	3.5-18	3.5-15	5.7-18	6.5-18	8.5-25	12-31	14-45
Torque(N.M)	150	205	304	335	590	700	822	1560	2410
Impact Frequency (Times/Min.)	≥800	950-1500	≥800	≥800	810-1470	810-1500	820-1475	860-1510	980-1446
Connection 1	48.8×4.2	API 2-3/8	API 2-3/8	API 2-3/8	API 3-1/2	API 2-3/8	API 3-1/2	API 4-1/2	API 6-5/8
Connection 2	ф47-6	ф53-8	ф64-8	ф64-8	ф84-8	ф84-8	ф99.5-8	ф128-10	ф184-8

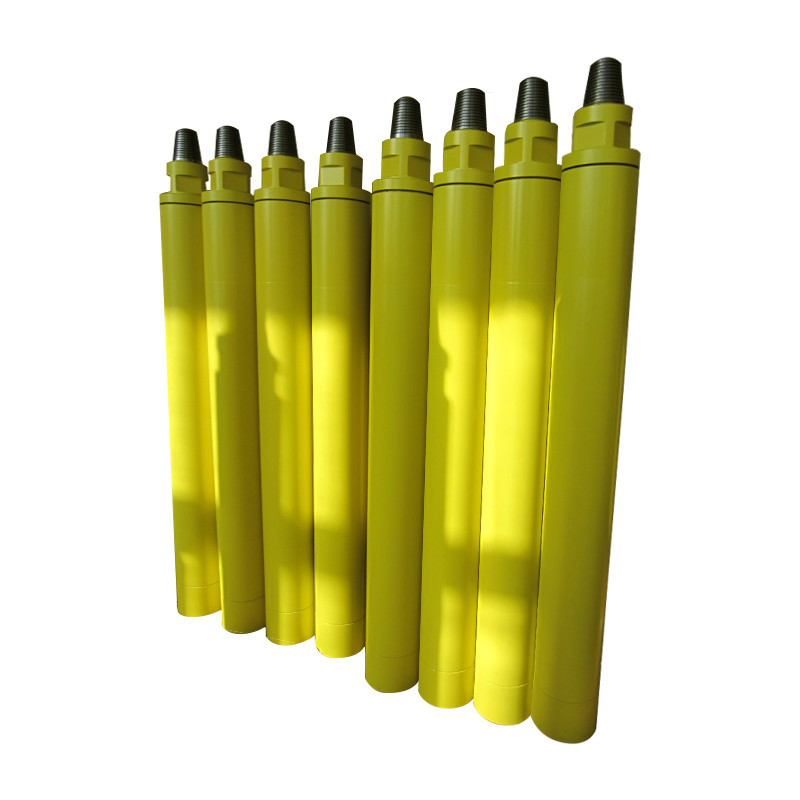

Product Picture

Company Profile

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole 3

Glorytek Industry (Beijing)Co.,Ltd.,

Glorytek Industry (Beijing) Co., Ltd. specializes in providing a diverse range of PDC drill bits, designed for superior drilling performance and efficiency. Our PDC drill bits are widely used in applications such as oil and gas exploration, mining, geothermal drilling, and construction projects. We offer various types of PDC bits, including matrix body and steel body designs, with different cutter configurations to suit different drilling conditions. Our competitive pricing ensures cost-effectiveness without compromising on quality. Choose Glorytek for high-quality PDC drill bits that deliver exceptional results, meeting both your drilling requirements and budgetary considerations.

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole 4

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole 5

High Efficiency High Pressure 10 Inch Dth Hammer For Blast Hole 6

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
