Name: High Pressure Dth Hammer For Geotechnical Engineering
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL335-GL112A
Price: 500 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Down The Hole Hammer

Hammer Size: 3", 4", 5", 6", 8", 10", 12" DTH Hammers

Specification: DHD

Origin: Beijing, China

Applicable Industries: Building Material Shops, Manufacturing Plant, Cons

Highlight:

Geotechnical Engineering High pressure dth hammer

High Pressure Dth Hammer

Dth Hammer For Geotechnical Engineering

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: GL335-GL112A

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 12days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 8000 piece per month

Gallery

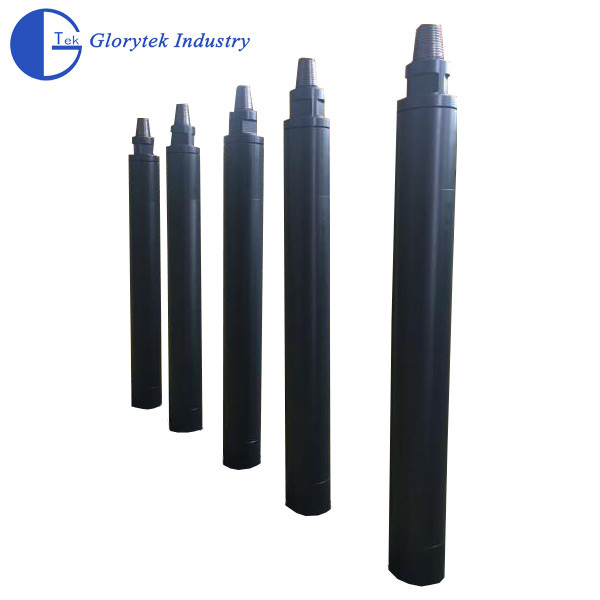

High Pressure Dth Hammer For Geotechnical Engineering

Product Description

DTH Hammers

Product Description

Glorytek offers a comprehensive range of DTH Hammers and bits, including the CIR, DHD, QL, SD, Mission, and other series. These drilling tools are renowned for their exceptional performance, boasting high efficiency, a low failure rate, and an extended service life. They are specifically designed to excel in challenging drilling conditions, such as high hardness and abrasive rocks, ensuring efficient and cost-effective drilling operations.

Our DTH Hammers and bits are meticulously crafted from high-quality alloy steel, and they undergo advanced heat treatment processes to guarantee optimal drilling performance and maximize their longevity. This ensures that our drilling tools maintain their durability and reliability even in demanding drilling environments.

With a global customer base, our DTH Hammers and bits are widely trusted and utilized by drilling professionals worldwide. Their exceptional quality and performance make them the preferred choice for various drilling projects across different industries.

When you choose Glorytek's DTH Hammers and bits, you can expect superior drilling efficiency, excellent durability, and reliable performance, enabling you to achieve efficient and economical drilling operations in even the harshest drilling conditions.

Type and Technical Specification of High Pressure DTH Hammers
Item	GL330	GL335	GL340A	GL345	GL350	GL355	GL360	GL380	GL3120
Drilling Dia. (ф/mm)	82-85	90-93	105-130	105-130	130-152	130-152	152-305	203-350	302-508
Hammer Length(mm)	867	908	1052	1034	1387	1220	1450	1551	1934
Outside Dia. (ф/mm)	71	81	92	98	114	124	136	181	275
Weight(kg)	19	21.8	38	39	69	74	126	277	642
Working Pressure(Mpa)	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1	0.8-2.1
Air Consumption (M3/Min.)	3-12	4.3-14.2	3.5-18	3.5-15	5.7-18	6.5-18	8.5-25	12-31	14-45
Torque(N.M)	150	205	304	335	590	700	822	1560	2410
Impact Frequency (Times/Min.)	≥800	950-1500	≥800	≥800	810-1470	810-1500	820-1475	860-1510	980-1446
Connection 1	48.8×4.2	API 2-3/8	API 2-3/8	API 2-3/8	API 3-1/2	API 2-3/8	API 3-1/2	API 4-1/2	API 6-5/8
Connection 2	ф47-6	ф53-8	ф64-8	ф64-8	ф84-8	ф84-8	ф99.5-8	ф128-10	ф184-8

Product Picture

Company Profile

High Pressure Dth Hammer For Geotechnical Engineering 3

High Pressure Dth Hammer For Geotechnical Engineering 4

High Pressure Dth Hammer For Geotechnical Engineering 5

High Pressure Dth Hammer For Geotechnical Engineering 6

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
