Product Description:

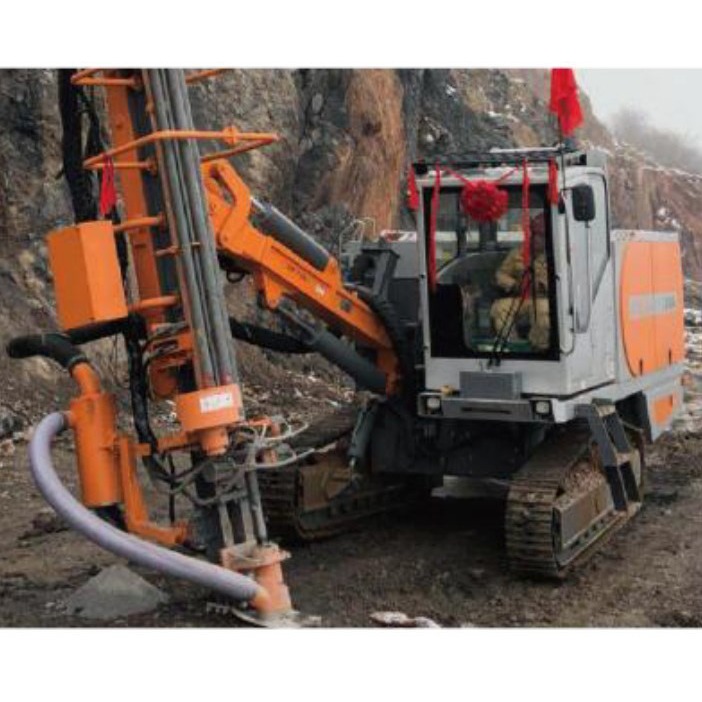

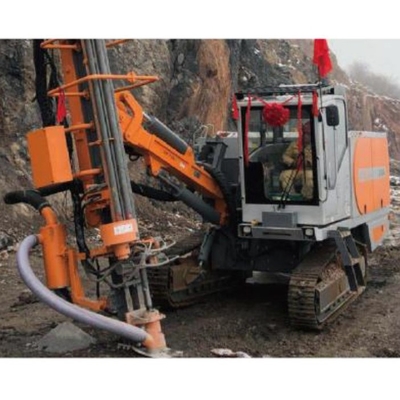

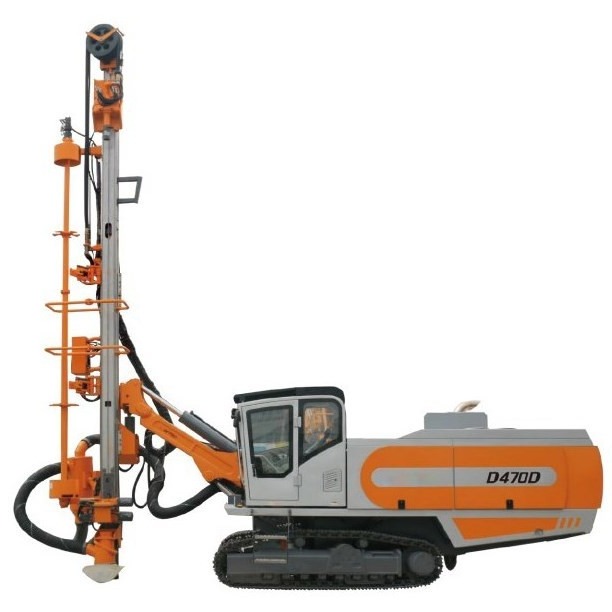

Our hydraulic DTH drilling rig is designed to be the best in the industry, with a slope climbing ability of 25 degrees, meaning it can easily maneuver through tough terrain. The recommended DTH hammer size for this machine is 5"/6", giving you the power you need to get through even the toughest rock formations.
The drill pipe length for our Surface Drill Rig Machines ranges from 6,000mm to 7,000mm, making it suitable for a wide range of drilling applications. With dimensions of 11,560mm x 2,700mm x 3,560mm, this machine is compact and easy to transport, without compromising on power and efficiency.
The maximum torque of our hydraulic rock drill rig is 5,600 N.m, ensuring that you can tackle any drilling job with ease. Whether you're drilling for mining, construction, or exploration purposes, our Surface Drill Rig Machines are the perfect solution.
Features:
- Product Name: Drill Rig Machines
- Type: Surface Drill Rig
- Drilling Method: hydraulic DTH drilling rig
- Application: Blasthole drilling rig
- Maximum Hole Depth with Auto Handling: 35 M
- Ground Clearance: 420 Mm
- Hole Range: 138-165 Mm
- Drill Pipe OD: 114/102 Mm
- Rotation Speed: 0 - 80 Rpm
Technical Parameters:
| Technical Parameter |
|
| Integrated Drill Rig Type |
Surface Integrated Drill Rig |
| Drill Pipe OD |
114/102 Mm |
| Drill Pipe Length |
6,000/5,000/7,000 Mm |
| Maximum Hole Depth with Auto Handling |
35 M |
| Recommended DTH Hammer Size |
5"/6" |
| Hole Range |
138-165 Mm |
| Fuel Tank Capacity |
750 L |
| Feed Beam |
High Strength Aluminum Alloy |
| Ground Clearance |
420 Mm |
| Maximum Torque |
5,600 N.m |
| Dimensions |
11,560x2,700x3,560 Mm |
Applications:
Support and Services:
- Troubleshooting assistance for any technical issues
- Repair and maintenance services
- Replacement parts and accessories
- Training and education on product operation and safety
- On-site field service support
- Technical documentation and manuals
