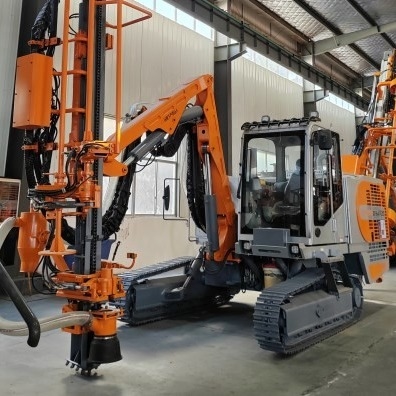

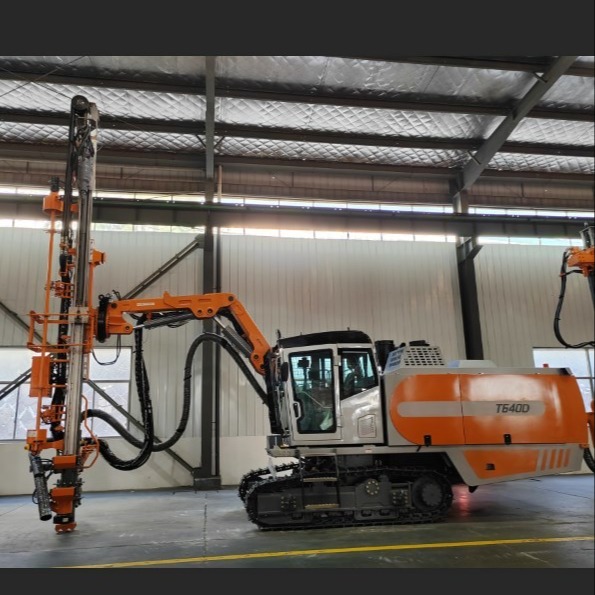

Surface Integrated Drill Rig Machines for Gold Mining / Cement Raw Material Mining

Product Description:

The Drill Rig Machines product has a drill pipe OD of 114/102 Mm, allowing for the use of a variety of drill bits to accommodate different drilling needs. It also has a capacity FAD of 21 M3 / Min, ensuring that the rig can handle high-volume drilling tasks quickly and efficiently. The drill pipe length comes in three options of 6,000/5,000/7,000 Mm, providing flexibility for various drilling depths.

Measuring at 11,560x2,700x3,560 Mm, this Surface Drill Rig is compact enough to move around different sites while still being large enough to handle heavy-duty drilling tasks. The Blasthole Drilling Rig is the ideal solution for surface drilling needs, and its Air Compressor on Board DTH Drill Rig feature makes it stand out from the competition.

Features:

• Product Name: Drill Rig Machines
• Type: Surface Integrated Drill Rig
• Maximum working pressure: 24 Bar
• Fuel tank capacity: 750 L
• Drill pipe OD: 114/102 Mm
• Recommended DTH hammer size: 5
• Maximum torque: 5,600 N.m
• Additional feature: Air Compressor on Board DTH Drill Rig

Applications:

One of its primary applications is the DTH drill rig for gold mines. The machine's high slope climbing ability of 25 degrees makes it ideal for drilling in steep terrain. Additionally, its 0 - 80 RPM rotation speed ensures efficient drilling of hard rock surfaces, making it an excellent choice for mining operations.

Another application of Glorytek Drills is as a surface integrated drilling rig. Its dimensions of 11,560x2,700x3,560 mm and high strength aluminum alloy feed beam make it suitable for drilling on the surface. The recommended DTH hammer size of 5 also ensures efficient drilling, making it a preferred choice for surface mining operations.

Glorytek Drills is certified by TUV and SGS, ensuring that it meets the highest quality standards. The machine is available for purchase with a minimum order quantity of 1 set, and its factory direct sale price makes it an affordable choice for mining companies.

Standard export packaging and a delivery time of around 30-40 days after advance payment ensures that the product reaches customers on time and in excellent condition.

Support and Services:

We offer a range of services to keep your Drill Rig Machine operating at peak performance, including:

• Regular maintenance and inspections
• Repairs and replacements for damaged or worn parts
• Upgrades and retrofits to improve efficiency and performance
• Training programs for operators and maintenance personnel

Our goal is to provide our customers with the highest level of support and service throughout the life of their Drill Rig Machine. Contact us today to learn more about how we can help you get the most out of your investment.
