DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling

1 set
MOQ
USD7000 per piece
Price
DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Suitable Projects: Water Well Drilling
Power: Air Pressure
Projects: Well Drilling And Hard Rock Drilling
Working Pressure: 0.8-2.1Mpa
Advantage: High Performance, High Wear Resistant
Air Pressure: High Pressure
Regular Sizes: 4'' 5'' 6'' 8'' 10''12'', Etc.
Usage: Mining, Construction, Quarrying
Material: Steel
Shank: DHD, SD, Ql, Mission
Highlight:

Hard Rock Drilling DTH Hammer

,

DHD DTH Hammer

,

QL DTH Hammer

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: ALL SIZE
Payment & Shipping Terms
Packaging Details: Seaworthy package
Delivery Time: 1-2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets per month
Product Description



DTH Hammers

Product Description



A DTH (Down-the-Hole) hammer is a precision-engineered drilling tool that delivers powerful impact force to break rock formations during drilling operations. This hammer, attached to the end of the drill string, uses compressed air to drive a piston, striking the drill bit to create boreholes efficiently. DTH hammers are highly efficient, versatile, and suitable for various drilling applications, including mining, construction, water well drilling, and geotechnical exploration. With robust construction and advanced technology, DTH hammers offer high penetration rates, low maintenance requirements, and reliable performance in challenging geological conditions.



Item
GL345A
GL355K
GL360K
GL380K
Drilling Dia. (ф/mm)
105-130
140-152
165-219
203-350
Hammer Length(mm)
1034
1098
1372
1504
Outside Dia.(ф/mm)
98
124
152
180
Weight(kg)
39
70
92
230
Working Pressure(Mpa)
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air Consumption (M3/Min.)
3.5-15
4.5-18
9-26
9.6-24.8
Torque(N.M)
335
800
1150
1870
Impact Frequency (Times/Min.)
≥800
840-1500
950-1650
1100-1550
Connection 1
API 2-3/8
API 2-3/8
API 3-1/2
API 4 1-2
Connection 2
Ф64-8
Ф84-8
Ф99.5-8
ф128-10

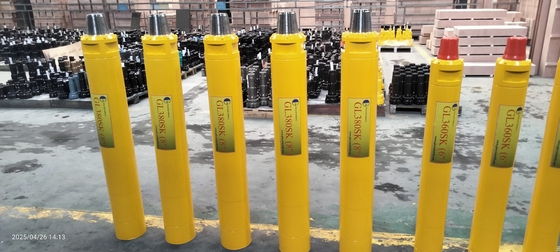

Product Picture





DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling 0

DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling 1





Company Profile



DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling 2

Glorytek Industry (Beijing)Co.,Ltd.,  located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.





DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling 3

DHD QL SD MISSION Shank DTH Hammer Ultimate Solution For Hard Rock Drilling 4



After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ


Q:Are you Manufacture or Factory?
A:Yes we have our own factory.

Q:What the MOQ?
A:1pc.

Q:How to place an order?
A:1) Inform size and model/main usage/quantity

Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
