DTH Hammers
Product Description
A DTH (Down-the-Hole) hammer is a precision-engineered drilling tool that delivers powerful impact force to break rock formations during drilling operations. This hammer, attached to the end of the drill string, uses compressed air to drive a piston, striking the drill bit to create boreholes efficiently. DTH hammers are highly efficient, versatile, and suitable for various drilling applications, including mining, construction, water well drilling, and geotechnical exploration. With robust construction and advanced technology, DTH hammers offer high penetration rates, low maintenance requirements, and reliable performance in challenging geological conditions.
|
Item
|
GL345A
|
GL355K
|
GL360K
|
GL380K
|
|
Drilling Dia. (ф/mm)
|
105-130
|
140-152
|
165-219
|
203-350
|
|
Hammer Length(mm)
|
1034
|
1098
|
1372
|
1504
|
|
Outside Dia.(ф/mm)
|
98
|
124
|
152
|
180
|
|
Weight(kg)
|
39
|
70
|
92
|
230
|
|
Working Pressure(Mpa)
|
0.8-2.1
|
0.8-2.1
|
0.8-2.1
|
0.8-2.1
|
|
Air Consumption (M3/Min.)
|
3.5-15
|
4.5-18
|
9-26
|
9.6-24.8
|
|
Torque(N.M)
|
335
|
800
|
1150
|
1870
|
|
Impact Frequency (Times/Min.)
|
≥800
|
840-1500
|
950-1650
|
1100-1550
|
|
Connection 1
|
API 2-3/8
|
API 2-3/8
|
API 3-1/2
|
API 4 1-2
|
|
Connection 2
|
Ф64-8
|
Ф84-8
|
Ф99.5-8
|
ф128-10
|

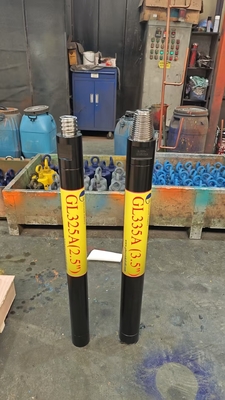

Product Picture
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., based in Beijing, China, specializes in manufacturing and exporting high-quality drilling equipment and parts for mining, water well drilling, exploration, and various engineering projects. Our experienced team of designers and engineers ensures successful project completion according to clients' specific requirements. Our products are widely used in diverse sectors such as oil and gas, hydropower, national defense, and underwater rock drilling.
After-Sales Warranty:
- We offer a free replacement if any quality issues arise.
- Our dedicated after-sales team provides timely assistance whenever needed.
Frequently Asked Questions (FAQ):
Q: Are you a manufacturer or a trading company?
A: We are an integrated corporation specializing in manufacturing and exporting.
Q: Do you supply other drilling tools?
A: Yes, we provide a complete range of drilling tools, including drill pipes, tricone bits, PDC bits, drag bits, and DTH hammers. We also offer drilling equipment like rigs, mud pumps, air compressors, and more.
Q: What payment terms do you accept?
A: Typically, we prefer a 30% advance payment via T/T upon purchase order, with the remaining 70% payment due before shipping. For small orders, we require 100% advance payment via T/T.
Q: What is your delivery time?
A: The delivery time depends on the quantity of your order. Generally, we can deliver within 3-5 days.
Q: How do you ensure product quality?
A: We have a professional QC team that conducts strict inspections and testing for every order before shipping. This ensures the quality of our products.
