8inch 10inch 12inch High Pressure Down The Hole Dth Hammer

1 set
MOQ
USD2000-4000 per set
Price
8inch 10inch 12inch High Pressure Down The Hole Dth Hammer
Features Gallery Product Description Request A Quote
Features
Specifications
Model: GL380SK And Other
Connection: Standard Types
Type: Pneumatic
Shank Series: DHD,Mission,QL,SD
Regular Sizes: 4'' 5'' 6'' 8'' 10''12'', Etc.
Product Type: Hammer
Keyword: DTH Drilling Hammer
Color: Customized
Suitable Rock Formation: Hard, Medium-hard, Soft
Machine Type: Downhole Tools
Hammer Length: 1504mm
Length: 796mm
Power: Air Pressure
Highlight:

8inch DTH Hammers

,

High Pressure DTH Hammers

,

Down The Hole DTH Hammers

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: option
Payment & Shipping Terms
Packaging Details: Seaworthy package
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 piece per month
Product Description



DTH Hammers

Product Description



DTH hammers with DHD, Mission, QL, and SD shanks are essential tools for efficient drilling in hard rock conditions. Here are their key features:

  1. High Efficiency: Designed for optimal energy transfer, these hammers deliver powerful impact, enhancing penetration rates.
  2. Durable Construction: Made from high-quality materials, they resist wear and provide long service life even in demanding environments.
  3. Variety of Shank Designs: Each shank type (DHD, Mission, QL, SD) offers compatibility with various drilling rigs, allowing for flexibility in applications.
  4. Effective Cooling Mechanism: These hammers are engineered to dissipate heat, preventing overheating and extending operational lifespan.
  5. Versatile Applications: Suitable for mining, quarrying, construction, and geothermal drilling, they can handle a range of geological formations.

DTH hammers are widely used in blast hole drilling, mineral exploration, and foundation work, making them invaluable in industries that require reliable and efficient drilling solutions. Their robust design and high performance ensure that operators achieve optimal results in challenging drilling conditions.





Item
GL345A
GL355K
GL360K
GL380K
Drilling Dia. (ф/mm)
105-130
140-152
165-219
203-350
Hammer Length(mm)
1034
1098
1372
1504
Outside Dia.(ф/mm)
98
124
152
180
Weight(kg)
39
70
92
230
Working Pressure(Mpa)
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air Consumption (M3/Min.)
3.5-15
4.5-18
9-26
9.6-24.8
Torque(N.M)
335
800
1150
1870
Impact Frequency (Times/Min.)
≥800
840-1500
950-1650
1100-1550
Connection 1
API 2-3/8
API 2-3/8
API 3-1/2
API 4 1-2
Connection 2
Ф64-8
Ф84-8
Ф99.5-8
ф128-10

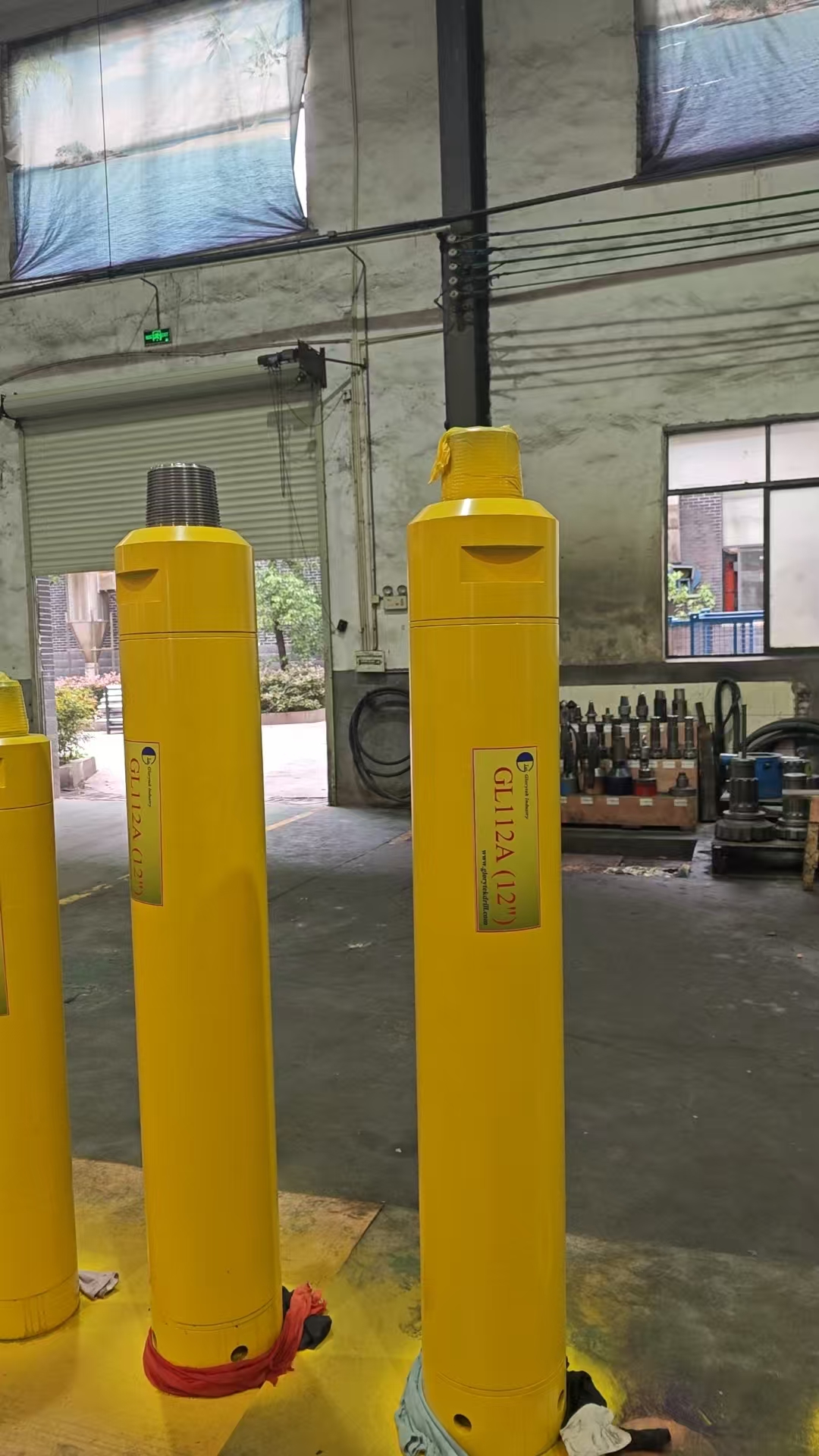

Product Picture





8inch 10inch 12inch High Pressure Down The Hole Dth Hammer 0





Company Profile



8inch 10inch 12inch High Pressure Down The Hole Dth Hammer 1

Glorytek Industry (Beijing)Co.,Ltd.,  located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.





8inch 10inch 12inch High Pressure Down The Hole Dth Hammer 2

8inch 10inch 12inch High Pressure Down The Hole Dth Hammer 3



After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ


Q:Are you Manufacture or Factory?
A:Yes we have our own factory.

Q:What the MOQ?
A:1pc.

Q:How to place an order?
A:1) Inform size and model/main usage/quantity

Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
