Name: Core Drilling Rig for Diamond Core Geotechnical Drilling Rig
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GDL-280
Price: 32000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

diamond core drilling rig

geotechnical drill rig machine

core drill rig with warranty

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Model Number: GDL-280

Payment & Shipping Terms

Delivery Time: 30 work days

Payment Terms: T/T

Gallery

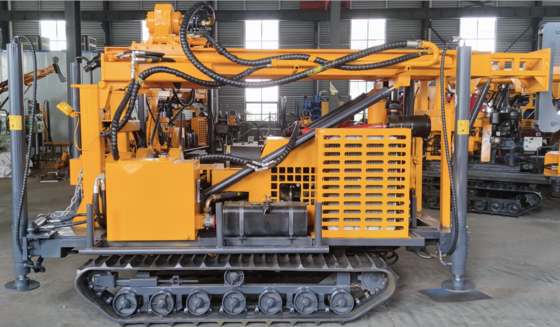

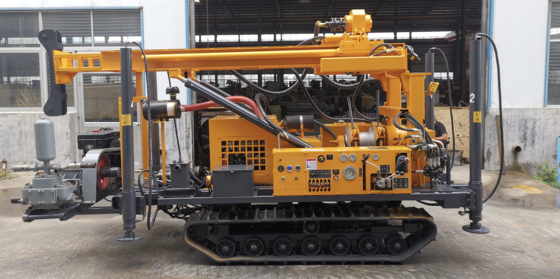

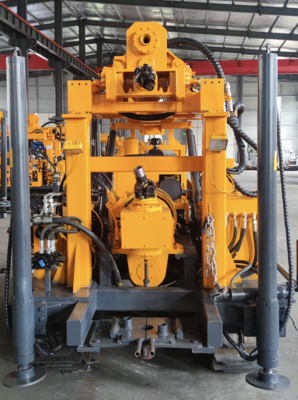

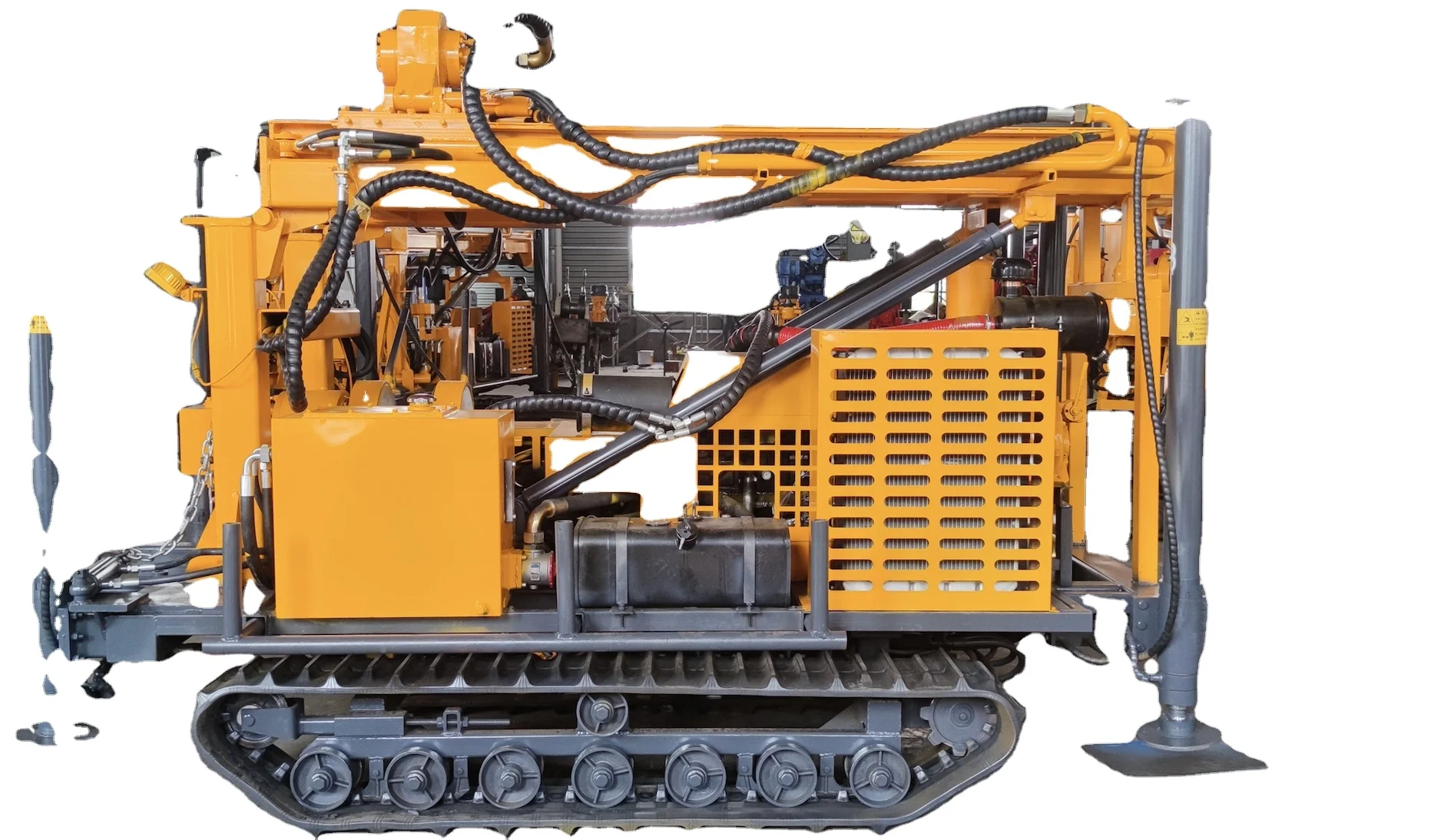

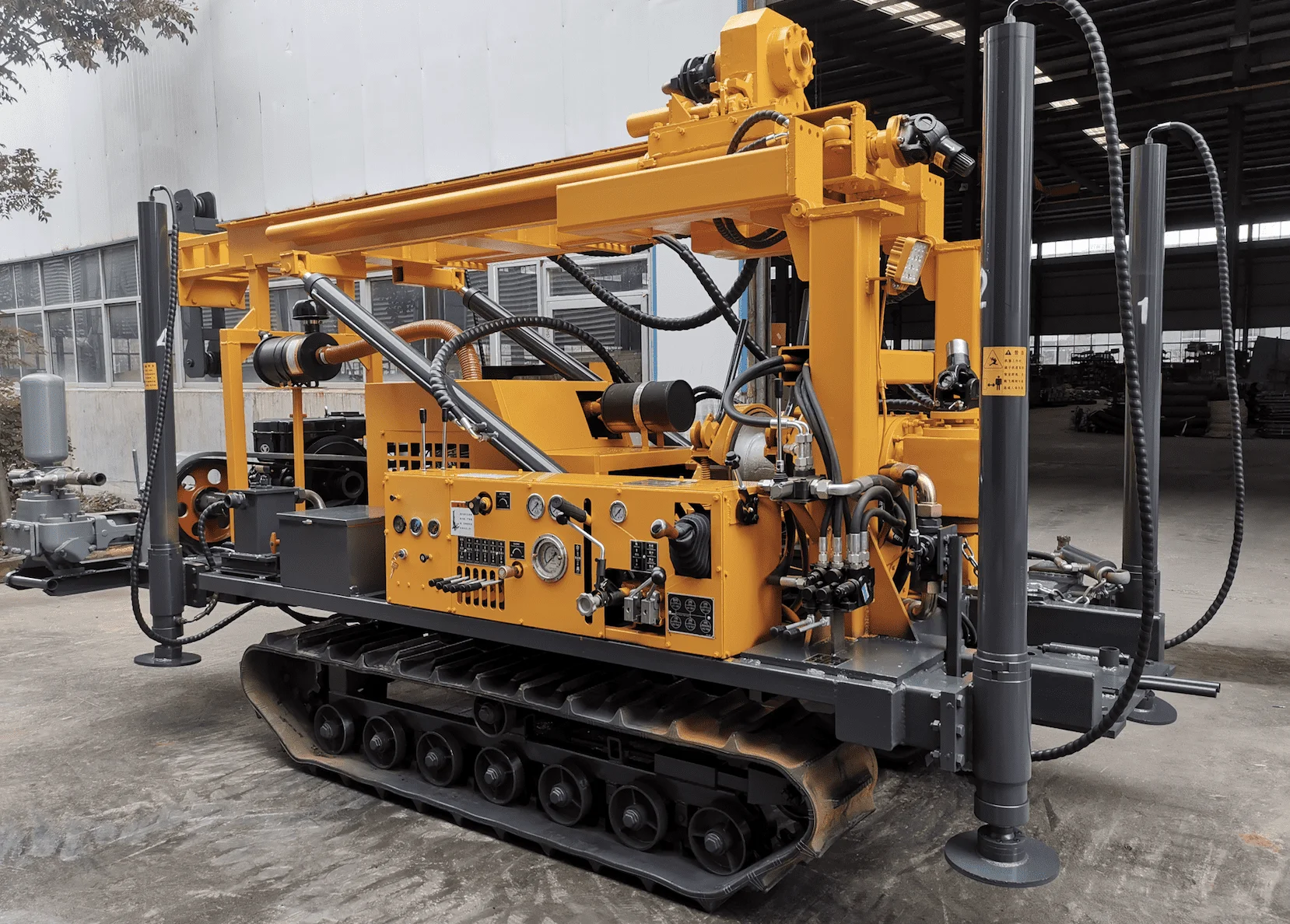

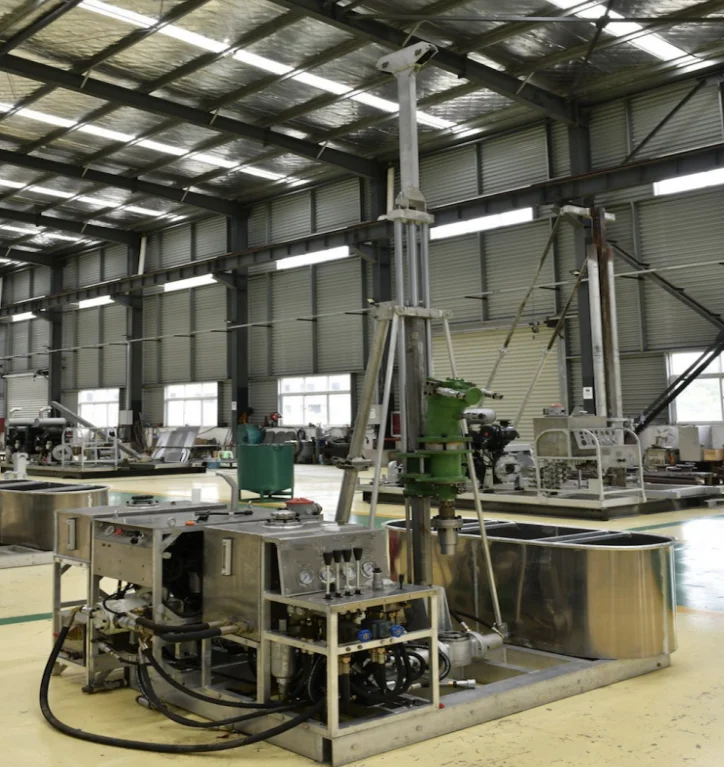

Core Drilling Rig for Diamond Core Geotechnical Drilling Rig

Product Description

ABOUT GDL-280 DRILL RIG:

The drilling rig is a water well drilling equipment that integrates water drilling and air drilling functions. The drilling rig
adopts a vehicle-mounted 525 gearbox, which is sensitive and convenient to switch gears. The transmission efficiency is doubled
compared with hydraulic transmission, and the power consumption is reduced by 35%., which is energy efficienctly. It solves the
difficult problems of air DTH hammer drilling in soil layers and low construction efficiency of rotary drilling rigs for hard rock
layers, gravel and pebble layers.

Main Specification of GDL-350 TOP DRIVE MULTIFUNCTIONAL DRILL RIG

Drilling capacity	Drilling depth for water well	200m(152mm)
	Wireline coring NQ size	300m
	Borehole (Drill bit) dia.	Ø75～Ø220mm
	Drilling angle	90°
Drive head	Lifting capacity	100KN
	Thrusting capacity	50KN
	Rotary speed RPM	Forward:33,63,113,162,192/ 237,303,537,906,1120 r/min
	Rotary speed RPM	Reverse:48/219 r/min
	Max. torque	9800N.m
Power Unit	Engine Model	YN27
Power Unit	Rated power/speed	42KW (58KW Optional)/ (2400r/min)
Mechanical winch capacity		4.5 Ton
Drill pipe	Drill pipe dia.	Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
Drill pipe	Drill pipe length	2000mm
Mud pump(optional)		BW160/ BW200/ BW250
Generator(optional)
Air lubricator (Optional)
Crawler chassis	Walking speed	0～2 km/h
	Climbing angle	Max. 25°~30°
	High leg stoke	1.5M
Dimension	Transport	460015752300mm
Dimension	Working	348016005550mm
Weight with rubber crawler		4200kg
Weight with steel crawler		5200kg

Related Drilling Tools

Company Profile

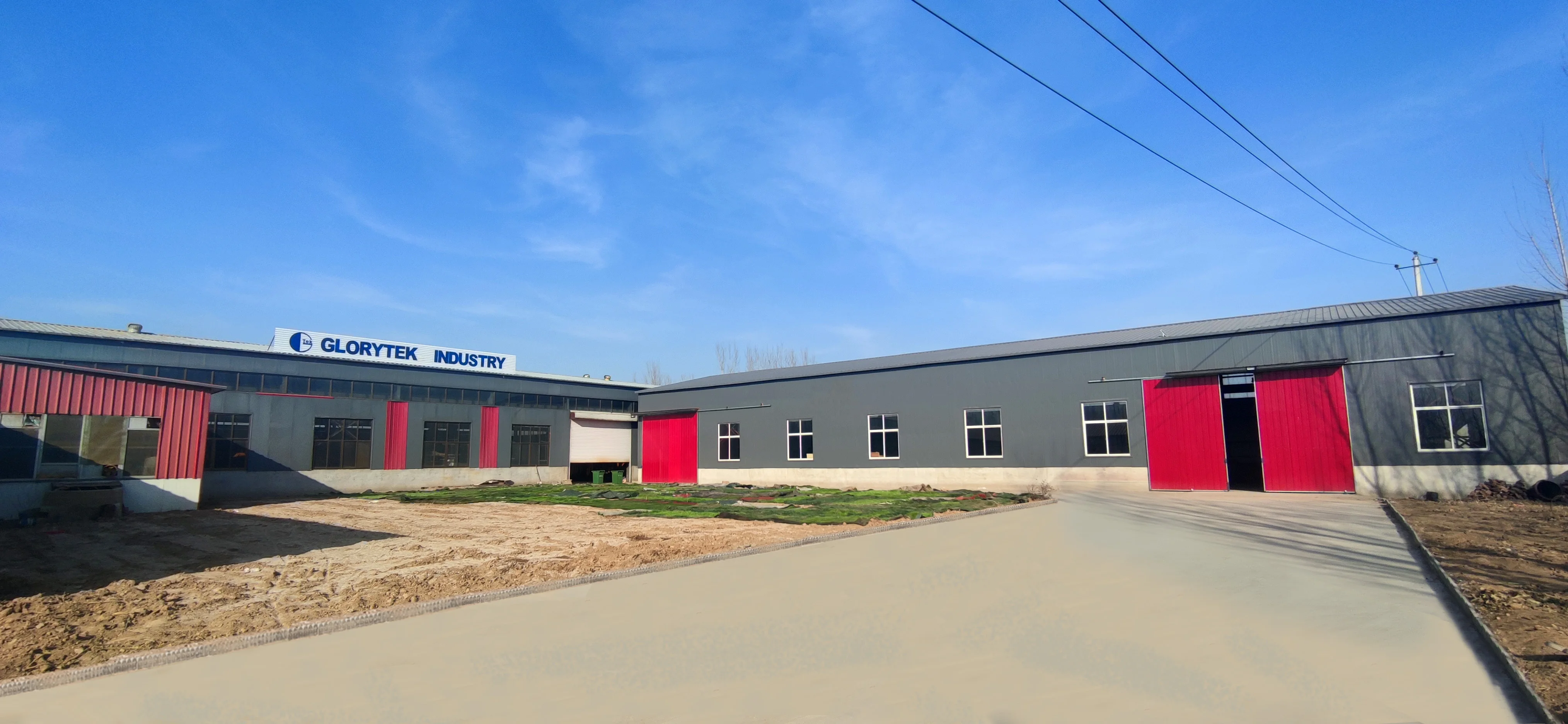

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
