Home /Products/Drill Rig Machines/Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling

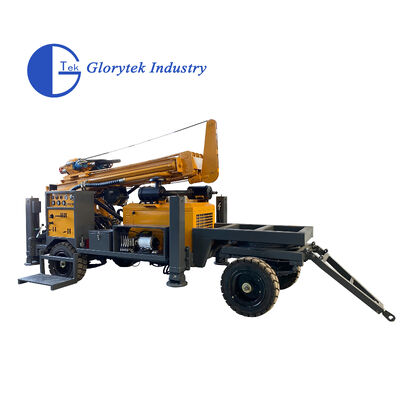

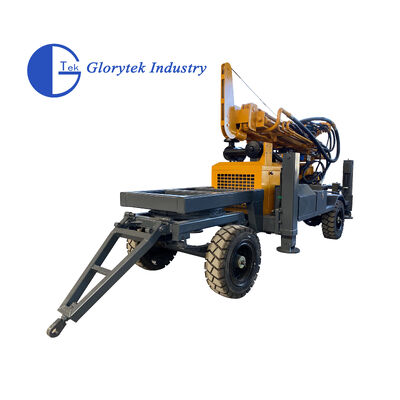

Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling

1
MOQ
Negotiable
Price
Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL260T Well Drilling Equipment Hydraulic Trailer Drill Rig Machines
Keyword: Trailer Drill Rig Machines
Depth: 260m
Hole Dia.: 140-305mm
Drill Pipe: 76mm,89mm
Rotation Speed: 45-70RPM
Lifting Force: 15T
Total Weight: 6500kg
Transportation Dimension: 4000x1850x2300mm
Width Of Loading(m): 2.73m
Highlight:

260m Depth Drill Rig Machine

,

Hydraulic Drive Trailer Mounted Drill Rig

,

70kw Diesel Engine Water Well Drilling Equipment
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL260T
Payment & Shipping Terms
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 40sets/month
Product Description
GL260T Well Drilling Equipment Hydraulic Trailer Drill Rig Machines
This industrial water well drilling equipment is a trailer-mounted drill rig capable of reaching depths up to 260 meters. It is widely used in industrial and agricultural water conservancy projects, including drilling wells, test wells, and other exploration boreholes.
The rig can also meet engineering requirements for reinforcement, loose gravel drilling, and rock formation connections with various engineering specifications. The entire machine features full hydraulic drive for reliable operation and low failure rates.
Key Features
  • Full hydraulic drive system for reliable operation
  • Hydraulic compensation mechanism in drill tower assembly
  • Powered by 70kw diesel engine
  • Maximum drilling depth: 260 meters
  • Hole diameter capacity: up to 12 inches (305mm)
  • Trailer-mounted for easy transportation
Technical Specifications
Parameter Specification
Hole Diameter (mm) 140-305
Drilling Depth (m) 260
Drill Pipe Diameter (mm) 76mm, 89mm
Drill Pipe Length (m) 1.5m, 2.0m, 3.0m
Power (kw) 70
Rotating Torque (N.m) 4000-5300
Dimension (mm) 4000x1850x2300
Weight (T) 6.5
Equipped with Hammer Medium and high air pressure series
Manufacturer Profile
Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling 0
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. We are supported by a highly experienced R&D team and engineers that enable us to complete all assigned projects successfully according to clients' requirements.
Glorytek Drill is one of the most important members of "Sundrill Corporation." Our factory covers an area of 250,000 square meters with construction area of about 150,000 square meters. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, with more than 600 employees. Our products have been exported to more than 60 countries worldwide.
Frequently Asked Questions
What is your payment terms?
We can accept T/T and L/C payments.
What is your MOQ? How long is the delivery time?
Our minimum order quantity is 1 set. Normally for drill rigs, delivery time is about 25-30 days after receiving payment. For drilling tools, delivery time is approximately 3-5 days.
How long is the warranty?
The guarantee period for the main host is one year (excluding quick wear parts).
Can we print our logo on the products?
Yes, we support OEM services and can print your logo on the products.
