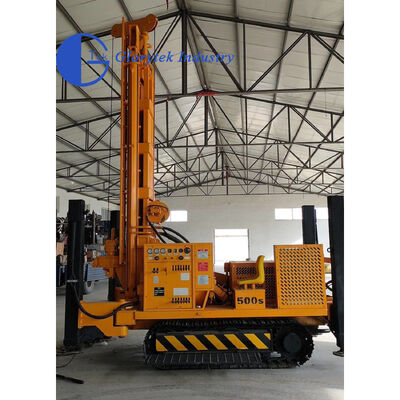

GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation

1
MOQ
Negotiable
Price
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL500S Water Well Drilling Rig
Keyword: Engineering Well Drill Rig Machines
Depth: 500m
Drilling Diameter: 105-325mm
Air Pressure: 1.2-3.5Mpa
Rod Length: 3m,6m
Drill Rod Dia.: 89-102-114mm
Lifting Force: 30t
The Engine: 153KW
Dimension: 5700*1900*2400mm
Highlight:

500m Depth Water Well Drilling Rig

,

153KW Diesel Engine Drill Rig Machine

,

Crawler Mounted Borehole Drilling Machine
Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL500S
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability: 40sets/month
Product Description
GL500S Water Well Drilling Rig for Agricultural Irrigation Engineering
The GL500S crawler water well drilling rig is engineered for demanding applications in geothermal drilling, industrial drilling, and agricultural irrigation projects. This versatile machine offers flexible operation compatibility with air compressors, mud pumps, and foam pumps.
Technical Specifications
Drilling Depth 500 m
Drilling Diameter 105-325 mm
Air Pressure 1.2-3.5 Mpa
Rod Length 3.0 / 6.0 m
Rod Diameter φ89 / φ102 / φ114 mm
Main Shaft Pressure 5 T
Lifting Force 30 T
Total Swing Stroke 6.8 M
Max. Rotary Torque 15000 N.m
Max. Rotary Speed 100 r/min
Secondary Winch Lifting Force 5 T
Jacks Stroke 1.5 M
Moving Speed 2.5 km/h
Climbing Ability 21°
Weight of the Rig 10.28 T
Diesel Engine 153 KW
The Oil Pump Plunger Pump
Overall Dimensions 5700 × 1900 × 2400 MM
Working Condition Loose Layer and Bedrock
Product Gallery
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 0
Customer Visiting
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 1
Manufacturer Profile
GL500S Crawler Mounted Water Well Drilling Rig with 500m Depth and 153KW Diesel Engine for Agricultural Irrigation 2
Glorytek Industry (Beijing) Co., Ltd
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
