5LZ95 HDD Well Drilling 96mm Downhole Mud Motor For Drilling Tool
Downhole mud motor is a positive-displacement motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation.
Downhole mud motor can be used with roller cone bits, diamond bits and other special bits for drilling vertical wells, directional wells and horizontal wells.
| Downhole Mud Motor | 5LZ95×7.0 |
| Recommended Hole Size |
140-150mm (4 1/8”-57/8”) |
| Input Flow Rate | 5-12 L/s |
| Motor Pressure Loss | 3.2 MPa |
| Speed of the Bit | 140-320r/min |
| Working Torque | 710N.m |
| Delay Dynamic Torque | 1240N.m |
| Output Power | 10.5-25Kw |
| Recommend Drilling Weight | 21KN |
| Max. Drilling Weight | 40KN |
| Thread | 2-7/8 REG or Customized (Upper) |
| 2-7/8 REG or Customized (Bottom) |
Downhole Mud Motor is widely used in oil field and mine directional well and horizontal well, cluster Wells and vertical Wells, drilling, deflecting, adjusting azimuth, coring, reaming, side tracking and workover treatment, and also applied in some special operations as compound drilling and traversing, etc.
1. The torque generated by the downhole mud motor is only used to drive the drill bit to reduce the wear of the drill pipe;
2. Special BHA with large build-up rate and steering BHA for continuous control can be provided;
3. The output torque of the downhole mud motor has a linear relationship with the pressure drop generated by the drilling fluid through the hydraulic motor within a certain range;
4. The adoption of hollow rotor cooperating with hard alloy jet nozzle of different sizes increases input flow rate and proppant carrying capacity.
5. The bend angle of downhole mud motor can be adjusted on wellhead. Stabilizers of different shapes and sizes can be changed according to different requirements.

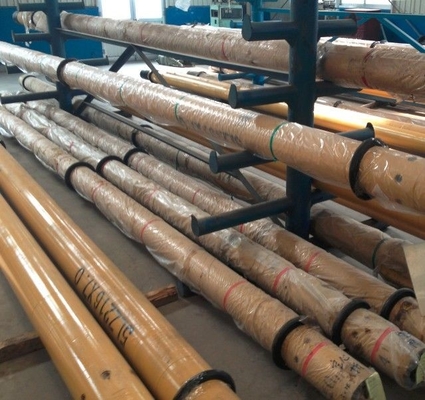

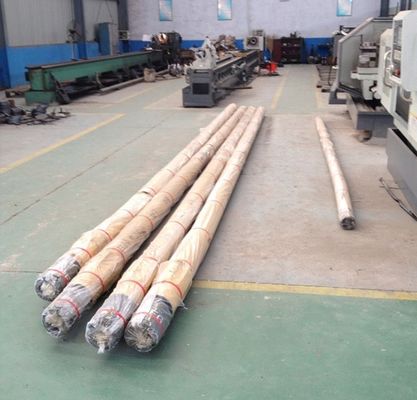

Packing: The downhole mud motor is normally packed by wooden boxes, or steel frame.
Delivery: Normally 10-15 days after your down payment.
Departure port: Tianjin port by sea or Beijing airport by air.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
