Api Oil Downhole Drilling Tools Downhole Mud Motors For Oil And Gas
It is one kind of positive displacement downhole motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation.
Downhole motor is composed of five assemblies of bearing, power section, coupling, anti-drop and bypass valve.
| Model | 5LZ57 | |
| Size | in | 2 3/8-4 3/4 |
| Housing | ° | straight |
| Lobe | 5:6 | |
| Stages | 3 | |
| Pressure | MPa | 6 |
| Flow Rate | L/s | 1.3-2.2-3.2 |
| Bit Speed | Rpm | 230-390-565 |
| Torque | N-m | 240 |
| Max.torque | Nm | 360 |
| Output Power | Kw | 4.4-11 |
| Weight on Bit | KN | 4 |
| Max. Weight on Bit | KN | 11 |
| Connection (REG) | Up Box | 11/2 |
| Bottom Box | 11/2 | |
| Weight of mud motor | Kg | 56 |
| Length of mud motor | Mm | 3222 |
Downhole Mud Motor is mainly used in mining directional well and oil field, and horizontal well, vertical Wells, drilling, and also applied in some special operations as compound drilling and traversing, etc.
The output torque of Downhole Motor has a linear relationship within a certain range with the pressure drop generated by drill fluid through the hydraulic motor.
Structure form includes straight, single bend, double bend, angle adjustable and so on. Heat-resistant temperature range consist of 250°F (120℃) or less than 250℉ (120℃), and between 250 ℉(120℃) to 355℉ (180℃). We can also provide all
specifications including oil based mud resistant motor and saturated saltwater mud resistant motor.
Long type The torque is increased by 30% to 60% than standard ones, mud lubricating transmission shaft, straight, single and double bent.
High flow rate type The adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.

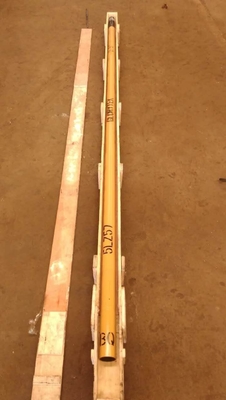

Packing: The downhole mud motor is normally packed by wooden boxes, or steel frame.
Delivery: Normally 10-15 days after your down payment.
Departure port: Tianjin port by sea or Beijing airport by air.

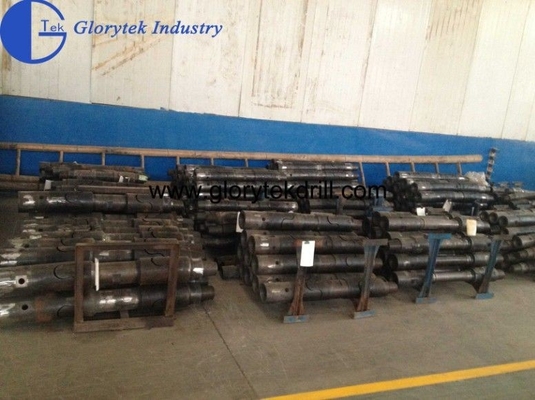

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
